Name: Automatic Faucet Polishing And Buffing Machine With Six Spindle Four Station CNC Control
Brand: Xiamen DingZhu Intelligent Equipment Co.,Ltd
SKU: NC-64
Availability: InStock

Brand Name:	DZ
Model Number:	NC-64
MOQ:	1unit
Price:	Negotiable
Packaging Details:	wood
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China(Mainland)

Certification:

CE ISO

Dimensions (L*W*H):

4400*3400*2900

Machine Power:

35KW

Rated Voltage:

380V

Max. Diameter Of Polishing Wheel:

600mm

Min. Diameter Of Polishing Wheel:

400mm

X-Axis Travel (mm):

1200

Y-Axis Travel (mm):

1100

Z-Axis Travel (mm:

700

U-Axis Travel (mm):

±90°

V-Axis Travel (mm):

±360°

W-Axis Travel (mm):

±360°

Supply Ability:

30 units/per month

Highlight:

CNC Faucet Polishing And Buffing Machine

5.5KW Faucet Polishing And Buffing Machine

Product Description

Technical Parameters

Cloth wheel polishing head

A. The polishing power motor adopts 5.5KW servo motor of Co-trust ,which has powerful polishing pwer ,low energy consumption and long service life .

B. The diameter range of the polishing cloth wheel is 300mm-600mm ,the rage of the width is 30mm-100mm.

C. The worm gear reducer linkage mechanism is adopted to make the four polishing power synchronously .

The workpiece is clamped by a cylinder ,and the tooling can be changed quickly .

Columm lifting mechanism

A. Up and down drive adopts 5.5 KW servo motor drive .

B. Adopt ball screw and linear guide rail drive .

C. Adopt a precise air cylinder counterweight mechanism ,balance the weight trough air pressure ,which is more stable and accurate

Isolation room

A. Steel plaste spraying process .Nice apperance .

B. Sound insulation ,dust isolation ,fire prevention ,explosion protechion and safety protection .

TECHNICAL PARAMETERS

No	Items	Specifications
1	Dimensions (LWH)	300031002900mm
2	Machine Power	17KW
3	Rated Voltage	380V
4	Max. Diameter of polishing wheel	600mm
5	Min. Diameter of polishing wheel	300mm
6	X-Axis travel (mm)	1100
7	Y-Axis travel (mm)	900
8	Z-Axis travel (mm)	700
9	U-Axis travel (mm)	±60°
10	V-Axis travel (mm)	±360°
11	W-Axis travel (mm)	±360°
12	Max.speed X axis	20m/min
13	Max.speed Y axis	20m/min
14	Max.speed Z axis	20m/min
15	Max.speed U axis	30°/sec.
16	Max.speed V axis	30°/sec.
17	Max.speed W axis	30°/sec.

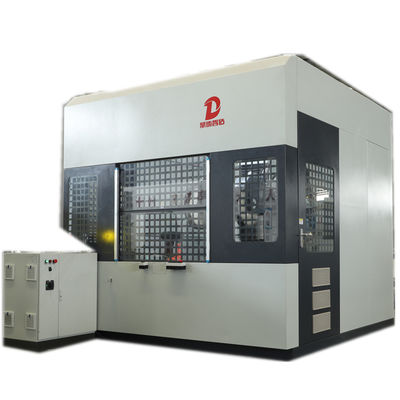

Automatic Faucet Polishing And Buffing Machine With Six Spindle Four Station CNC Control 0

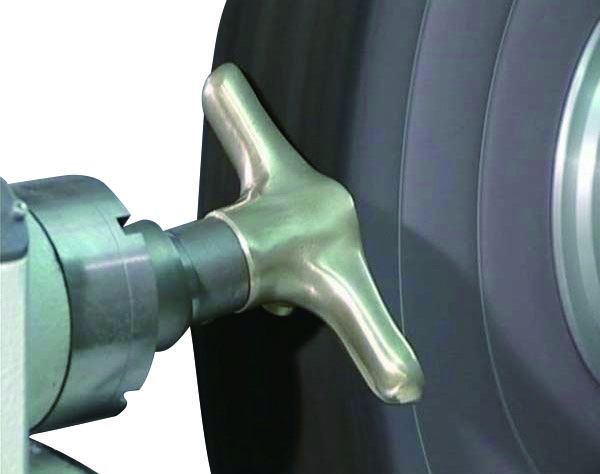

Automatic Faucet Polishing And Buffing Machine With Six Spindle Four Station CNC Control 2
