| Brand Name: | DZ |
| Model Number: | NC-62/64 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

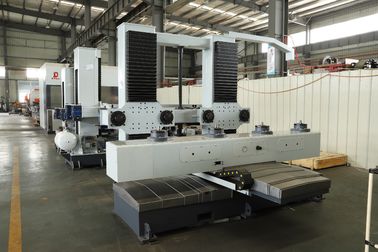

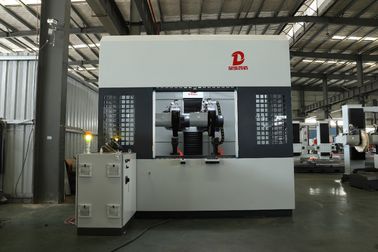

1. Four working stations work simultaneously and with one time programming,the machine can finish the polishing and buffing jobs of four workpieces at the same time.
2. Precision angle polishing program has been adopted which can enhance precision polishing degree on the complex part of the product through programming on setting precision polishing angle.
3. Nested Precise polishing way has been adopted for precise polishing on overall parts of products.
4. All New Design,All new structure
5. High Density Dust Removal Design,automatic lubrication system, ball linear guideway, increase the life the machine dramatically.
| II:Main technical parameters | |||
| # | Item | Parameter | Remarks |
| 1 | Size | 3000×3160×2772(L×W×H) | |
| 2 | Power | 16.25KW | |
| 3 | Rated Voltage | 380V 50Hz | |
| 4 | Max. Polishing Mop Diameter | 600mm | |
| 5 | Min. Polishing Mop Diameter | 400mm | |
| 6 | X Axis Travel | 1100 | |
| 7 | Y Axis Travel | 900 | |
| 8 | Z Axis Travel | 700 | |
| 9 | U Axis Travel | ±60° | |
| 10 | V Axis Travel | ±360° | |
| 11 | Operating Voltage | 380V | |
| Table Size (LxW) | 2740*375mm | ||
| Height from Ground (without fixture) | 880mm | ||
| Jig Rotating Speed | 20RPM | ||
| Station Size/Working Dia (max) | 350mm | ||
| Station Rotational speed Motor | 1500rpm | ||
| III | BASIC EQUIPMENT | ||
| # | Item | Brand | Remark |
| 1 | Motion control system | PROMAX Italy | |
| 2 | Servo motor | PROMAX Italy | |
| 3 | Variable frequency compensation system+Control card | AELTA | |
| 4 | Cloth wheel motor spindle | SIEMENS | |
| 5 | Main low voltage electrical | SCHNEIDER | |
| 6 | Linear guide rail and screw | HIWIN | |
| 7 | Reduction box | Rossi Italy | |
| 8 | Bearing | NSK | |
| 9 | Steering gear of fixture | TAIWAN | |
| 10 | Components clamping | Penumatic | |
| 11 | Table Type | Movable - table moving by the screw rod/ball screw. Driven by servo motor | |
|
|
