Faucets Grinding Robotic Polishing Machine Automatic for Sanitary Ware Fitting
| Brand Name: | DZ |
| Model Number: | HLD-50E |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE
Weight:
4000KG
Voltage:
380V/50Hz
Condition:
100%New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use:
Machining, Deburring, Grinding, Polishing
Type:
Angle Polisher
Warranty:
1 Year
Name:
Grinding Robotic
Function:
Machining, Deburring, Grinding, Polishing
Delivery Time:
30 days
Supply Ability:
30sets / month
Highlight:
CNC Grinding Faucets Robotic Polishing Machine
,Automatic Robotic Polishing Machine
,Sanitary Ware Fitting CNC Polishing Machine
Product Description
Faucets Grinding Robotic Polishing Machine Automatic for Sanitary Ware Fitting
Easy Operation Sanitary Ware Fitting Automatic Grinding Faucets Robotic Polishing Machine
Key Features
- Robotic cell for grinding faucets
- Processes brass casted faucets, zamak levers, zamak faucets, shower heads and sanitary ware
- Compact cell design with reduced installation space
- Customizable layout with various robot brand integration
- Multiple applications: machining, deburring, grinding, polishing, satin finishing
- Customized HMI for easy adjustment
- High adaptability for multiple part geometry processing
- Calibration system for high process repeatability
- Complex geometries processing capability
- Up to 100% surface grinding processing
Technical Characteristics
System Specifications
- FANUC robotic M-20Ia/35M
- Modular programming with self-learning system
- Demonstrator programming with portable handheld device
- Manual mode for simulating workmanship grinding and recording tracks
- Automatic operating mode with pre-set parameters
- Full digital control with program save and recall capability
- Rotary sand belt machine and multi-grade sandpaper grinding in one operation
- High precision and high efficiency performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Working area | 1800 × 2500 mm |
| Feed height | 200 mm |
| Transmission | X/Y rack and pinion, Z ball screw |
| Table structure | T slot with clamp |
| Spindle power | 4.5 KW × 2 |
| Spindle speed | 24,000 r/min |
| Travelling speed | 25 m/min |
| Working speed | 20 m/min |
| Working delicacy | 0.005 mm |
| Repositioning accuracy | 0.05 mm |
| Driving motor | Stepper |
| Control system | DSP/Ncstudio Control System |
| Command code | G Code *.u00 *.mmg *.plt |
| Power (without spindle) | 1500 W |
| Voltage | AC380/50HZ |
| Running environment | Temperature: 0°C ~ 45°C |
| Software | Artcam/Type3, other CAD/CAM |

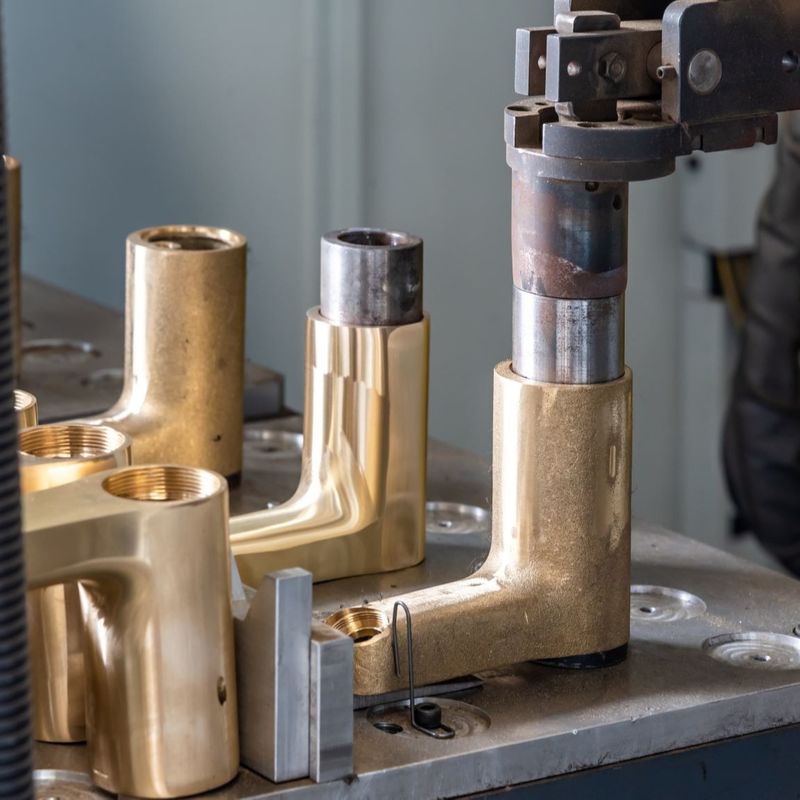

Product Images
Frequently Asked Questions
Q1. Where is your factory located? How can I visit it?
A: Our factory is located in Xiamen city, Fujian province, China. You can fly to Xiamen airport, and we will arrange pickup service.
Q2. Do you produce polishing machines with specific parameters according to samples?
A: Yes, we customize machines based on your samples or technical drawings. Our machines typically include different molds and fixtures for various applications.
Q3. What is your sample service?
A: We provide sample testing services for products that can be processed with our available machines. Customers are responsible for sample shipping costs.
Q4. What is your minimum order quantity?
A: Our standard MOQ is 1 set.
Q5. Do you test all machines before delivery?
A: Yes, we perform 100% testing on all machines before delivery to ensure quality and performance.
Q6. How do you maintain long-term business relationships?
A: We maintain competitive pricing while ensuring quality standards, and we value every customer relationship, treating business partners with respect and sincerity.
