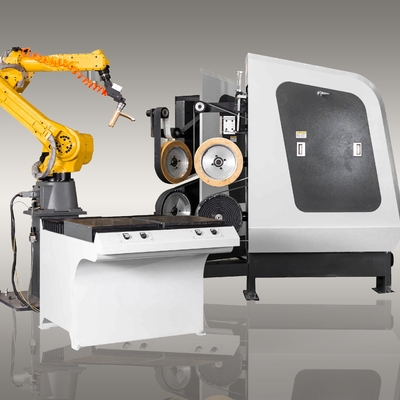

Robotic Surface Arm CNC Grinding Machine Automatic for Sanitary Ware Fitting

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: HLD-50E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wood
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets / month

Detail Information

Weight: 4000KG Voltage: 380V/50Hz
Condition: 100%New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use: Machining, Deburring, Grinding, Polishing Type: Angle Polisher
Warranty: 1 Year Name: Grinding Robotic
Function: Machining, Deburring, Grinding, Polishing
High Light:

Robotic Surface Arm CNC Grinding Machine


Sanitary Ware Fitting CNC Grinding Machine


Automatic CNC Polishing Machine

Product Description

China Supplier Sanitary Ware Fitting CNC Robotic Surface Arm Automatic Grinding Machine

I. Features

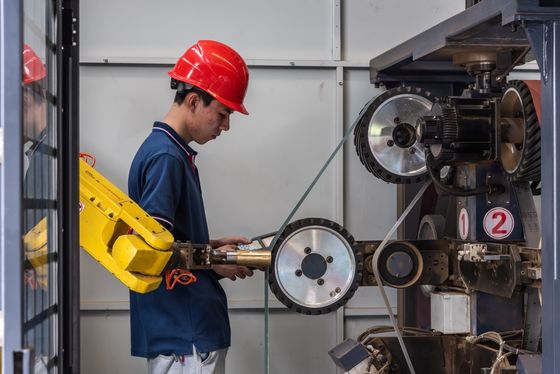

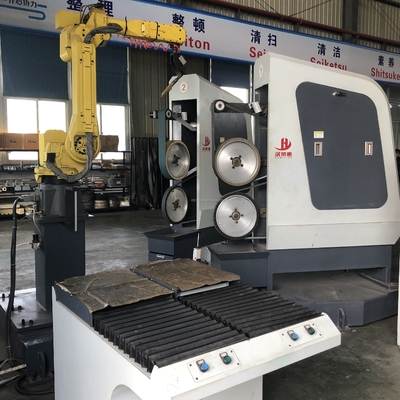

Robotic cell for Grinding Faucets

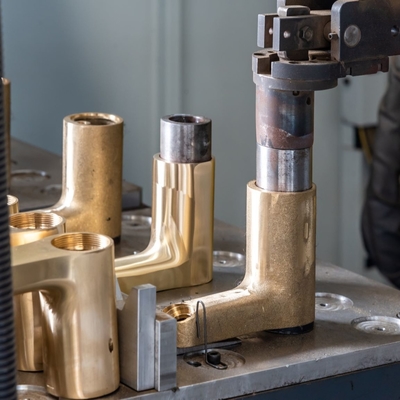

Typical products to process: Brass casted faucets, zamak
levers, zamak faucets, shower heads and any sanitary ware
Compact cell, reduced space required for installation
Customizable Layout: Various robot brand Integration
Multiple applications possible: Machining, Deburring, Grinding
Polishing, Satin
Customized HMI: Easy Adjustment
High Adaptability: Multiple part geometry processing
Calibration System: High Process Repeatability
Complex geometries processing
Up to 100% Surface Grinding Processing

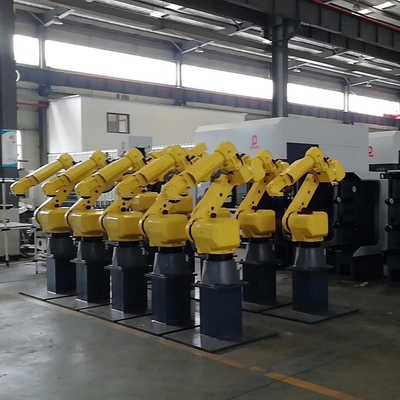

3.1 FUNAC robotic M-20Ia/35M
3.2 Program modular, programming easiness with self-learning system.
3.3 Programming method:demonstrator programming ,with protable handed device, contains manually mode to simulate the workmanship grinding and record the track; automatically operating model is available with pre-settled parameters program.
3.4 Full digital control, the program can be saved and called at any time.
3.5 Rotary sand belt machine and multi - grade sandpaper grinding process can be completed at one time.
3.6 High precision, high efficiency.


Working area 1800*2500mm
Feed height 200mm
Transmission X/Y rack and pinion, Z ball screw
Table structure T slot with clamp
Spindle power 4.5KW*2
Spindle speed 24000r/min
Travelling speed 25m/min
Working speed 20m/min
Working Delicacy 0.005mm
Repositioning Accuracy 0.05mm
Driving Motor Stepper
Control System DSP/Ncstudio Control System
Command Code G Code*.u00*.mmg*.plt
Power(without spindle) 1500W
Voltage AC380/50HZ
Running Environment Temperature:0 degree~45 degree
Software Artcam/Type3,other CAD/CAM


Robotic Surface Arm CNC Grinding Machine Automatic for Sanitary Ware Fitting 0Robotic Surface Arm CNC Grinding Machine Automatic for Sanitary Ware Fitting 1

Robotic Surface Arm CNC Grinding Machine Automatic for Sanitary Ware Fitting 2Robotic Surface Arm CNC Grinding Machine Automatic for Sanitary Ware Fitting 3
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
