robotic polishing machine CNC Automatic Buffing Metal Bench Polishing Machine For Polishing Sanitary Ware Door Handle

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: NC-64
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: wood
Delivery Time: 2weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 units/per month

Detail Information

Dimensions (L*W*H): 4400*3400*2900 Machine Power: 35KW
Rated Voltage: 380V Max. Diameter Of Polishing Wheel: 600mm
Min. Diameter Of Polishing Wheel: 400mm X-Axis Travel (mm): 1200
Y-Axis Travel (mm): 1100 Z-Axis Travel (mm: 700
U-Axis Travel (mm): ±90° V-Axis Travel (mm): ±360°
W-Axis Travel (mm): ±360°
High Light:

6 Axis CNC Polishing Machine

,

Faucet CNC Polishing Machine

,

35kw metal polishing equipment

Product Description

Features of various polishing machines on the market

No



project DingZhu polishing machine Robotic polishing machine Special polishing machine Remarks
1 quality high medium low
2 flexibility Universal Angle, ensure that not deformation does not leakage

Universal Angle, ensure that not deformation does not leakage



Easy to deformation and leakage





3



Wheel flexibility



The wheel is large to ensure the line speed and the wheel is flexible



The wheel is large to ensure the line speed and the wheel is flexible

The wheels are small and not very flexible enough




4 rigidity

Good steel, the wheels can be pressed tightly and polished



Arms are too long, with poor steel performance Good steel, the wheels can be pressed tightly and polished
5 productivity high low higher

6



Add wax



Solid wax, uniform, economical, and environmentally friendly Liquid wax has a high cost, poor effect, and pollutes the equipment and the environment Liquid wax has a high cost, poor effect, and pollutes the equipment and the environment
7 Wheel loss low low high

8



self-compensating Coordinate and line speed compensation effect is good Without this function, it affects the quality Without this function, it affects the quality

9



frock



Small quantity, simple structure, low cost Small quantity, simple structure, low cost The number is very large, complex structure, high cost
10 Programming time Within 2 hours 8 Hours 8 Hours

11



Programming difficulty Simple Complicated Complicated

12



Change the product



15 Minutes 2 Hours 8 Hours Previous production procedures exist
13 safety high medium low



DingZhu polishing machine product characteristics

1. Automatic compensation function of polishing wheel: when the polishing cloth wheel is lost, the system can detect that the torque becomes smaller and realize automatic compensation in all directions.

2. Linear speed compensation: when the outer diameter of the cloth wheel decreases, the system automatically increases the speed compensation linear speed.

3. Solid wax addition: the original solid wax addition can freely set the wax addition time and frequency according to the characteristics of the product, and the polishing wax is not wasted.

4. Full digital control, the program can be saved and called at any time.

5. There are few fixtures, which can be replaced quickly and flexible universal, so as to reduce the loss of polishing cloth wheel.

6. The whole is polished evenly, and the quality of polished parts is consistent without deformation.

A fully automatic polishing machine that can replace 6 polishers to help you break through the bottleneck of die casting polishing

It can effectively improve the following aspects

1. Efficiency; It can be produced in 24 hours.

2. Quality: realize polishing standardization.

3. Save labor cost; The related expenses and management of personnel are controllable.

4. Safety and environmental protection, closed polishing production, equipped with dust suction interface,

5. The cost is controllable, the patented solid wax mechanism, and the cost of consumables is low.

6. Polishing versatility, applicable to various shapes of zinc aluminum copper stainless steel materials.



TECHNICAL PARAMETERS

No Items Specifications
1 Dimensions (L*W*H) 3000*3100*2900mm
2 Machine Power 17KW
3 Rated Voltage 380V
4 Max. Diameter of polishing wheel 600mm
5 Min. Diameter of polishing wheel 400mm
6 X-Axis travel (mm) 1100
7 Y-Axis travel (mm) 900
8 Z-Axis travel (mm) 700
9 U-Axis travel (mm) ±60°
10 V-Axis travel (mm) ±360°
11 W-Axis travel (mm) ±360°
12 Max.speed X axis 20m/min
13 Max.speed Y axis 20m/min
14 Max.speed Z axis 20m/min
15 Max.speed U axis 30°/sec.
16 Max.speed V axis 30°/sec.
17 Max.speed W axis 30°/sec.

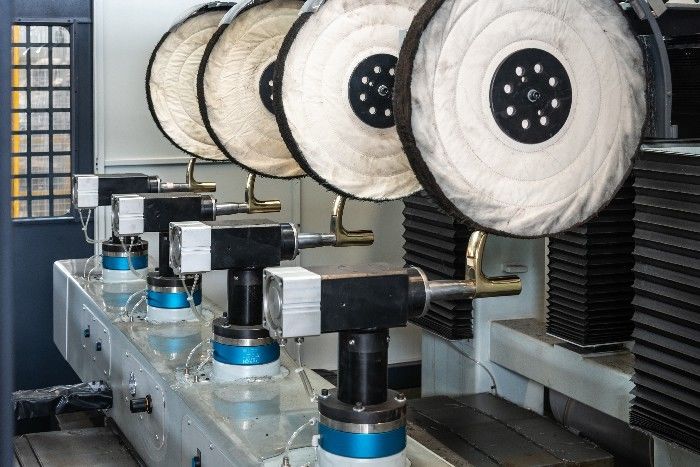

robotic polishing machine CNC Automatic Buffing Metal Bench Polishing Machine For Polishing Sanitary Ware Door Handle 0robotic polishing machine CNC Automatic Buffing Metal Bench Polishing Machine For Polishing Sanitary Ware Door Handle 1



robotic polishing machine CNC Automatic Buffing Metal Bench Polishing Machine For Polishing Sanitary Ware Door Handle 2robotic polishing machine CNC Automatic Buffing Metal Bench Polishing Machine For Polishing Sanitary Ware Door Handle 3
