| Brand Name: | DZ |
| Model Number: | LPDC |
| MOQ: | 1set |
| Price: | Negotiable |
| Packaging Details: | Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation. |
| Payment Terms: | L/C, T/T, Western Union |

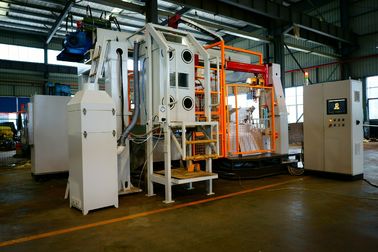

Automatic Low Pressure Die Casting Machine for Brass Alloy and Zinc Alloy products with 2 -manipulators
The LPDC5540-S equipment consisting of main components: casting device, induction furnace, receiving car, graphite bath, die cleaning device,crane, two manipulators, hydraulic and drives system, pneumatic system, riser tube heating system and control system etc.
Applications:
The Low Pressure Die casting machine are mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories.
Advanages:
1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;
2. High capacity ranges 400~450 castings per shift (8hrs);
3.Quick die change flange, 5 mins by munually ;
4. Furnace heating method: gas burner is standard and elctricity for option;
5. Max. die diemension 550*400mm;
6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;
7. Zinc Oxide dust cleaning unit for furnace cleaning;
8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;
9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);
10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)
Technical Parameters:
| Code | Item | Model: LPDC5540-S |
| 1 | External Size: L*W*H (mm) | 6000*6000*3400 |
| 2 | Power Rate (KW) | 180 |
| 3 | Operating Voltage (V) | 380 |
| 4 | Qty. of Manipulator (sets) | 2 |
| 5 | Max. Die Mould Weight (KG) | 180 |
| 6 | Max. Die Mould Dimensions(mm) | 550*400*250 |
| 7 | Power of Electric Furnace(KW) | 2*80 |
| 8 | Furnace Melting Capacity (kg/hr) | 520 |
| 9 | Qty. of Furnace (set) | 1 |
| 10 | Qty. of Mould Cleaning Bin (set) | 1 |
| 11 | Qty. of Feeder (sets) | 2 |
| 12 | Qty. of Grahite Bath (set) | 2 |
| 13 | Qty. of Crane (set) | 1 |
| 14 | Max. Loading of Crane (KG) | 500 |
| 15 | Qty. of Tube (pieces) | 3 |
| 16 | Gas Pressure (KG) | 6 |
| 17 | Water Pressure(KG) | 3 |
| 18 | Max.Temp. of Furnace (℃) | 1250 |
| 19 | Temp.of Cooling Water(℃) | 20±2 |
| 20 | Max. Speed of Manipulator | 35° / Sec. |
| 21 | Max. Clamping Stroke of Mould (mm) | 370 |
| 22 | Angle Range of Mould Soaking (°) | 0~90 |
| 23 | Pressure of Thimble (KG) | 540 |
| 24 | Stroke of Thimble (mm) | 50 |
| 25 | Pressure of Casting (Bar) | 50~1200 |
| Equipment Size: L*W*H |
LD5540-D 6500*6000*3400mm |
LD5540-S 7000*7000*3687mm |
| Total Weight | 13T | |
| Total Power | 125KW | 180KW |
| Operating Voltage | 380V | 380V |
Low Pressure Die Casting Machine Wokring Process
Video:https://www.youtube.com/watch?v=whYkgnMNCFw
|
|
