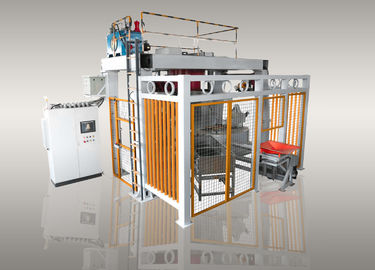

Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet

China Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet supplier
Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet supplier Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet supplier Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet supplier Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet supplier

Large Image :  Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet

Product Details:

Place of Origin: China(mainland)
Brand Name: DZ
Certification: CE
Model Number: 2-Manipulator

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30set/per munth
Contact Now
Detailed Product Description
Condition: New Warranty: 1 Year
Function: Die Casting Brass,aluminum,zinc Alloy Stainless Steel Etc. Name: Low Pressure Die Casting Machine

Full automatic bath fittings faucet bronze pressure die casting machine



Product Description



Low Pressure Casting Machine Introduction



The LPDC5540 equipment consisting of main components: casting device, induction furnace, receiving car, graphite bath, die cleaning device,crane, manipulators, hydraulic and drives system, pneumatic system, riser tube heating system and control system etc.

1.The function and parameters of the touch panel are set by Chinese / English

1.1. Operation Control System: With Siemens PLC control device;

1.2 Program Verstions: CN and EN

1.3 Touch screen panel + Team Viewer and Industrial PC control.

1.4 Alarm and troubles shooting codes presentation, for problems fixing quickly and maintenance works.

2.Manipulator is with servo motor driving unit, linear guilding rail system, to move the manipulator in horizontal and vertical direction: faster, more stable and high precision control performances.

3. Induction furance power is 105KW; Large melt content up to 1800kg, Melting capacity is 350KG/H, stepless power adjustment;With 3*35KW inductors, each inductor is water cooling, water flow detection device on water jackets;

4. Die Cleaning Chamber: shot blasting device (copper powder blasting) for the cleaning of the dies. The dies can be moved to cleaning chamber automatically for cleaning process @ heavy oxidized contaminations condition.



Technical Parameters




2- Manipulators Low Pressure Die Casting Machine Technical Parameters

Code

Item

Specifications
1 Dimension ( L*W*H) 7000*7000*3680
2 Machine Power 180KW
3 Rated Voltage 380V
4 Manipulator Quantity 2
5 Maximum Weight of Die 180KG
6 Maximum Dimension of Die 500*400*250
7 Furnace Power 2*80KW
8 Furnace Melting Capacity 520Kg
9 Furnace Quantity 1
10 Die Cleaning Box Quantity 1
11 Feeder Quantity 1
12 Blackwash Tank Quantity 1
13 Hoist Quantity 1
14 Lift Tube Quantity 2
15 Pneumatic Pressure 6KG
16 Water Pressure 3KG
17 Maximum Furnace Temperature 1250℃
18 Cooling Water Temperature 20±2℃
19 Maximum Speed of Manipulator 9R/Min.
20 Maximum Die Clamping Stroke 370mm
21 Die Bath Angle 0-90º
22 Ejector Pin Pressure 540KG
23 Ejector Pin Stroke 40mm
24 Pouring Pressure 50-1200bar
25 Maximum Lift Weight of Hoist 500kg

Layout

PLC control system



Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet



Manipulator



Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet



Graphite Bath​



Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet



Die Cleaning Chamber​



Full Automatic Bronze Casting Machine PLC Control For Bath Fittings / Faucet

Receiving car​
