High-Yield Automatic Pouring Low Pressure Casting Machine Transforms All Copper Products Manufacturing
| Brand Name: | DZ |
| MOQ: | 1 |
| Packaging Details: | Packing in wooden cases suitable for sea transportation |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Mold Life:
100,000 Shots
Mould Cooling:
10 Routes
Hydraulic System:
Servo System And Convential
Pneumatic Pressure:
6KG
Casting Method:
Low Pressure Die Casting
Operation Process:
Automatic
Furnace Capacity:
500,800,1000 Kg
Casting Speed:
1-2 Molds Per Minute
Rated Voltage:
380V
Control System:
PLC
Hydraulic Power:
8.7KW
Voltage:
380V
Feature:
Energy Saving And High Efficiency
Melting Capacity:
700 KG/H
Type:
Low Pressure Foundry Equipment
Delivery Time:
90 Days
Highlight:
automatic low pressure casting machine
,high-yield copper casting machine
,low pressure die casting machine for copper
Product Description

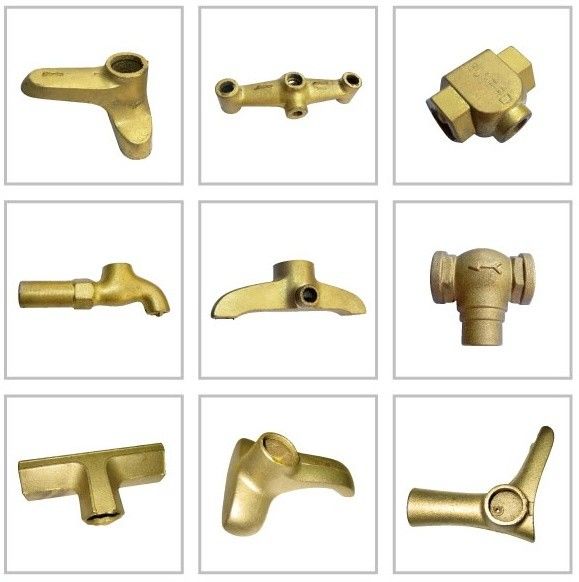

Low Pressure Die Casting Machines For Brass For The Casting Of Sanitary Fittings, Faucets, Water Meter Or Valve Bodies.
CHARACTERISTIC
1) Capacity per shift (8 hours): approx. 380 castings
2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.
3) Features

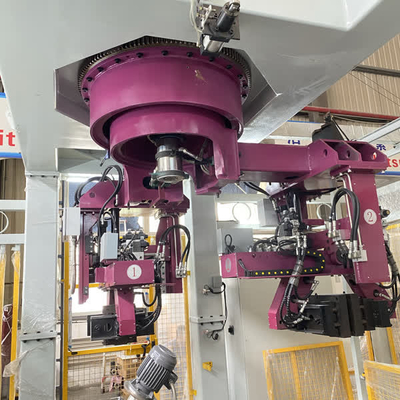

A. manipulator on a linear guiding device；
B. Manually setting of the cores；
C. Max die dimensions: 550 x400 mm；
D. Quick die change flanges；
E. Simple furnace control electrics；
F. Die cooling and coating in a blackwash bath；
