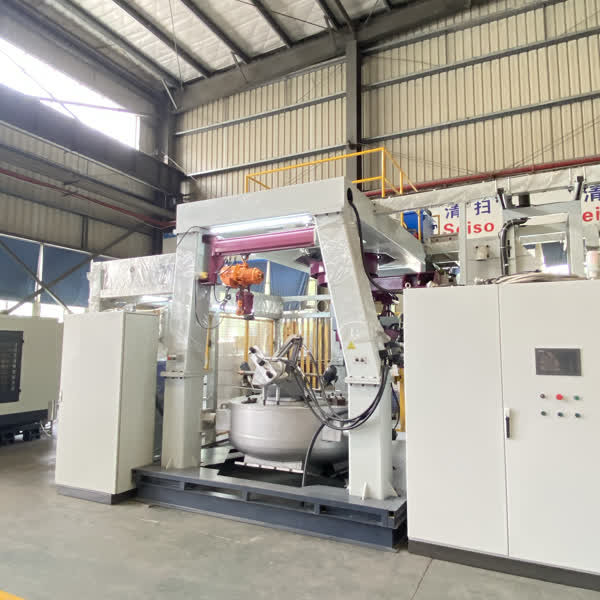

Name: Automated CNC Low Pressure Die Casting Systems For Industrial Production
Brand: Xiamen DingZhu Intelligent Equipment Co.,Ltd
SKU: Xiamen
Availability: InStock

Brand Name:	Xiamen Dingzhu
Model Number:	Xiamen
MOQ:	1set
Price:	Negotiable
Packaging Details:	wood
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Supply Ability:

90 sets/per month

Highlight:

Industrial Production Die Casting Systems

CNC Low Pressure Die Casting Systems

Product Description

Product descriptions from the supplier

_	Items	RD-5040-S (Standard type)	RD-8050-S (Larger type)
Basic Parameter	Machine size	700060004200mm	740060004350mm
	Total Weight	20T	22T
	Total power	180KW	180KW
	Voltage	380V	380V
Die	Max. Die dimensions	600400240mm	800500240mm
	Max. Die thickness	2*120mm	2*120mm
	Max. Die Opening Stroke	372mm	372mm
	Max. Die Weight	250KG	500KG
	Max.Force of die closing	2400KG	4000KG
	Max. Force Of Ejector	1000KG	1000KG
	Max.Die Ejector Stroke	48mm	48mm
Furnace	Melting rate	680KG/H	680KG/H
	Capacity	2800KG	2800KG
	Inductor	3*55KW	3*35KW
Hydraulic	Motor power	12KW	8.7KW
	Rated Pressure	8Mpa	8Mpa
	Hydraulic Fluid Temp.	≤55 ℃	≤55 ℃

Product Description

Product description


In low pressure casting process molten metal is filled directly from the holding or casting furnace into the die or sand mould from below, with low turbulence and with an absolutely controlled filled casting process. Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.
This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a noticeably short die changing time.

Company Profile

00:24

01:00

Xiamen Dingzhu Intelligent Equipment Co., Ltd. (est. 2016) is a global leader in intelligent manufacturing solutions specializing in low-pressure die casting, grinding, polishing, and automation systems. Our core offerings include automatic LPDC machines, robotic cell grinding/polishing systems, CNC polishing equipment, and turnkey production lines, serving industries such as water meter casting, door locks, auto parts, and precision deburring. With exports to 30+ countries (Turkey, India, Mexico, USA, Southeast Asia, etc.) and partnerships with top brands like Kohler and TOTO, we empower manufacturers with safer, greener, and smarter production through proprietary technologies like dynamic pressure control and multi-axis robotic algorithms. 50+ patents and a 60+ R&D team drive innovations in low-pressure casting and robotic automation. We deliver end-to-end solutions—from mold design (CAE simulation) to lean factory layouts—backed by 24/7 global support, localized service centers (India, Turkey, Egypt), and 48-hour on-site assistance. CE-certified with strict material inspection and a 1-year warranty, we prioritize eco-friendly practices and operational excellence. Committed to "liberating workers' hands," Dingzhu envisions leading the future of intelligent automation, helping clients achieve productivity breakthroughs and sustainable growth. Partner with us to transform your manufacturing with cutting-edge technology and world-class expertise.

Production Process

Exhibition

Certifications

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q: Could you please arrange the installation and commissioning?

A: Yes, we could and the buyer pay the charge.

Q: Could you arrange the production education?

A: Yes, we could and the buyer pay the charge.

Q: How long the guarantee?

A: One year and charge for repair the whole life.

Q: How about the lead time and delivery time of my order?

A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
