Detail Information
Channel Induction Furnace:	1 Inductor With Two Channels In W-shape	Furnace Capacity:	2800KG
Melting Capacity:	700 KG/H	Inductors:	2*80 KW
Max. Speed Of Manipulator (S):	35° / S	Total Weight:	24T
Total Power:	180KW	Operating Voltage:	380V
High Light:	Kitchen Faucet Die Casting Machine,Bathroom Faucet Die Casting Machine ,Die Casting Machine for Water Meter

Product Description

Pneumatic Core Shooter Machine Core Blower For Sand Casting Gravity Die Casting Machine Low Pressure Die Casting Machine

380V 180KW Low Pressure Die Casting Machine For Brass Valve Body

Low Pressure Die Casting Machines For Brass For The Casting Of Sanitary Fittings, Faucets, Water Meter Or Valve Bodies.

I. ADVANTAGES

1. Cost-efficient production

1.1. Multiple dies

1.2. Reduced melting loss

1.3. Increased yield (less circulating material)

1.4. One-man operation

1.5. Cost savings in subsequent stages of manufacture

1.6. For robot grinding low pressure die casting is a must

2. Humanization of the workstation

2.1. Ergonomic design of the workstation

2.2. Minimizing of smoke, heat, noise and danger of accidents

3. High quality castings and high-precision repeatability

3.1. Automated casting

3.2. Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube

II. CHARACTERISTIC

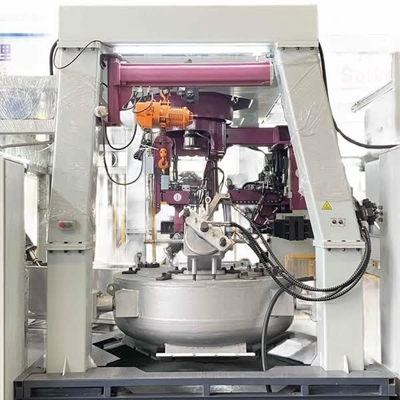

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.

1) Capacity per shift (8 hours): approx. 380 castings

2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Features

A. manipulator on a linear guiding device；

B. Manually setting of the cores；

C. Max die dimensions: 550 x400 mm；

D. Quick die change flanges；

E. Simple furnace control electrics；

F. Die cooling and coating in a blackwash bath；

III. EQUIPMENT STRUCTURE

The equipment consisting of main components:

Manipulator
Casting device
Induction furnace
Unloading device
Graphite bath
Die cleaning device
Crane
Manipulators
Hydraulic and drives system
Pneumatic system
Riser tube heating system
Combination of ingot loader and scrap loader
Control system
Combination of ingot loader and scrap loader
Other options are available on request

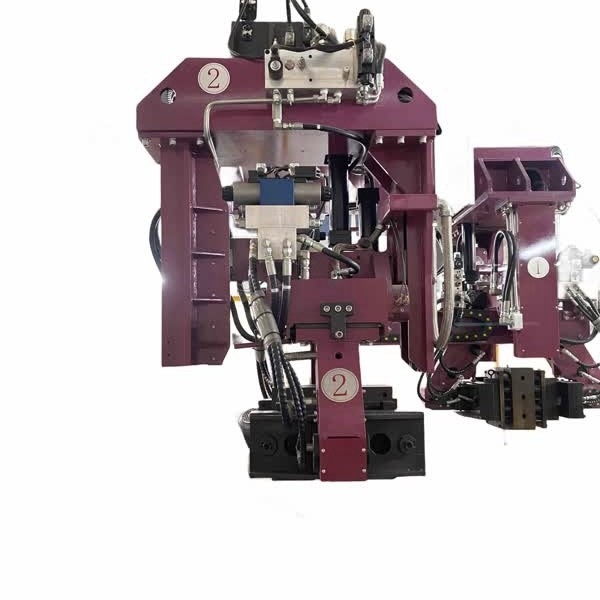

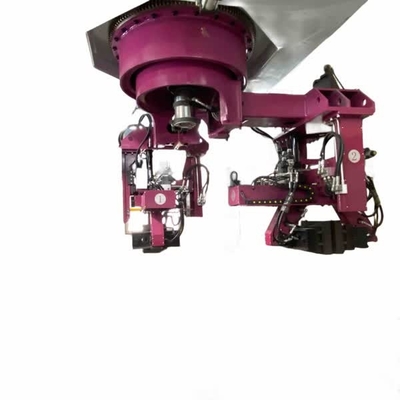

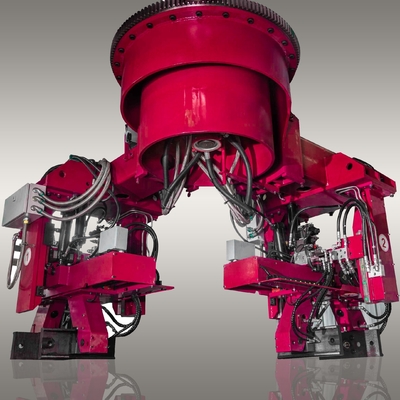

3.1 Manipulator

LPDC Gravity Die Casting Machine For Bathroom Brass Faucet And Zinc Handle 0

LPDC Gravity Die Casting Machine For Bathroom Brass Faucet And Zinc Handle 1

3.2 COMBINATION OF INGOT LOADER AND RECYCLING MATERIAL LOADER .

LPDC Gravity Die Casting Machine For Bathroom Brass Faucet And Zinc Handle 2

LPDC Gravity Die Casting Machine For Bathroom Brass Faucet And Zinc Handle 3

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.

1) Capacity per shift (8 hours): approx. 380 castings

2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Features

A. manipulator on a linear guiding device；

B. Manually setting of the cores；

C. Max die dimensions: 550 x400 mm；

D. Quick die change flanges；

E. Simple furnace control electrics；

F. Die cooling and coating in a blackwash bath；
