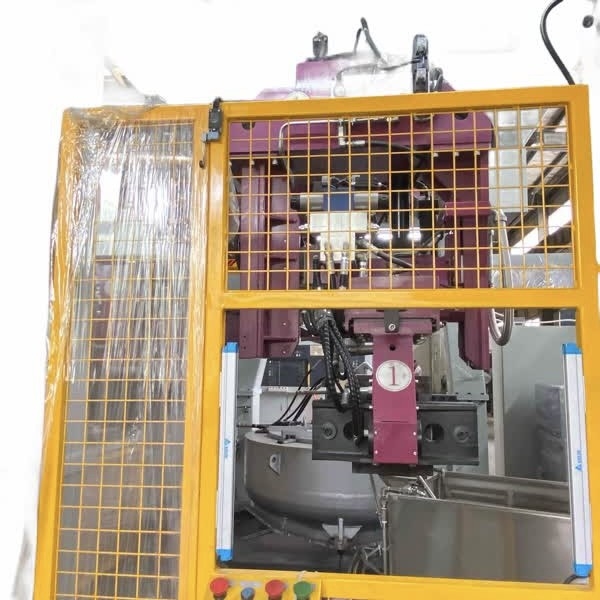

48mm Max. Die Ejector Stroke Low Pressure Automatic Die Casting Machine For Faucets Industry

Product Description:

48mm Max. Die Ejector Stroke Low Pressure Automatic Die Casting Machine For Faucets Industry

Low Pressure Die Casting Machine is designed to provide a cost-effective and reliable solution for metal die casting. It utilizes a low pressure die casting process, which eliminates the need for costly and complicated high-pressure die casting machines. This die casting machine can achieve a maximum die weight of 250kg and a maximum die dimension of 600*400*240mm. It also features a total weight of 20T and an air pressure compressed air consumption of 18m³/H. In addition, it is powered by a 12KW hydraulic motor, making it an ideal choice for metal die casting applications. With its low pressure die casting process, this machine is able to produce accurate and high quality metal die casting components without the need for expensive high-pressure machinery.

Features:

• Low Pressure Die Casting Machine
• Capacity per shift(8 hours):600 castings
• Graphite and die with temperature display and storage
• Drive by servo motor,with high precise,stable and efficiency performance
• Metal Die Casting Machine
• Low Pressure Die Casting Process

Technical Parameters:

Applications:

DZ Low Pressure Die Casting Machine(RD-5040-S) is a highly automated and efficient casting machine, made in CHINA and certified by CE ISO. It can be used to cast aluminum, magnesium and other  alloy materials with a maximum hydraulic rated pressure of 8Mpa and compressed air pressure of 0.5-0.6Mpa. The cooling system flow is between ≥300L/Min and ≤600L/Min, and the gas pressure is 0.5bar. The water temperature of the cooling system should be 25-30℃.

Support and Services:

We provide comprehensive technical support and services for Low Pressure Die Casting Machine. Our experienced technical team is ready to assist you with product installation, commissioning, preventive maintenance and repair services. We can also provide spare parts and provide onsite installation and service for special cases.

We have a team of experienced engineers who can provide onsite training to ensure that customers can operate the Low Pressure Die Casting Machine efficiently and safely. We provide technical support on the phone or by email to answer questions and troubleshoot any problems that may occur.

We also offer preventive maintenance services to keep your Low Pressure Die Casting Machine running optimally. Our preventive maintenance plan includes tests, evaluations, and adjustments to ensure the machine has the best performance. We also provide regular maintenance services to keep your machine in good working order and extend its service life.

Packing and Shipping:

The Low Pressure Die Casting Machine will be securely packaged using styrofoam and other cushioning materials. The package will be marked for proper identification, and any special shipping instructions will be included. The shipping container will be sealed and secured with proper hardware to protect the Low Pressure Die Casting Machine from damage. The Low Pressure Die Casting Machine will then be shipped using an appropriate shipping method, such as air, sea, or ground, depending on the customer's preferences.
