Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE ISO |
| Model Number: | RD-5040-S |
|
Detail Information |
|||
| Max. Force Of Die Closing: | 2400kg | Gas Pressure: | 0.5bar |
|---|---|---|---|
| Cooling System Flow: | ≥400L/Min ≤600L/Min | Melting Rate: | 350KG/H |
| Max. Die Dimension: | 600*400*240mm | Hydraulic Rated Pressure: | 8Mpa |
| Max. Force Of Ejector: | 500kg | Equipment Size:L*W*H: | 5200*5000*3600mm |
| High Light: | Compressed Metal Die Casting Machine,1800KG Capacity Die Casting Machine |
||
Product Description

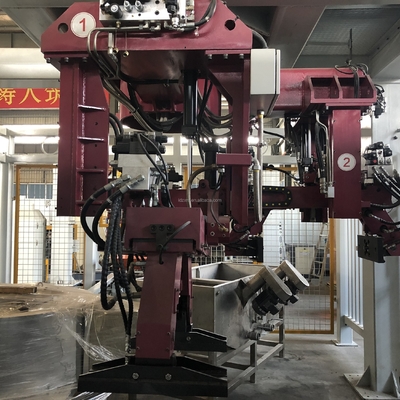

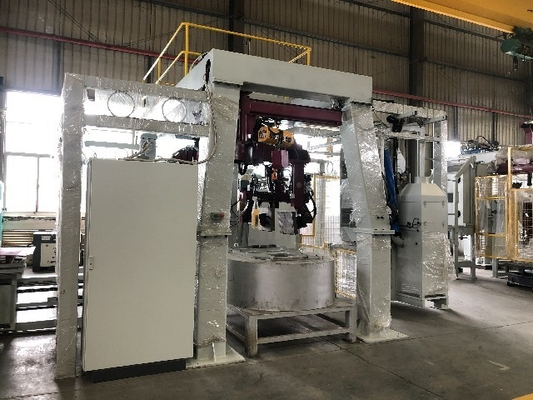

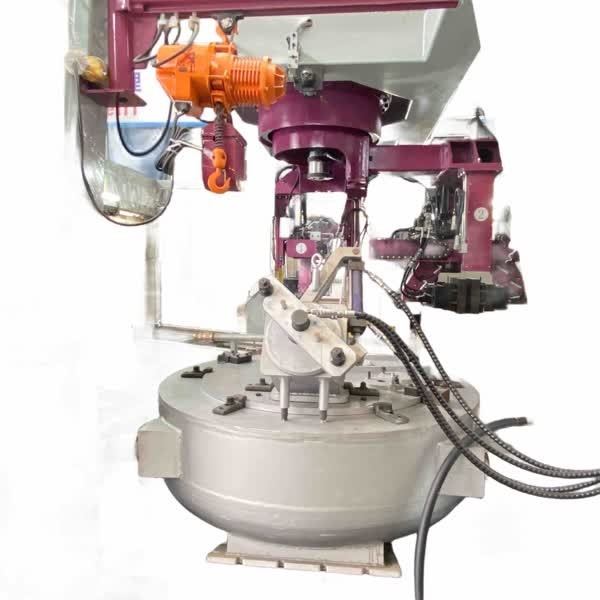

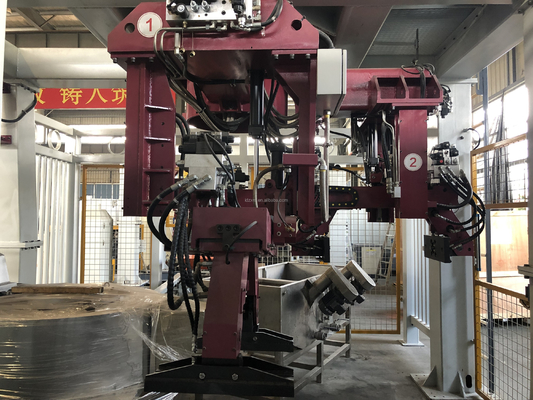

Low Pressure Die Casting Machine is a metal die casting machine that offers precision and reliability. It is widely used in various industries due to its high performance and stability. It features a cooling system flow of 400L/Min to 600L/Min, 3*35KW furnace inductors, a hydraulic fluid temperature of 55℃ or below, a max. force of die closing of 2400kg and a furnace capacity of 1800KG. This Low Pressure Die Casting Machine is equipped with advanced technology, allowing it to produce high-quality metal parts with precise dimensions and superior surface finish. It is highly efficient and cost-effective as it can be easily operated and maintained. Low Pressure Die Casting Machine is an ideal choice for a wide range of applications in various industries.
| Parameter | Value |
|---|---|
| Low Pressure Die Casting Machine | |
| Gas Pressure | 0.5bar |
| Cooling System Water PH Value | 7~8.5 |
| Max. Force of Ejector | 500kg |
| Max. Die Weight | 200Kg |
| Melting Rate | 350KG/H |
| Hydraulic Rated Pressure | 8Mpa |
| Equipment Size:L*W*H | 5200*5000*3600mm |
| Cooling System Water Temperature | 20±2℃ |
| Max. Die Ejector Stroke | 48mm |
| Air Pressure Compressed Air Consumption | 15m³/H |
The Low Pressure Die Casting Machine, also known as Low Pressure Casting Machine or Automatic Casting Machine, is a must-have production equipment for many industrial and commercial enterprises. Brand Name DZ Model Number RD-5040-S with CE ISO certification, designed and manufactured in CHINA, is a popular choice for many manufactures. The machine is equipped with a Max. Die Ejector Stroke of up to 48mm, and runs on 380V voltage. It has Max. Force of Ejector of 500kg and Max. Force of Die Closing of 2400kg, with a Cooling System Water Temperature of 20±2℃. Low Pressure Die Casting Machine is an efficient and reliable piece of equipment, making it ideal for various metal casting production needs.
We offer comprehensive technical support and service for our Low Pressure Die Casting Machine. Our knowledgeable and experienced technicians are available to assist with installation and maintenance of your machine. We also offer preventative maintenance programs to ensure that your machine is running optimally, and can provide spare parts and replacements when needed.
If you have any questions or need assistance with your Low Pressure Die Casting Machine, please don't hesitate to contact us. Our team is always happy to help.
The Low Pressure Die Casting Machine will be packaged in a wooden box to protect it from any damage during transport. The box will be lined with foam to ensure that the machine is secure during transit. A packing list will be included in the box for easy identification of the contents.
The machine will be shipped via a reliable courier service. The delivery service will provide real-time tracking of the shipment and insurance in the event of any damages during transit.
Upon delivery, the customer should inspect the machine for any damages or defects. If any damages or defects are found, the customer should contact the supplier immediately.
