Low Pressure Die Casting Machine
>
High Efficiency Low Pressure Die Casting Machine For Mechanical Parts And Assemblies
Detail Information
Place of Origin:
CHINA
Certification:
CE ISO
Cooling System Flow:
≥400L/Min ≤600L/Min
Hydraulic Fluid Temperature:
≤55℃
Max. Die Ejector Stroke:
48mm
Hydraulic Rated Pressure:
8Mpa
Furnace Capacity:
1800KG
Hydraulic Motor Power:
8.7KW
Furnace Inductors:
3*35KW
Max. Die Opening Stroke:
370mm
Delivery Time:
20 work days
Supply Ability:
3 sets per month
Highlight:

Mechanical Parts Die Casting Machine

,

8.7KW Die Casting Machine

Product Description

Low Pressure Die Casting Machine With High Efficiency,Use Mechanical Parts And Assemblies For Machinery.

Product Description:

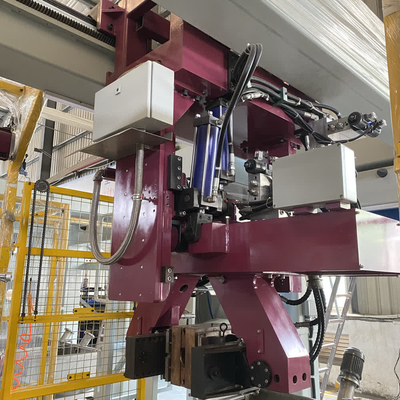

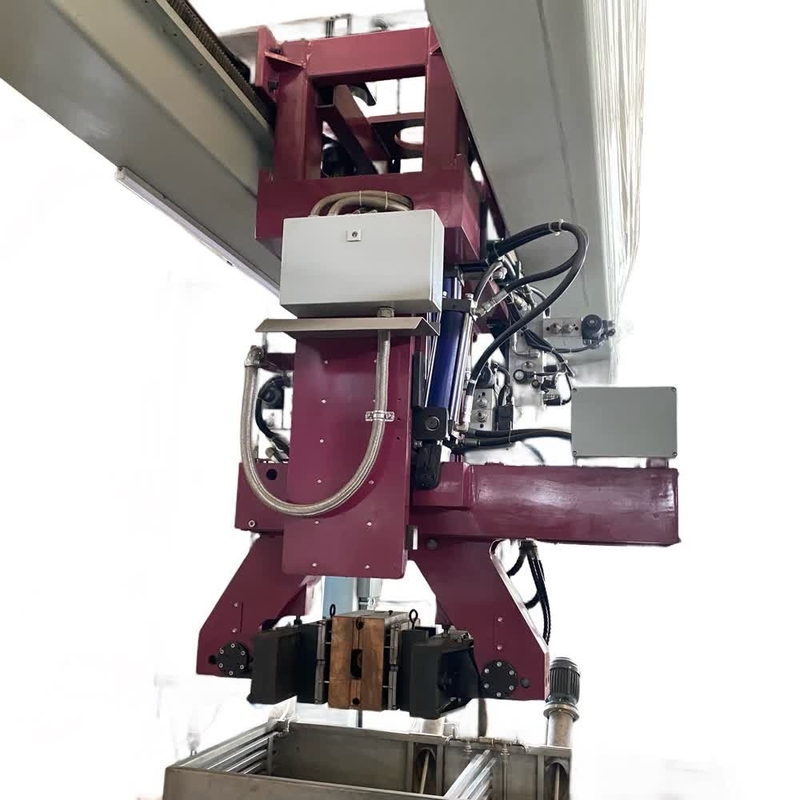

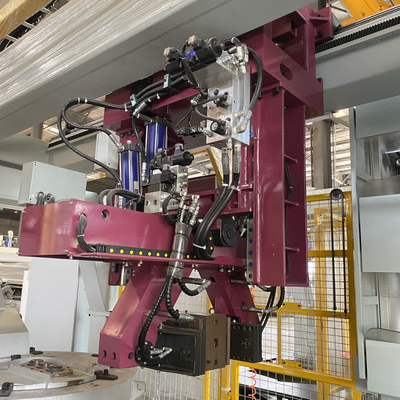

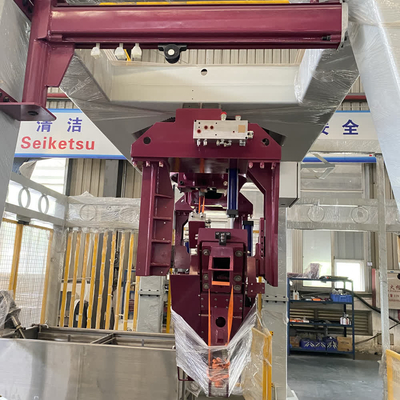

High Efficiency Low Pressure Die Casting Machine For Mechanical Parts And Assemblies 0High Efficiency Low Pressure Die Casting Machine For Mechanical Parts And Assemblies 1High Efficiency Low Pressure Die Casting Machine For Mechanical Parts And Assemblies 2High Efficiency Low Pressure Die Casting Machine For Mechanical Parts And Assemblies 3

Features:

  • Product Name: Low Pressure Die Casting Machine
  • Hydraulic Rated Pressure: 8Mpa
  • Max. Die Ejector Stroke: 48mm
  • Cooling System Flow: ≥400L/Min ≤600L/Min
  • Equipment Size: L*W*H: 5200*5000*3600mm
  • Total Weight: 13T
  • Keywords: Pressure Die Casting Machine, Automatic Casting Machine, Low Pressure Casting Machine


Technical Parameters:

Properties Parameters
Equipment Size:L*W*H 5200*5000*3600mm
Total Weight 13T
Total power 125KW
Voltage 380V
Max. Die Dimensions 600*400*240mm
Max. Die Thickness 2*120mm
Max. Die Opening stroke 370mm
Max.Die Weight 200Kg
Max. force of die closing 2400KG
Max. force of ejector 500KW
Max. die ejector stroke 48mm
Furnace Melting rate 350KG/H
Furnace Capacity 1800KG
Furnace Inductors 3*35KW
Hydraulic Motor Power 8.7KW
Hydraulic Rated Pressure 8Mpa
Hydraulic fluid temperature ≤52℃
Cooling system Water PH value 7~8.5
Cooling system Pressure 3-5bar
Cooling system Temp. 20±2℃
Cooling system Flow ≥400L/Min ≤600L/Min
Air pressure Compressed air pressure 0.5-0.6Mpa
Air pressure Compressed air consumption 15m³/H


Applications:

Manufacturing industry: Producing a wide range of mechanical parts and assemblies for machinery.



Electronics and electrical industry: Crafting well-conductive brass electrical components.



Construction and decoration: Creating decorative pieces, architectural components, and items requiring a brass aesthetic.



Automotive industry: Manufacturing automotive components such as engine parts, transmission elements, and more.



Packing and Shipping:

Packaging and Shipping for Low Pressure Die Casting Machine:

The Low Pressure Die Casting Machine will be shipped fully assembled and packaged to protect it from damage during transit. It will be placed on a pallet and wrapped in plastic. The pallet will be further secured with shrink wrap, plastic straps, and a wooden frame. Additionally, each package will be labeled with the customer address, weight, and contents. All packages will be shipped via freight carrier.



FAQ:

Q1: What is the brand name of this Low Pressure Die Casting Machine?
A1: The brand name is DZ.
Q2: What is the model number of this Low Pressure Die Casting Machine?
A2: The model number is RD-5040-S.
Q3: Where is this Low Pressure Die Casting Machine made?
A3: This Low Pressure Die Casting Machine is made in China.
Q4: Does this Low Pressure Die Casting Machine have a certification?
A4: Yes, this Low Pressure Die Casting Machine has CE and ISO certifications.
Q5: What is the output capacity of this Low Pressure Die Casting Machine?
A5: The output capacity of this Low Pressure Die Casting Machine depends on the product size and requirements. Please contact us for more information.
