Low Pressure Die Casting Machine
>
High Speed Low Pressure Die Casting Machine For Brass Casting Brass Mould
Detail Information
Place of Origin:
CHINA
Certification:
CE ISO
Air Pressure Compressed Air Consumption:
15m³/H
Furnace Inductors:
3*35KW
Cooling System Water PH Value:
7~8.5
Total Power:
125KW
Melting Rate:
350KG/H
Max. Force Of Ejector:
500kg
Max. Die Opening Stroke:
370mm
Max. Die Thickness:
2*120mm
Delivery Time:
20 work days
Supply Ability:
3 sets per month
Highlight:

Brass Mould Die Casting Machine

,

Automotive Brass Die Casting Machine

Product Description

High-Speed Low Pressure Die Casting Machine For Brass Casting,Brass Mould..

Product Description:

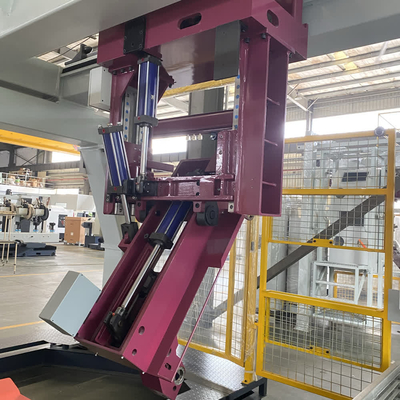

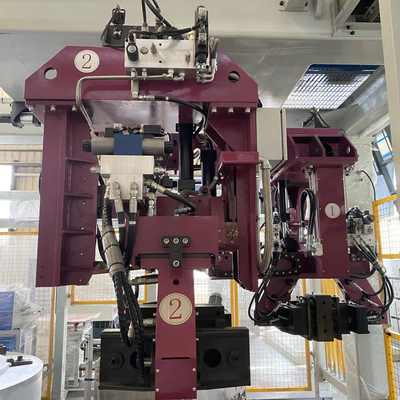

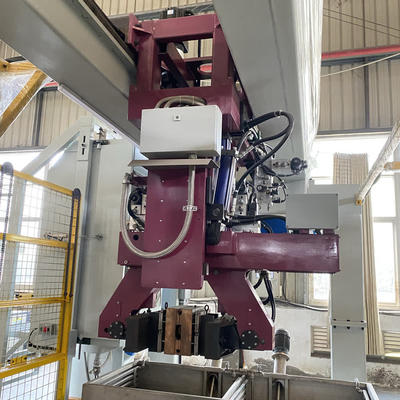

High Speed Low Pressure Die Casting Machine For Brass Casting Brass Mould 0High Speed Low Pressure Die Casting Machine For Brass Casting Brass Mould 1High Speed Low Pressure Die Casting Machine For Brass Casting Brass Mould 2High Speed Low Pressure Die Casting Machine For Brass Casting Brass Mould 3High Speed Low Pressure Die Casting Machine For Brass Casting Brass Mould 4

Features:

  • Product Name: Low Pressure Die Casting Machine
  • Max. Die Thickness: 2*120mm
  • Gas Flow: 0.225m³/h
  • Hydraulic Fluid Temperature: ≤55℃
  • Max. Die Dimension : 600*400*240mm
  • Total Power: 125KW
  • Low Pressure Die Casting Process: A process used to cast metal parts using a low pressure die casting machine


Technical Parameters:

Properties Parameters
Equipment Size:L*W*H 5200*5000*3600mm
Total Weight 13T
Total power 125KW
Voltage 380V
Max. Die Dimensions 600*400*240mm
Max. Die Thickness 2*120mm
Max. Die Opening stroke 370mm
Max.Die Weight 200Kg
Max. force of die closing 2400KG
Max. force of ejector 500KW
Max. die ejector stroke 48mm
Furnace Melting rate 350KG/H
Furnace Capacity 1800KG
Furnace Inductors 3*35KW
Hydraulic Motor Power 8.7KW
Hydraulic Rated Pressure 8Mpa
Hydraulic fluid temperature ≤52℃
Cooling system Water PH value 7~8.5
Cooling system Pressure 3-5bar
Cooling system Temp. 20±2℃
Cooling system Flow ≥400L/Min ≤600L/Min
Air pressure Compressed air pressure 0.5-0.6Mpa
Air pressure Compressed air consumption 15m³/H

Applications:

  • Manufacturing industry: Producing a wide range of mechanical parts and assemblies for machinery.
  •
  • Electronics and electrical industry: Crafting well-conductive brass electrical components.
  •
  • Construction and decoration: Creating decorative pieces, architectural components, and items requiring a brass aesthetic.
  •
  • Automotive industry: Manufacturing automotive components such as engine parts, transmission elements, and more.


Packing and Shipping:

Packaging and Shipping for Low Pressure Die Casting Machine

The Low Pressure Die Casting Machine is packed and shipped with utmost care and attention to the following guidelines:

  • The die casting machine is securely fastened in a wooden crate for protection during transit.
  • The crate is then placed in a cardboard box for additional protection.
  • The box is sealed and labeled with a warning sticker about the fragile nature of the machine.
  • The box is then secured on a pallet and shrink-wrapped to ensure the box does not open during transit.
  • The pallet is then loaded onto a freight truck for delivery.
```

FAQ:

Q1: What is the brand name of the Low Pressure Die Casting Machine?
A1: The brand name is DZ.

Q2: What is the model number of the Low Pressure Die Casting Machine?
A2: The model number is RD-5040-S.

Q3: Where is the Low Pressure Die Casting Machine made?
A3: The Low Pressure Die Casting Machine is made in China.

Q4: Does the Low Pressure Die Casting Machine have any certifications?
A4: Yes, the Low Pressure Die Casting Machine has CE and ISO certifications.

Q5: What advantages does the Low Pressure Die Casting Machine have?
A5: The Low Pressure Die Casting Machine has accurate temperature control, easy and safe operation, high efficiency, and stable performance.
