Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE ISO |
| Model Number: | RD-7050-S |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1 set /per month |
|
Detail Information |
|||
| Total Power: | 125KW | Air Pressure Compressed Air Pressure: | 0.5-0.6Mpa |
|---|---|---|---|
| Cooling System Pressure: | 3-5bar | Furnace Capacity: | 1800KG |
| Voltage: | 380V | Hydraulic Motor Power: | 8.7KW |
| Equipment Size:L*W*H: | 5200*5000*3600mm | Gas Pressure: | 0.5bar |
Product Description

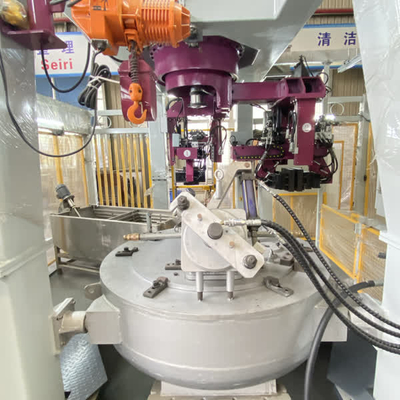

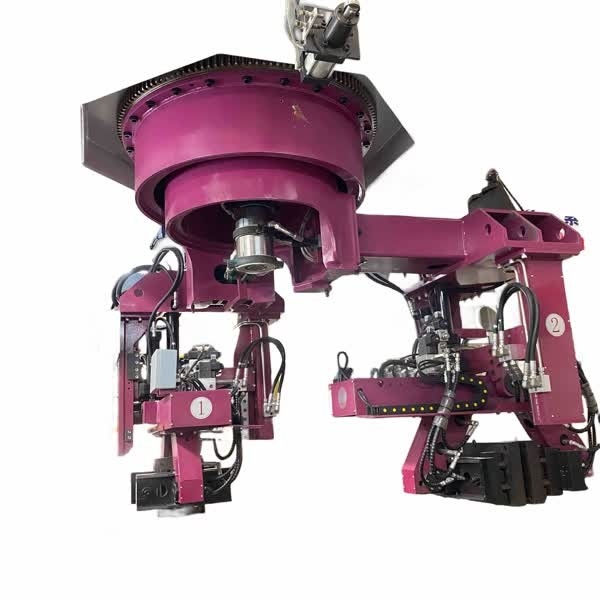

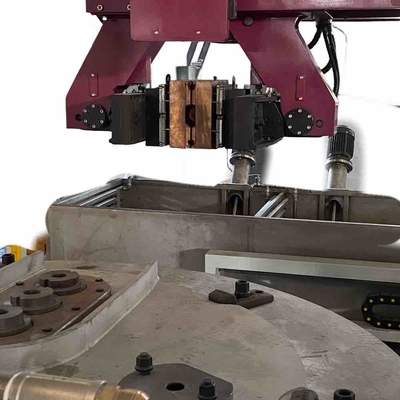

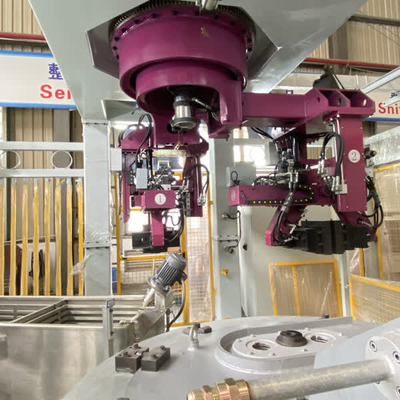

Low Pressure Die Casting Machine is a high-precision industrial machine that is used for casting metals and alloys. It is suitable for casting products with high accuracy, surface finish and dimensional stability.
| Properties | Parameters |
| Equipment Size:L*W*H | 5200*5000*3600mm |
| Total Weight | 13T |
| Total power | 125KW |
| Voltage | 380V |
| Max. Die Dimensions | 600*400*240mm |
| Max. Die Thickness | 2*120mm |
| Max. Die Opening stroke | 370mm |
| Max.Die Weight | 200Kg |
| Max. force of die closing | 2400KG |
| Max. force of ejector | 500KW |
| Max. die ejector stroke | 48mm |
| Furnace Melting rate | 350KG/H |
| Furnace Capacity | 1800KG |
| Furnace Inductors | 3*35KW |
| Hydraulic Motor Power | 8.7KW |
| Hydraulic Rated Pressure | 8Mpa |
| Hydraulic fluid temperature | ≤52℃ |
| Cooling system Water PH value | 7~8.5 |
| Cooling system Pressure | 3-5bar |
| Cooling system Temp. | 20±2℃ |
| Cooling system Flow | ≥400L/Min ≤600L/Min |
| Air pressure Compressed air pressure | 0.5-0.6Mpa |
| Air pressure Compressed air consumption | 15m³/H |
Suitable for casting brass parts
The Low Pressure Die Casting Machine is securely packaged and shipped to the customer's location with the utmost care. It is packed in special boxes to protect the machine from any damage during transportation. The package includes the machine, user manual, and other accessories. The package is then sealed and labeled for shipping.
The Low Pressure Die Casting Machine is shipped via a reliable freight carrier. The shipping cost is based on the size, weight, and delivery destination of the package. The customer will be kept informed of the shipment status at all times.
