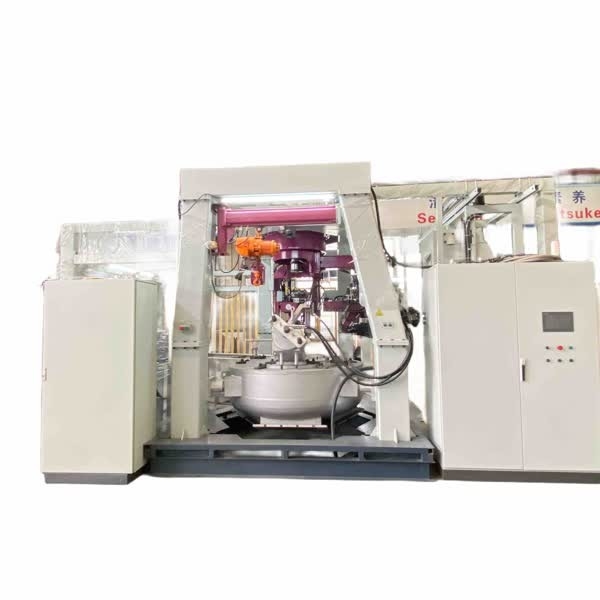

Low Pressure Die Casting Machine
>
Low Pressure Die Casting Machine is Suitable for casting brass parts, such as faucets, auto parts, etc
Detail Information
Place of Origin:
CHINA
Certification:
CE ISO
Hydraulic Fluid Temperature:
≤55℃
Air Pressure Compressed Air Pressure:
0.5-0.6Mpa
Melting Rate:
350KG/H
Hydraulic Rated Pressure:
8Mpa
Max. Force Of Die Closing:
2400kg
Hydraulic Motor Power:
8.7KW
Max. Die Thickness:
2*120mm
Max. Die Weight:
200Kg
Delivery Time:
30 work days
Supply Ability:
1 set /per month
Highlight:

Low Pressure Die Casting Machine

Product Description

Product Description:

Low Pressure Die Casting Machine is a type of Automatic Casting Machine, it uses low pressure to cast metal parts from a furnace, and offers an efficient, cost-effective solution for producing high-quality metal components in a wide range of shapes and sizes. Low Pressure Die Casting Machine is Suitable for casting brass parts, such as faucets, auto parts, etc 0Low Pressure Die Casting Machine is Suitable for casting brass parts, such as faucets, auto parts, etc 1

Low Pressure Die Casting Machine is Suitable for casting brass parts, such as faucets, auto parts, etc 2Low Pressure Die Casting Machine is Suitable for casting brass parts, such as faucets, auto parts, etc 3

Features:

  • Product Name: Low Pressure Die Casting Machine
  • Cooling System Pressure: 3-5bar
  • Furnace Inductors: 3*35KW
  • Hydraulic Fluid Temperature: ≤55℃
  • Total Power: 125KW
  • Cooling System Flow: ≥400L/Min ≤600L/Min
  • Automatic Casting Machine
  • Low Pressure Casting Machine
  • Low Pressure Die Casting Machine


Technical Parameters:



items Parameters
Equipment Size:L*W*H 5200*5000*3600mm
Total Weight 13T
Total power 125KW
Voltage 380V
Max. Die Dimensions 600*400*240mm
Max. Die Thickness 2*120mm
Max. Die Opening stroke 370mm
Max.Die Weight 200Kg
Max. force of die closing 2400KG
Max. force of ejector 500KW
Max. die ejector stroke 48mm
Furnace Melting rate 350KG/H
Furnace Capacity 1800KG
Furnace Inductors 3*35KW
Hydraulic Motor Power 8.7KW
Hydraulic Rated Pressure 8Mpa
Hydraulic fluid temperature ≤52℃
Cooling system Water PH value 7~8.5
Cooling system Pressure 3-5bar
Cooling system Temp. 20±2℃
Cooling system Flow ≥400L/Min ≤600L/Min
Air pressure Compressed air pressure 0.5-0.6Mpa
Air pressure Compressed air consumption 15m³/H

Applications:

  • Suitable for casting brass parts, such as faucets, auto parts, etc



Packing and Shipping:

Packaging and Shipping for Low Pressure Die Casting Machine:

The Low Pressure Die Casting Machine will be securely packed in a wooden box and shipped to the customers. The box will be adapted to the size and weight of the machine and securely closed with screws. Furthermore, the box will be labeled with the Low Pressure Die Casting Machine name and the customer's address.

The machine will be placed on a pallet, which is then wrapped in plastic foil and secured with straps. This ensures the safe transport of the Low Pressure Die Casting Machine and prevents it from any damage.



FAQ:

Q: What is the Brand Name of this Low Pressure Die Casting Machine?
A: The Brand Name of this Low Pressure Die Casting Machine is DZ.
Q: What is the Model Number of this Low Pressure Die Casting Machine?
A: The Model Number of this Low Pressure Die Casting Machine is RD-7050-S.
Q: Where is this Low Pressure Die Casting Machine made?
A: This Low Pressure Die Casting Machine is made in China.
Q: Does this Low Pressure Die Casting Machine have any certifications?
A: Yes, this Low Pressure Die Casting Machine has CE and ISO certifications.
Q: What is the purpose of this Low Pressure Die Casting Machine?
A: This Low Pressure Die Casting Machine is used for casting metal parts in low pressure.
