Product Details:
|
|
Place of Origin: | CHINA |
---|---|
Brand Name: | DZ |
Certification: | CE ISO |
Model Number: | RD-5040-S |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | wood |
Delivery Time: | 90days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1 set /per month |
Detail Information |
|||
Equipment Size:L*W*H: | 7000*6000*4200mm | Cooling System Water Temperature: | 20-25℃ |
---|---|---|---|
Application: | Industry,Machinery Parts,Brass Casting | Warranty: | 1 Year |
Quality Control: | 100% Inspected Casting Parts | ||
High Light: | 128KW Die Casting Machine,Industry Brass Die Casting Machine,Brass Die Casting Machine 500Kg |
Product Description

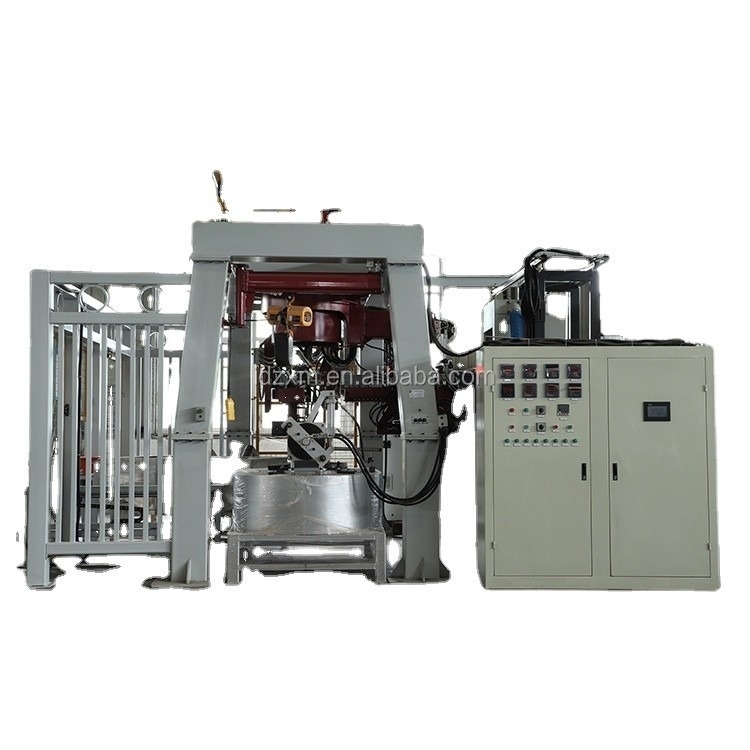

The Low Pressure Die Casting Machine is a perfect choice for a low pressure die casting process. With a maximum die weight of 500Kg, a cooling system pressure of 3bar, a voltage of 380V, a cooling system flow rate of 400L/Min to 700L/Min, and a maximum die dimension of 800*500*240mm, it is an ideal solution for low pressure die casting. The Low Pressure Die Casting Machine is highly reliable and robust, and provides excellent performance and superior casting accuracy. The machine is designed for easy operation and maintenance, and is suitable for a variety of low pressure die casting applications. It is the perfect choice for those looking for a reliable and efficient low pressure die casting machine.
Parameters | Details |
---|---|
Equipment Size:L*W*H | 7000*6000*4200mm |
Total Weight | 20T |
Total Power | 180KW |
Voltage | 380V |
Max. Die Dimensions | 600*400*240mm |
Max. Die Thickness |
2*120mm |
Max. Die Opening Stroke | 372mm |
Max. Die Weight | 250KG |
Max. Force of Die Closing | 2400KG |
Max. Force of Ejector | 1000KG |
Max. Die Ejector Stroke | 48mm |
Furnace Melting Rate | 680KG/H |
Furnaca Capacity | 2800KG |
Furnace Power | 165KW |
Hydraulic Power | 12KW |
Hydraulic Rated Pressure | 80pa |
Hydraulic Fluid Temperature | ≤55℃ |
Cooling System Water PH | 7~8.5 |
Cooling System Pressure | 3bar |
Cooling System Water Temperature | 20-25℃ |
Cooling System Flow | ≥300L/Min ≤600L/Min |
Air Pressure Compressed Air Pressure | 0.5-0.6Mpa |
Air Pressure Compressed Air Consumption | 18m³/H |
DZ Low Pressure Die Casting Machine (Model Number: RD-7050-S) is the perfect choice for customers who require a reliable and powerful metal die casting machine. It is designed and manufactured by DZ from CHINA, and has been certified with CE ISO. With a total capacity of 2800KG, this low pressure casting machine is able to generate a maximum force of 4000kg, and its maximum die dimension reaches up to 800*500*240mm. With a melting rate of 680KG/H, and an air pressure compressed air pressure of 0.5-0.6Mpa, this low pressure die casting machine is perfect for various industrial applications, such as automotive, electrical, and electronics industries.
If you are looking for a low pressure die casting machine that is efficient, reliable, and cost-effective, DZ Low Pressure Die Casting Machine (Model Number: RD-7050-S) is the perfect choice for you. It is designed to meet the highest standards of performance and accuracy, and is capable of producing high-quality products in a short amount of time. With its CE ISO certification and high capacity, you can be sure that this low pressure casting machine will provide you with the best possible results.
We provide technical support and services for our Low Pressure Die Casting Machine product. Our services include providing customer support, maintenance and repair services, engineering and consultancy services, and training services.
Customer support: Our customer support team is available 24 hours a day, 7 days a week to answer any questions you may have about our products. We also provide a comprehensive online knowledge base and FAQs.
Maintenance and repair services: Our experienced technicians are available to provide maintenance and repair services for your Low Pressure Die Casting Machine. They are also available to provide troubleshooting and diagnostics.
Engineering and consultancy services: Our team of engineers and consultants are available to provide advice and guidance for customizing and optimizing your Low Pressure Die Casting Machine.
Training services: We provide comprehensive training services to help you understand and operate your Low Pressure Die Casting Machine. Our training services include on-site and virtual training, as well as online tutorials.
Packaging and Shipping for Low Pressure Die Casting Machine
The Low Pressure Die Casting Machine will be securely packaged in a wooden crate with additional protective material to ensure it arrives in perfect condition. The crate will be labeled with clear instructions for the transportation and handling. All necessary safety precautions for handling the goods will be taken while the package is in transit.
The Low Pressure Die Casting Machine will be shipped via a reputable freight forwarding company. The tracking information will be provided for the customer so they can stay updated on the shipment progress.
