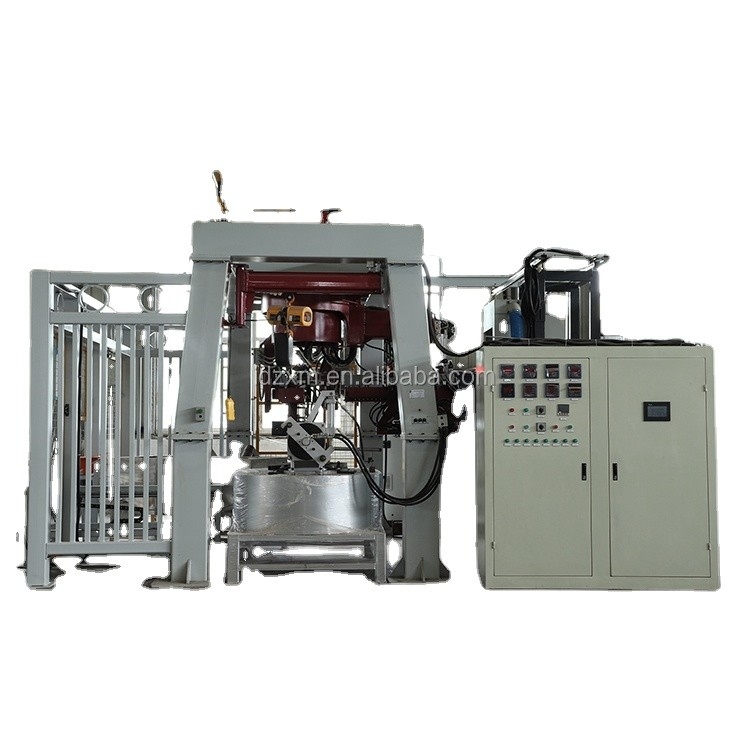

Low Pressure Copper Bathroom Faucet Die Casting Machine Heavy Duty

Product Description

New Technological Heavy-duty Low Pressure Copper Bathroom Faucet Die Casting Machine

In low pressure casting process molten metal is filled directly from the holding or casting furnace into the dies and sand mould from below, with low turbulence and an absolutely controlled filled casting process.

Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.

To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver the machines with freely programmable Siemens control.

Ⅰ ABOUT TWO MANIPULATORS LOW PRESSURE DIE CASTING MACHINE

Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.

1) Capacity per shift (8 hours): 660 castings.

2)This machine with its automatic operation of the complete low-pressure die-casting process is suitable for the production of thin-walled, bulky, and high-volume castings with a very short die-changing time.

3) Features

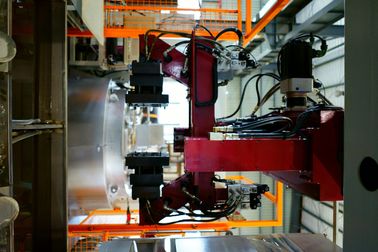

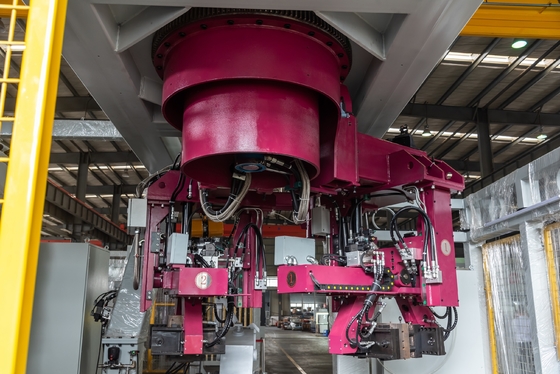

A. 2 manipulators on a rotary device, operated independently. Operating Parameters can be edited independently. Two manipulators are working at the same time or one set changes the die while the other set is under maintenance;

B. Manually setting of the cores;

C. Quick die change flanges;

D. Simple control electrics;

E. Die cooling and coating in a black wash bath;

F. Automatic unloading, automatic sorting of different castings;

G. Drive by servo motor, with high precision, stable, and efficient performance;

H. High-powered furnaces for production requirements;

I. Max die dimensions:

LD-5040-D 600*400*240mm;

LD-7050-D 800*500*240mm.

Ⅱ TECHNICAL PARAMETERS
