One Operation Low Pressure Metal Die Casting Machine With One Manipulator

Brand Name:	DZ
Model Number:	LPDC5540S-1
MOQ:	1 set
Packaging Details:	wood
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Number Of Robots:

Air Pressure:

Water Source Pressure:

Maximum Furnace Temperature:

Cooling Water Temperature:

18-22

Robot's Fastest Moving Speed:

20m/min

Supply Ability:

30sets / month

Highlight:

80pa Metal Die Casting Machine

One Manipulator Casting Machine

One Operation Lpdc Machine

Product Description

Quick Die Change Flanges One Operation Low Pressure Metal Die Casting Machine With One Manipulator

Ⅰ ABOUT LOW PRESSURE DIE CASTING MACHINE

In low pressure casting process molten metal is filled directly from the holding or casting furnace into the dies and sand mould from below, with low turbulence and an absolutely controlled filled casting process.

Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.

To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver the machines with freely programmable Siemens control.

Ⅱ ADVANTAGES OF SINGLE MANIPULATORS LOW PRESSURE DIE CASTING MACHINE

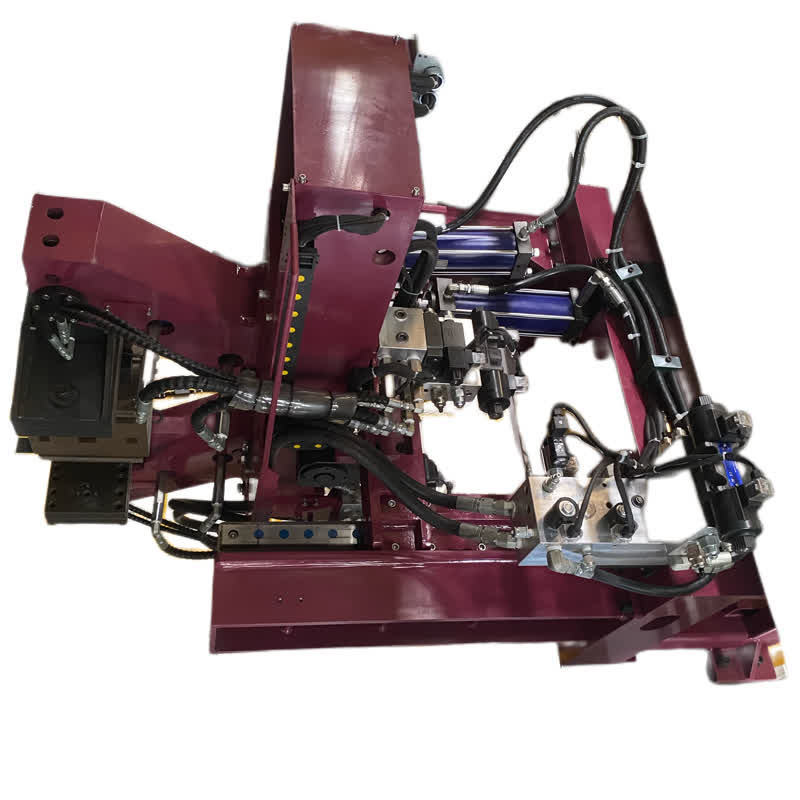

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.

1) Capacity per shift (8 hours): approx. 380 castings.

2) This machine with its automatic operation of the complete low pressure die casting process is suitable for the production of thin-walled, bulky and high-volume castings with a very short die changing time.

3) Features

A. manipulator on a linear guiding device；

B. Manually setting of the cores；

C. Quick die change flanges；

D. Simple control electrics；

E. Automatic unloading;

F. Die cooling and coating in a black wash bath;

G. Drive by servo motor, with high precise, stable and efficiency performance;

H. High-powered furnaces for production requirements;

I. Max die dimensions:

LD-5040-D 600*400*240mm;

LD-7050-D 700*500*240mm.

Ⅲ TECHNICAL PARAETERS

Code	Basic Equipment	Item	LD-5040-D	LD-7050-D
1	Basic Parameters	Equipment Size: LWH	520050003600mm	650050003650
2		Total Weight	13T	15T
3		Total Power	125KW	185KW
4		Voltage	380V	380V
5	Casting Die	Max. Die Dimensions	600400240mm	700500240mm
6		Max. Die Thickness	2*120mm	2*120mm
7		Max. Die Opening Stroke	372mm	372mm
8		Max. Die Weight	200KG	600KG
9		Max. Force of Die Closing	2400KG	4000KG
10		Max. Force of Ejector	1000KG	1000KG
11		Max. Die Ejector Stroke	48mm	48mm
12	Furnace	Melting Rate	350KG/H	520KG/H
13		Capacity	1800KG	2800KG
14		Inductors	3*35KW	3*55KW
15	Hydraulic	Motor Power	8.7KW	12KW
16		Rated Pressure	80pa	80pa
17		Hydraulic Fluid Temperature	≤52 ℃	≤55 ℃
18	Cooling System	Water PH	7~8.5	7~8.5
19		Pressure	3-5bar	3bar
20		Water Temperature	20-25℃	20-25 ℃
21		Flow	≥300L/Min ≤600L/Min	≥300L/Min ≤600L/Min
22	Air Pressure	Compressed Air Pressure	0.5-0.6Mpa	0.5-0.6Mpa
23		Compressed Air Consumption	15m3/H	18m3/H

FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge

Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge

Q:How long the guarantee?
A: one year and charge for repair the whole life.

Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
