Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: RD-4540S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets / per month

Detail Information

Application: Casting Grinding And Polishing For Sanitary Industry Surface Treatment: Polishing,sandblasting
Process: Low Pressure Die Casting,Die Casting+Machining,Die Casting-deburring- Machinery,Casting. Deburring .Drilling .Threading Item: Low Pressure Die Casting Brass Alloy Die Casting Auto Parts Aluminum
Color: Grey Weight: As Per Require
Quality Control: 100% Inspected Casting Parts,Professional Inspection Lead Time: 45 Days
High Light:

Metal Die Casting Machine 180KW

,

Multiple Cavity Die Casting Machine

,

380V Automatic Casting Machine

Product Description

Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Brass Faucet/Water meter





Ⅰ ABOUT  LOW PRESSURE DIE CASTING MACHINE



In low pressure casting process molten metal is filled directly from the holding or casting furnace into the dies and sand mould from below, with low turbulence and an absolutely controlled filled casting process.



Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.



To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver the machines with freely programmable Siemens control.





Ⅱ ADVANTAGES OF  TWO MANIPULATORS LOW PRESSURE DIE CASTING MACHINE

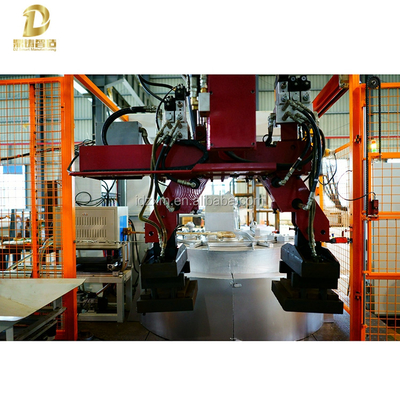

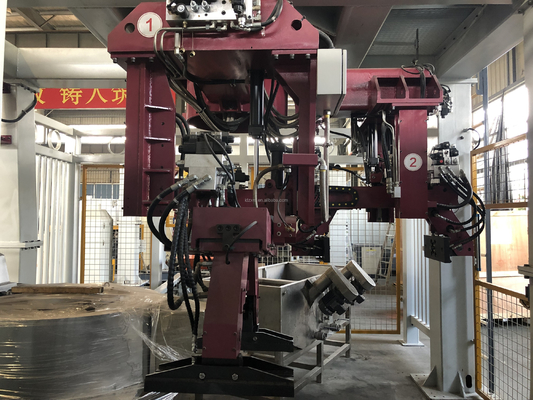

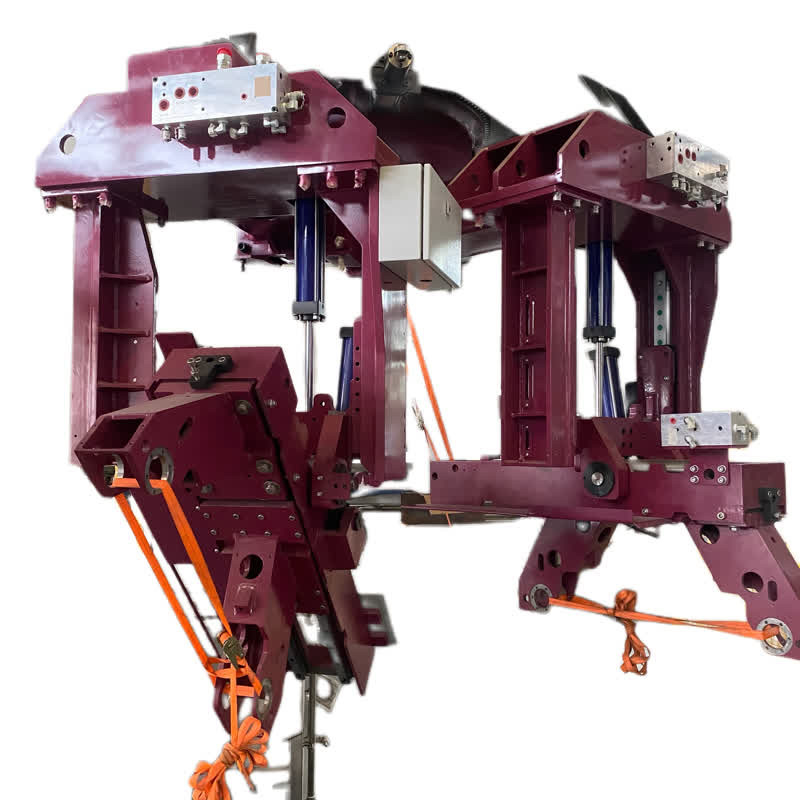

Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 760 castings



2) Fully automation of the low-pressure die-casting process, short mold change time and flexible application, which is very suitable for mass casting production;



3) Specifications



A. 2 manipulators on a rotary device, operated independently. Operating Parameters can be edited independently. Two manipulators either work at the same time; or one set changes the die, or the other set is under maintenance.



B. Manually setting of the cores



C. Max die dimensions: 600 x400x240 mm



D. Quick die change flanges



E. Simple furnace control electrics



F. Die cooling and coating in a blackwash bath



G. Different die castings are equipped with separated feeders, graphite baths and manipulators.



H. Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.



I. Drive by servo motor, with high precise, stable and efficiency performance.



Ⅲ  TECHNICAL PARAMETERS



Code BASIC EQUIPMENT Items Parameters
1

Specification

Equipment Size: L*W*H   7000*6000*3960mm
2 Total Weight  18T
3 Total power 180KW
4 Voltage  380V
5 Casting die Max. Die Dimensions  600*400*240mm
6 Max. Die Thickness  2*120mm
7 Max. Die Opening stroke  370mm
8 Max. Die Weight  200KG
9 Max. force of die closing 1500KG
10 Max. force of ejector 500KG
11 Max. die ejector stroke 45mm
12 Furnace  Melting rate  700KG/H
13 Capacity 2800KG
14 Inductors 2*80KW
15 Hydraulic Power  7.5KW
16 Rated pressure  8Mpa
17 Hydraulic fluid temperature  ≤52 ℃
18 Cooling system  Water PH 7-8.5
19 Pressure  3-5bar
20 Temp.  20±2 ℃
21 Flow  ≥300L/Min ≤600L/Min
22 Air pressure  Compressed air pressure 0.5-0.6Mpa
23 Compressed air consumption 15㎥ /H
24 Gas Pressure  0.5 bar
25 Flow 0.225 m3 / h


Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 0Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 1Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 2Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 3Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 4Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 5Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 6

Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 7Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 8Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 9Multiple Cavity Dies Automatic Low Pressure Metal Die Casting Machine For Water Meter 10

FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



Q:How long the guarantee?
A: one year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
