CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: LPDC5540S-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets per Month

Detail Information

Equipment Size: L*W*H: 7000*6000*3960mm Total Weight: 18T
Total Power: 180KW Voltage: 380V/50Hz
Condition: 100%New
High Light:

700kg/h Die Casting Machine

,

2Manipulators Die Casting Machine

,

CE Brass Faucet Lpdc Machine

Product Description

High Capacity CE Certification Two Manipulators Low Pressure Die Casting Machine For Brass Faucet



In low pressure casting process molten metal is filled directly from the holding or casting furnace into the dies and sand mould from below, with low turbulence and an absolutely controlled filled casting process.



Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.



To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver the machines with freely programmable Siemens control.



Ⅰ ABOUT TWO MANIPULATORS LOW PRESSURE DIE CASTING MACHINE

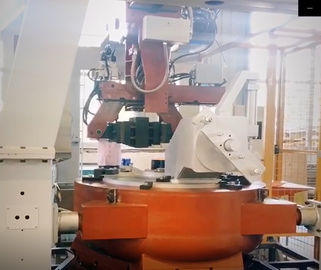

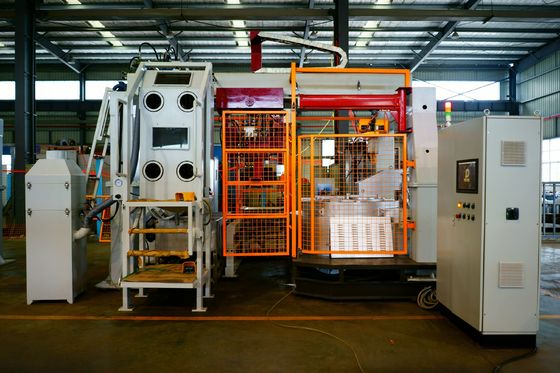

Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 760 castings



2) Fully automation of the low-pressure die-casting process, short mold change time and flexible application, which is very suitable for mass casting production;



3) Specifications

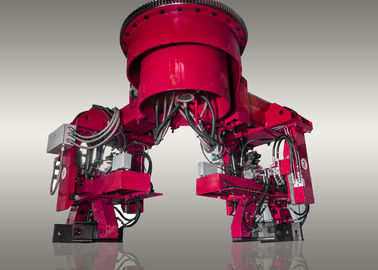

A. 2 manipulators on a rotary device, operated independently. Operating Parameters can be edited independently. Two manipulators either work at the same time; or one set changes the die, or the other set is under maintenance.



B. Manually setting of the cores



C. Max die dimensions: 600 x400x240 mm



D. Quick die change flanges



E. Simple furnace control electrics



F. Die cooling and coating in a blackwash bath



G. Different die castings are equipped with separated feeders, graphite baths and manipulators.



H. Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.



I. Drive by servo motor, with high precise, stable and efficiency performance.



Ⅱ TECHNICAL PARAMETERS



Code BASIC EQUIPMENT Items Parameters
1   Equipment Size: L*W*H  7000*6000*3960mm
2   Total Weight 18T
3   Total power 180KW
4   Voltage 380V
5 Casting die Max. Die Dimensions 600*400*240mm
6   Max. Die Thickness 2*120mm
7   Max. Die Opening stroke 370mm
8   Max. Die Weight 200KG
9   Max. force of die closing 1500KG
10   Max. force of ejector 500KG
11   Max. die ejector stroke 45mm
12 Furnace Melting rate 700KG/H
13   Capacity 2800KG
14   Inductors 2*80KW
15 Hydraulic Power 7.5KW
16   Rated pressure 8Mpa
17   Hydraulic fluid temperature ≤52 ℃
18 Cooling system Water PH 7-8.5
19   Pressure 3-5bar
20   Temp. 20±2 ℃
21   Flow ≥300L/Min ≤600L/Min
22 Air pressure Compressed air pressure 0.5-0.6Mpa
23   Compressed air consumption 15m3 /H
24 Gas Pressure 0.5 bar
25   Flow 0.225 m3 / h




CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 0CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 1CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 2CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 3CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 4CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 5CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 6



CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 7CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 8CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 9CE High Capacity Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 10

FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



Q:How long the guarantee?
A: one year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
