CE Approved Two Manipulators Low Pressure Die Casting Machine For Brass Faucet

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE
Model Number: 2-Manipulator
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per munth

Detail Information

Condition: New Warranty: 1 Year
Function: Die Casting Brass,aluminum,zinc Alloy Stainless Steel Etc. Name: Low Pressure Die Casting Machine
High Light:

CE Low Pressure Casting Machine

,

Faucet Low Pressure Casting Machine

,

8Mpa Die Casting Machine

Product Description

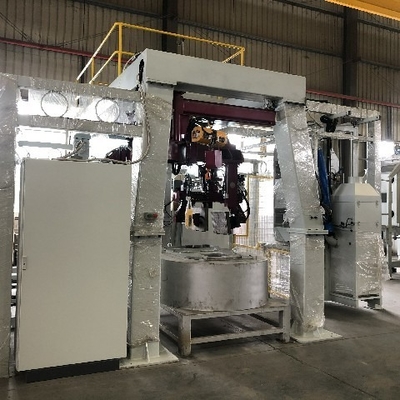

CE Approved Two Manipulators Low Pressure Die Casting Machine To Manufacture Brass Faucet



Ⅰ CHARACTERISTIC



Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 760 castings



2) Fully automation of the low-pressure die-casting process, short mold change time and flexible application, which is very suitable for mass casting production;



3) Specifications

A. 2 manipulators on a rotary device, operated independently. Operating Parameters can be edited independently. Two manipulators either work at the same time; or one set changes the die, or the other set is under maintenance.



B. Manually setting of the cores



C. Max die dimensions: 600 x400x240 mm



D. Quick die change flanges



E. Simple furnace control electrics



F. Die cooling and coating in a blackwash bath



G. Different die castings are equipped with separated feeders, graphite baths and manipulators.



H. Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.



I. Drive by servo motor, with high precise, stable and efficiency performance.



Ⅱ TECHNICAL PARAMETERS



Code BASIC EQUIPMENT Items Parameters
1

Specification

Equipment Size: L*W*H   7000*6000*3960mm
2 Total Weight  18T
3 Total power 180KW
4 Voltage  380V
5 Casting die模具 Max. Die Dimensions  600*400*240mm
6 Max. Die Thickness  2*120mm
7 Max. Die Opening stroke  370mm
8 Max. Die Weight  200KG
9 Max. force of die closing  1500KG
10 Max. force of ejector  500KG
11 Max. die ejector stroke  45mm
12 Furnace  Melting rate  700KG/H
13 Capacity 2800KG
14 Inductors 2*80KW
15 Hydraulic Power  7.5KW
16 Rated pressure  8Mpa
17 Hydraulic fluid temperature  ≤52 ℃
18 Cooling system  Water PH 7-8.5
19 Pressure 3-5bar
20 Temp.  20±2 ℃
21 Flow  ≥300L/Min ≤600L/Min
22 Air pressure  Compressed air pressure 0.5-0.6Mpa
23 Compressed air consumption 15㎥ /H
24 Gas Pressure  0.5 bar
25 Flow 0.225 m3 / h




CE Approved Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 0CE Approved Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 1CE Approved Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 2CE Approved Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 3



CE Approved Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 4CE Approved Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 5CE Approved Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 6CE Approved Two Manipulators Low Pressure Die Casting Machine For Brass Faucet 7







FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



Q:How long the guarantee?
A: one year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
