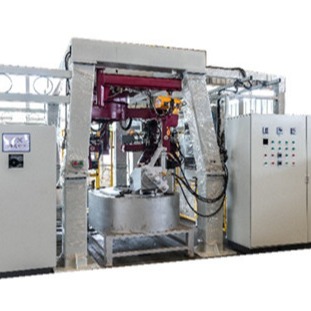

105KW Metal Die Casting Machine,
Brass Alloy PLC Casting Machine,
High Productivity Lpdc Machine
The Low Pressure Die casting machine are mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories. To fulfill the different capacity requirement of customers, we have
1-manipulator and 2-manipulators models for customer options.
casting device, induction furnace, receiving car, graphite bath, die cleaning device,crane, manipulators, hydraulic and drives system, pneumatic system, riser tube heating system and control system etc.
1. Operation Control System: With Siemens PLC control device;Manipulator is with servo motor driving unit, linear guilding rail system, to move the manipulator in horizontal and vertical direction: faster, more stable and high precision control performances.
2. Induction furance: power is 105KW; Large melt content up to 1800kg,;Melting capacity is 350KG/H, stepless power adjustment; With 3*35KW inductors, each inductor is water cooling, water flow detection device on water jackets; Induction furnace heating methods: standard with gas burner, electricity heating for option ( extra cost); Hydraulic opening device mounted on furnace cover..
3. Receiving car: with performances of moving up-down; forward & backward; Transport the casting products to storage vehicles directly..
4. Die Cleaning Chamber: shot blasting device (copper powder blasting) for the cleaning of the dies.; The dies can be moved to cleaning chamber automatically for cleaning process @ heavy oxidized contaminations condition.
5. Crane with electric hoist: Effective lifting weight 500kg; Crane is used to lift the furnace cover for furnace cleaning, maintenance etc.
6.Graphite Bath: With performances of Constant temperature and graphite agitation. With 2 sperated tanks, tubes and agitators made of stainless steel material( SUS 316L). Used for die cooling and coating; Graphite coating is for easier pieces removal and die's temperature control.
|1-Manipulator Low Pressure Die Casting Machine Technical Parameters|
|1||Dimensions ( L*W*H)||5000*4600* 3400|
|5||Maximum Weight of Die||180KG|
|6||Maximum Dimension of Die||500*400*250|
|8||Furnace Melting Capacity||350Kg|
|10||Die Cleaning Box Quantity||1|
|12||Blackwash Tank Quantity||1|
|14||Lift Tube Quantity||3|
|17||Maximum Furnace Temperature||1250℃|
|18||Cooling Water Temperature||20±2℃|
|19||Maximum Speed of Manipulator||20m/ Min.|
|20||Maximum Die Clamping Stroke||370mm|
|21||Die Bath Angle||0-90º|
|22||Ejector Pin Pressure||540KG|
|23||Ejector Pin Stroke||40mm|
|25||Maximum Lift Weight of Hoist||500kg|
