|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||3sets/per month|
|Application:||Industry||Process:||Low Pressure Die Casting|
|Item:||Low Pressure Die Casting Brass Alloy Die Casting Auto Parts Aluminum||Quality Control:||100% Inspected Casting Parts|
|Weight:||10T||After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Installation,commissioning And Training|

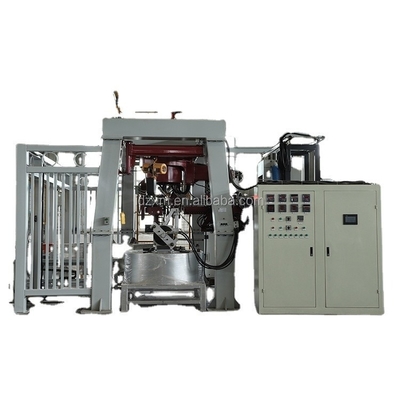

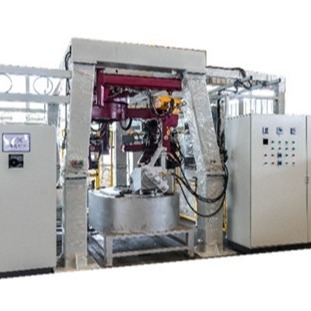

Copper Low Pressure Die Casting Machine,
50Hz Low Pressure Die Casting Machine,
Copper Alloys Industry Lpdc Machine
In low pressure casting process molten metal is filled directly from the holding or casting furnace into the dies and sand mould from below, with low turbulence and an absolutely controlled filled casting process.
Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.
To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver the machines with freely programmable Siemens control.
1. Manual setting of the cores
2. Automatic unloading of the casting
3. Automatic casting with computer controlled pressure-time curve
4. Cooling and coating in a blackwash bath
5. Different die castings are equipped with sperated feeders, graphite baths and manipulators.
6. Large furnace melting rate, capacity is up to 520KG/Hr, satisfy 2 manipulators working together.
7. Drived by servo motor, with high precised, stable and efficiency performance.
Control cabinet with freely programmable PC control of the machine by Beckhoff industrial PC and touch screen for machine operation, alternatively Siemens S7, Mitsubishi or Allen Bradley. The pressure build-up can be individually programmed and memorized. The casting speed depends on pressure and is programmed and regulated according to the geometry of the castings. On the touch screen error messages as well as important production data are shown.

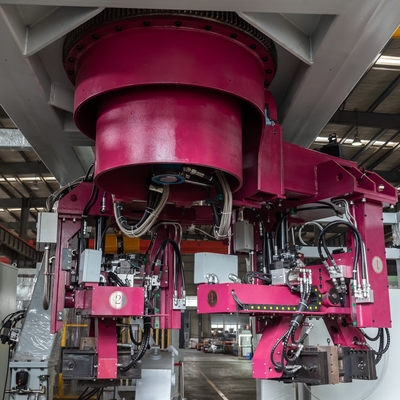

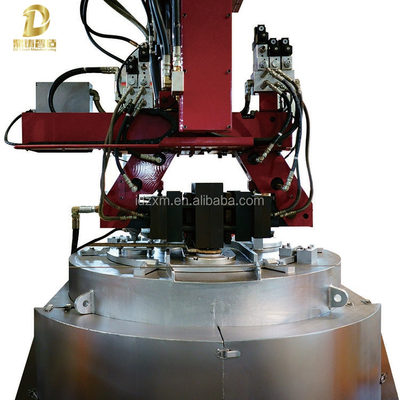

The new manipulator stands out for a new guiding system with heavy duty roller rail system. The manipulator movements are actuated by hydraulic cylinders. The die closing stroke is 10 kN. Maximal die dimension 500x40.

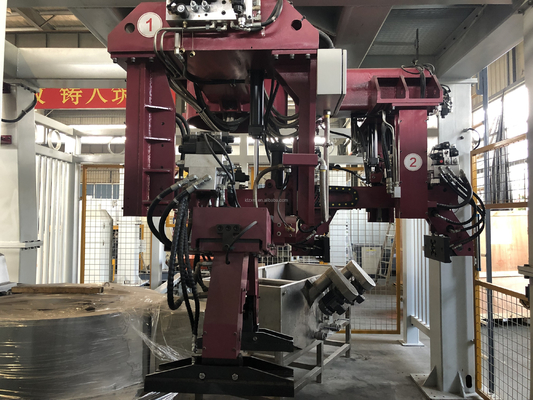

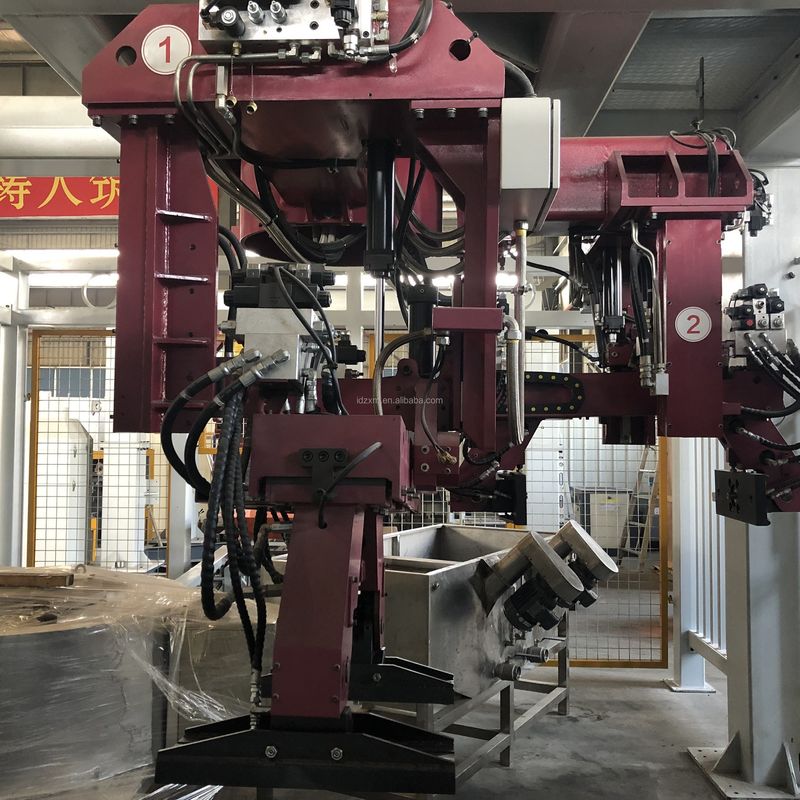

1.1 Two manipulators operated independantly; 1.2 Operating Parameters can be edited independently;
1.3 Two manipulators either work at the same time; or one set changes die the other set under maintenance.
Automatic casting removal ejecting from die and dropping on a stainless steel sliding table. The sliding table moves the castings to the backside of the machine. As an alternative to the removal table a gripper on a robot for accurate positioning can be offered.
