Automation Alloy Bathroom Faucet Low Pressure Die Casting Machine For Sanitary Ware

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: RD-4540S
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Wood
Delivery Time: 45days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 30sets / per month

Detail Information

Application: Casting Grinding And Polishing For Sanitary Industry Surface Treatment: Polishing,sandblasting
Process: Low Pressure Die Casting,Die Casting+Machining,Die Casting-deburring- Machinery,Casting. Deburring .Drilling .Threading Item: Low Pressure Die Casting Brass Alloy Die Casting Auto Parts Aluminum
Color: Grey Weight: As Per Require
Quality Control: 100% Inspected Casting Parts,Professional Inspection Lead Time: 45 Days
High Light:

Automation Alloy Faucet Die Casting Machine

,

Automation Bathroom Faucet Die Casting Machine

,

Sanitary Ware Lpdc Machine

Product Description

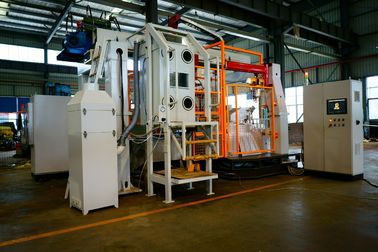

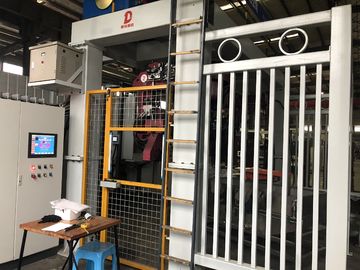

High Automation Alloy Bathroom Faucet Low Pressure Die Casting Machine for Sanitary Ware



In low pressure casting process molten metal is filled directly from the holding or casting furnace into the dies and sand mould from below, with low turbulence and an absolutely controlled filled casting process.



Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.

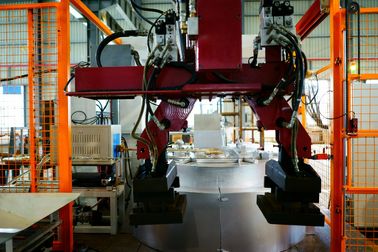

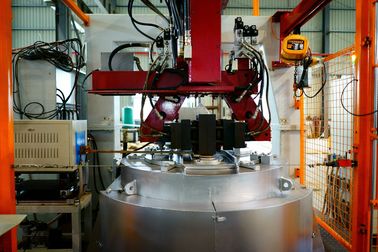

To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver the machines with freely programmable Siemens control.





TECHNICAL PARAETERS



Code BASIC EQUIPMENT Items Parameters
1 基本参数 Equipment Size: L*W*H尺寸  5200*5000*3500mm
2

Total Weight

总重量

13T
3

Total power

总功率

125KW
4

Voltage

电压

380V
5 Casting die模具 Max. Die Dimensions 模具最大尺寸 500*400*240mm
6 Max. Die Thickness 模具最大厚度 2*120mm
7 Max. Die Opening stroke最大开模行程 370mm
8 Max. Die Weight 最大模具重量 180KG
9 Max. force of die closing最大合模力 2400KG
10 Max. force of ejector 最大脱模力 500KG
11 Max. die ejector stroke最大脱模行程 48mm
12 Furnace 炉子 Melting rate 炉子熔率化 420KG/H
13 Capacity 容量 1800KG
14 Inductors 感应圈 3*35KW
15 Hydraulic液压 Motor Power 电机功率 7.5KW
16 Rated pressure 额定工作压力 8Mpa
17 Hydraulic fluid temperature 液压油温 ≤52 ℃
18 Cooling system 冷却水 Water PH Value值 7~8.5
19 Pressure 压力 3-5bar
20 Temp. 水温 20±2 ℃
21 Flow 流量 ≥400L/Min ≤600L/Min
22 Air pressure 气压 Compressed air pressure驱动压力 0.5-0.6Mpa
23 Compressed air consumption 用气量 15㎥ /H
24 Gas煤气 Pressure 压力 0.5 bar
25 Flow 流量 0.225 m3 / h




Automation Alloy Bathroom Faucet Low Pressure Die Casting Machine For Sanitary Ware 0





Transfer and Mechanical Machining Transfer machines, automatic lathes, pipe bending and shaping machines, machining centres.





Grinding and Polishing Honing systems. Automatic and semi-automatic systems for surface cleaning.

Automation Alloy Bathroom Faucet Low Pressure Die Casting Machine For Sanitary Ware 1



Surface treatment Chrome and nickel-plating systems. Painting systems.



Assembly Semi-automatic and fully automatic assembly lines. Assembly and testing zones. Labelling lines.

Automation Alloy Bathroom Faucet Low Pressure Die Casting Machine For Sanitary Ware 2





Special Plants Robotised zones. Automated loading and unloading lines. Raw material feeding lines. Fume suction plants, Environmental protection dust removing equipment,Industrial washing and water treatment plants.
