Product Details:
|
|
Place of Origin: | China(mainland) |
---|---|
Brand Name: | DZ |
Model Number: | 2-Manipulator |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | wood |
Delivery Time: | 60days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1 set/per month |
Detail Information |
|||
Color: | Silvery Grey | Function: | Die Casting Brass,aluminum,zinc Alloy Stainless Steel Etc. |
---|---|---|---|
Condition: | New | Warranty: | 1Year |
Name: | Brass Pressure Die Casting Machine | ||
High Light: | Brass Alloy Die Casting Machine 180KW,Alloy Low Pressure Die Casting Machine,Brass Die Casting Machine 380V |
Product Description

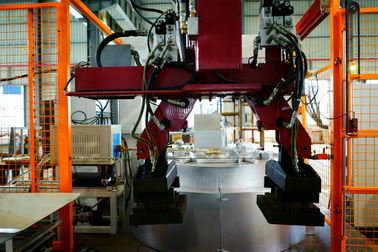

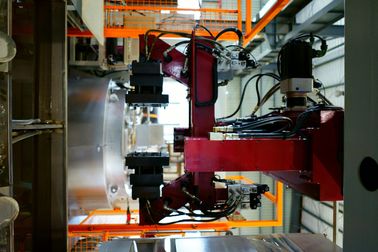

To fulfill the different capacity requirement of customers, we have 1-manipulator and 2-manipulators models for customer options.
Advanages:
1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;
2. High capacity ranges 400~450 castings per shift (8hrs);
3.Quick die change flange, 5 mins by munually ;
4. Furnace heating method: gas burner is standard and elctricity for option;
5. Max. die diemension 550*400mm;
6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;
7. Zinc Oxide dust cleaning unit for furnace cleaning;
8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;
9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);
10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)
TECHNICAL PARAMETERS
Code | BASIC EQUIPMENT | Items | Parameters |
1 | 基本参数 | Equipment Size: L*W*H 尺寸 | 7000*6000*3960mm |
2 | Total Weight 总重量 | 18T | |
3 | Total power 总功率 | 180KW | |
4 | Voltage 电压 | 380V | |
5 | Casting die模具 | Max. Die Dimensions 模具最大尺寸 | 600*400*240mm |
6 | Max. Die Thickness 模具最大厚度 | 2*120mm | |
7 | Max. Die Opening stroke 最大开模行程 | 370mm | |
8 | Max. Die Weight 最大模具重量 | 180KG | |
9 | Max. force of die closing 最大合模力 | 1500KG | |
10 | Max. force of ejector 最大脱模力 | 500KG | |
11 | Max. die ejector stroke 最大脱模行程 | 45mm | |
12 | Furnace 炉子 | Melting rate 炉子熔率化 | 700KG/H |
13 | Capacity容量 | 2800KG | |
14 | Inductors感应圈 | 2*80KW | |
15 | Hydraulic液压 | Power 电机功率 | 7.5KW |
16 | Rated pressure 额定工作压力 | 8Mpa | |
17 | Hydraulic fluid temperature 液压油温 | ≤52 ℃ | |
18 | Cooling system 冷却水 | Water PH值 | 7-8.5 |
19 | Pressure 压力 | 3-5bar | |
20 | Temp. 水温 | 20±2 ℃ | |
21 | Flow 流量 | ≥300L/Min ≤600L/Min | |
22 | Air pressure 气压 | Compressed air pressure驱动压力 | 0.5-0.6Mpa |
23 | Compressed air consumption用气量 | 15㎥ /H | |
24 | Gas煤气 | Pressure 压力 | 0.5 bar |
25 | Flow流量 | 0.225 m3 / h |
Click the link to view video:
