Digital Control Low Pressure Die Casting Machine For Brass Bathroom Accessories

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Packing in wooden cases suitable for sea transportation
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 sets/month

Detail Information

Channel Induction Furnace: 1 Inductor With Two Channels In W-shape Furnace Capacity: 2800KG
Melting Capacity: 700 KG/H Inductors: 2*80 KW
Max. Speed Of Manipulator (S): 35° / S Total Weight: 24T
Total Power: 180KW Operating Voltage: 380V
High Light:

Bathroom Hardware Die Casting Machinery

,

Digital Control Low Pressure Die Casting Machine

Product Description

Factory Direct Sale Sanitary Fittings Brass Castings Low Pressure Die Casting Machine



I. ADVANTAGES

1. Cost-efficient production

1.1. Multiple dies

1.2. Reduced melting loss

1.3. Increased yield (less circulating material)

1.4. One-man operation

1.5. Cost savings in subsequent stages of manufacture

1.6. For robot grinding low pressure die casting is a must



2. Humanization of the workstation

2.1. Ergonomic design of the workstation

2.2. Minimizing of smoke, heat, noise and danger of accidents



3. High quality castings and high-precision repeatability

3.1. Automated casting

3.2. Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube

II. CHARACTERISTIC

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 380 castings



2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Features

A. manipulator on a linear guiding device;

B. Manually setting of the cores;

C. Max die dimensions: 550 x400 mm;

D. Quick die change flanges;

E. Simple furnace control electrics;

F. Die cooling and coating in a blackwash bath;



III. EQUIPMENT STRUCTURE



The equipment consisting of main components:

  • Manipulator
  • Casting device
  • Induction furnace
  • Unloading device
  • Graphite bath
  • Die cleaning device
  • Crane
  • Manipulators
  • Hydraulic and drives system
  • Pneumatic system
  • Riser tube heating system
  • Combination of ingot loader and scrap loader
  • Control system
  • Combination of ingot loader and scrap loader
  • Other options are available on request

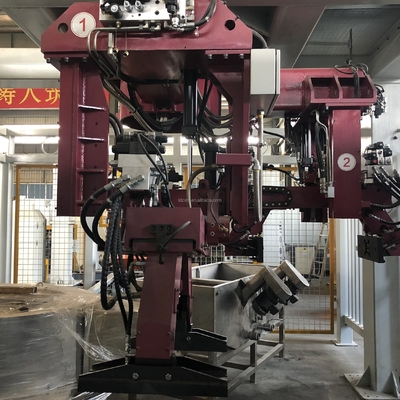

3.1 Manipulator

Digital Control Low Pressure Die Casting Machine For Brass Bathroom Accessories 0

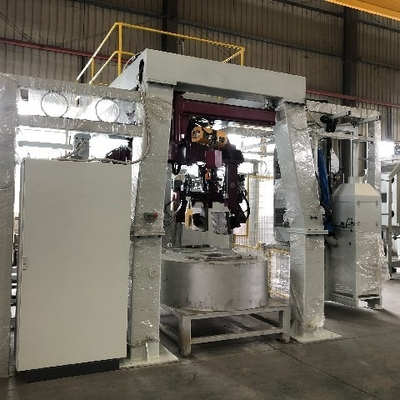

3.2 COMBINATION OF INGOT LOADER AND RECYCLING MATERIAL LOADER .

Digital Control Low Pressure Die Casting Machine For Brass Bathroom Accessories 1



Digital Control Low Pressure Die Casting Machine For Brass Bathroom Accessories 2

Digital Control Low Pressure Die Casting Machine For Brass Bathroom Accessories 3

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 380 castings



2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Features

A. manipulator on a linear guiding device;

B. Manually setting of the cores;

C. Max die dimensions: 550 x400 mm;

D. Quick die change flanges;

E. Simple furnace control electrics;

F. Die cooling and coating in a blackwash bath;
