Manipulator Automatic Bathroom Accessories Grinding Robot Stainless Steel Polishing Machine For Brass Pipe Fittings
| Brand Name: | DZ |
| Model Number: | HLD-50E |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE
Weight:
4000KG
Voltage:
380V/50Hz
Condition:
100%New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use:
Machining, Deburring, Grinding, Polishing
Type:
Angle Polisher
Warranty:
1 Year
Name:
Grinding Robotic
Function:
Machining, Deburring, Grinding, Polishing
Delivery Time:
30 days
Supply Ability:
30sets / month
Highlight:
Automatic Grinding Machine
,CNC Manipulator Grinding Machine
,Brass Pipe Fittings Grinding Machine
Product Description
Manipulator Automatic Bathroom Accessories Grinding Robot
Advanced stainless steel polishing machine specifically designed for brass pipe fittings and bathroom accessories manufacturing.
Key Features
- Robotic cell for grinding faucets and sanitary ware
- Processes brass casted faucets, zamak levers, shower heads
- Compact design with minimal space requirements
- Customizable layout with multiple robot brand integration
- Multiple applications: machining, deburring, grinding, polishing, satin finishing
- Customized HMI for easy adjustment and operation
- High adaptability for multiple part geometry processing
- Calibration system ensuring high process repeatability
- Capable of complex geometries processing
- Up to 100% surface grinding processing capability
Technical Characteristics
Robot System
- FUNAC robotic M-20Ia/35M
- Modular programming with self-learning system
- Demonstrator programming with portable handheld device
- Manual mode for simulating workmanship grinding and track recording
- Automatic operating mode with pre-set parameters
- Full digital control with program save/recall capability
- Rotary sand belt machine with multi-grade sandpaper grinding
- High precision and high efficiency operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Area | 1800 × 2500 mm |
| Feed Height | 200 mm |
| Transmission | X/Y rack and pinion, Z ball screw |
| Table Structure | T slot with clamp |
| Spindle Power | 4.5 KW × 2 |
| Spindle Speed | 24000 r/min |
| Travelling Speed | 25 m/min |
| Working Speed | 20 m/min |
| Working Delicacy | 0.005 mm |
| Repositioning Accuracy | 0.05 mm |
| Driving Motor | Stepper |
| Control System | DSP/Ncstudio Control System |
| Command Code | G Code*.u00*.mmg*.plt |
| Power (without spindle) | 1500 W |
| Voltage | AC380/50HZ |
| Running Environment | Temperature: 0°C ~ 45°C |
| Software | Artcam/Type3, other CAD/CAM |

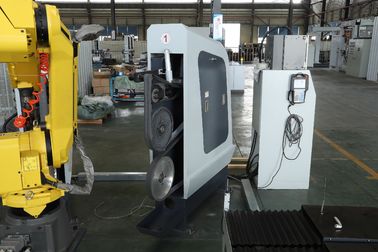

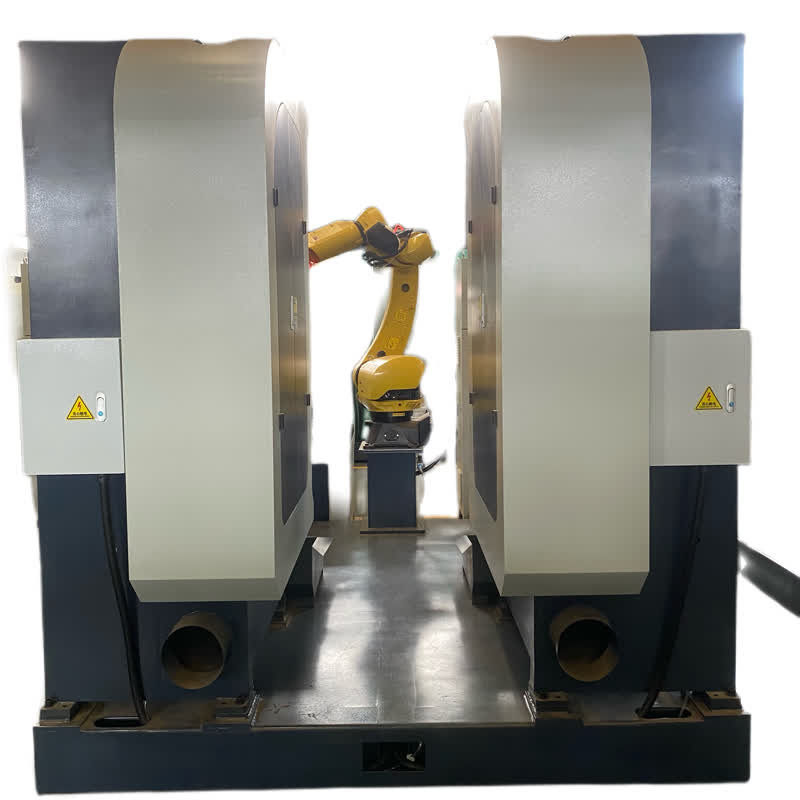

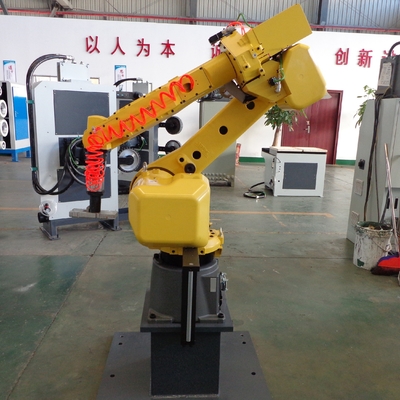

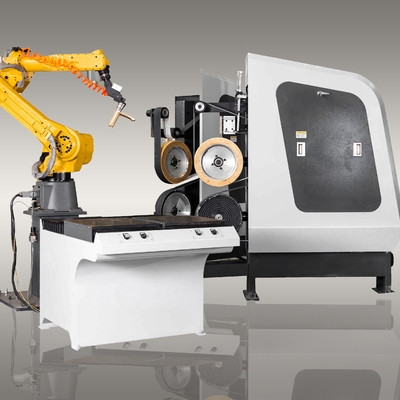

Product Images
Frequently Asked Questions
Q: Where is your factory located? How can I visit it?
A: Our factory is located in Quanzhou city, Fujian province, China. You can fly to Jinjiang or Xiamen airport, and we will arrange pickup service.
Q: Do you produce polishing machines with specific parameters according to samples?
A: Yes, we customize machines based on your samples or technical drawings. Our machines typically include different molds and fixtures for various applications.
Q: What is your sample service?
A: We provide sample testing services for products you want to produce, provided we have the machine in stock. Customers are responsible for sample shipping costs.
Q: What is your minimum order quantity?
A: Our standard MOQ is 1 set of machinery.
Q: Do you test all machines before delivery?
A: Yes, we perform 100% testing on all machines before delivery to ensure quality and performance.
Q: How do you maintain long-term business relationships?
A: We maintain relationships through consistent quality and competitive pricing, and we value every customer partnership by conducting business with sincerity and respect.
