High Efficiency LPDC Bathroom Accessories Brass Castings Machinery Low Pressure

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Packing in wooden cases suitable for sea transportation
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 sets/month

Detail Information

Channel Induction Furnace: 1 Inductor With Two Channels In W-shape Furnace Capacity: 2800KG
Melting Capacity: 700 KG/H Inductors: 2*80 KW
Max. Speed Of Manipulator (S): 35° / S Total Weight: 24T
Total Power: 180KW Operating Voltage: 380V
High Light:

Bathroom Accessories Brass Castings Machinery

,

Low Pressure Brass Castings Machinery

,

High Efficiency LPDC Machine

Product Description

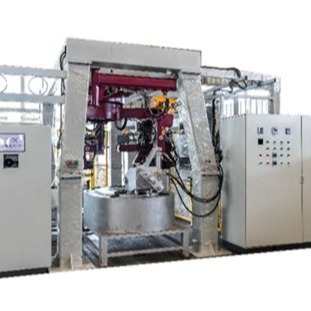

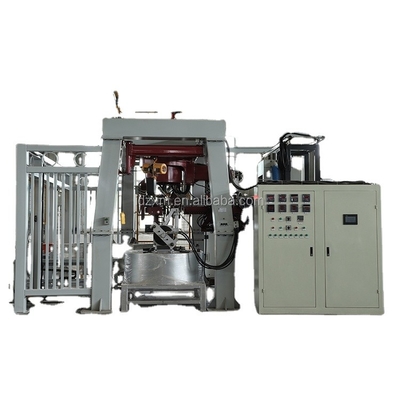

High Efficiency LPDC Bathroom Accessories Brass Castings Machinery Low Pressure Die Casting Machine





I. ADVANTAGES

1. Cost-efficient production

1.1. Multiple dies

1.2. Reduced melting loss

1.3. Increased yield (less circulating material)

1.4. One-man operation

1.5. Cost savings in subsequent stages of manufacture

1.6. For robot grinding low pressure die casting is a must



2. Humanization of the workstation

2.1. Ergonomic design of the workstation

2.2. Minimizing of smoke, heat, noise and danger of accidents



3. High quality castings and high-precision repeatability

3.1. Automated casting

3.2. Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube

II. CHARACTERISTIC

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 380 castings



2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Features

A. manipulator on a linear guiding device;

B. Manually setting of the cores;

C. Max die dimensions: 550 x400 mm;

D. Quick die change flanges;

E. Simple furnace control electrics;

F. Die cooling and coating in a blackwash bath;



III. EQUIPMENT STRUCTURE



The equipment consisting of main components:

  • Manipulator
  • Casting device
  • Induction furnace
  • Unloading device
  • Graphite bath
  • Die cleaning device
  • Crane
  • Manipulators
  • Hydraulic and drives system
  • Pneumatic system
  • Riser tube heating system
  • Combination of ingot loader and scrap loader
  • Control system
  • Combination of ingot loader and scrap loader
  • Other options are available on request

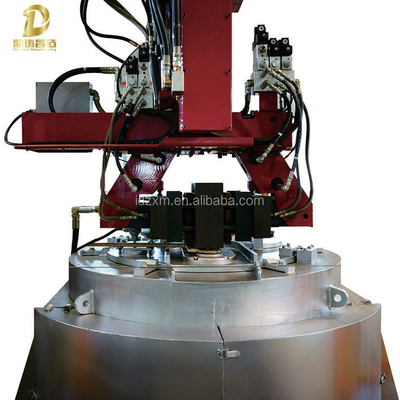

3.1 Manipulator

High Efficiency LPDC Bathroom Accessories Brass Castings Machinery Low Pressure 0

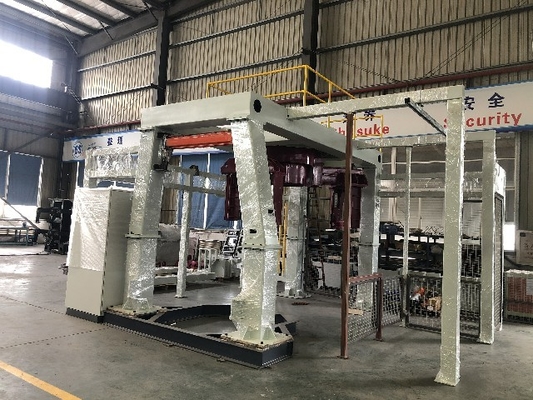

3.2 COMBINATION OF INGOT LOADER AND RECYCLING MATERIAL LOADER .

High Efficiency LPDC Bathroom Accessories Brass Castings Machinery Low Pressure 1



High Efficiency LPDC Bathroom Accessories Brass Castings Machinery Low Pressure 2

High Efficiency LPDC Bathroom Accessories Brass Castings Machinery Low Pressure 3

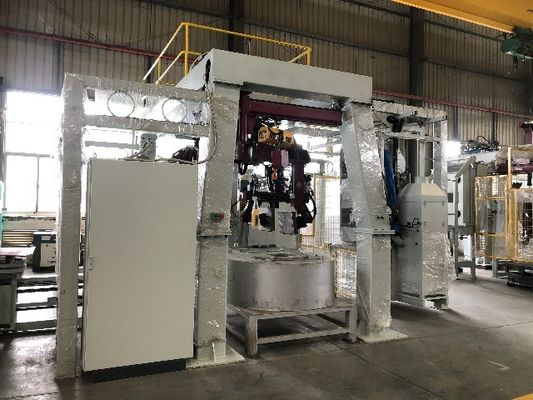

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 380 castings



2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Features

A. manipulator on a linear guiding device;

B. Manually setting of the cores;

C. Max die dimensions: 550 x400 mm;

D. Quick die change flanges;

E. Simple furnace control electrics;

F. Die cooling and coating in a blackwash bath;



In low pressure casting process molten metal is filled directly from the holding or casting furnace into the dies and sand mold from below, with low turbulence and an absolutely controlled filled casting process.

Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meters or valve bodies.

To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver the machines with freely programmable Siemens control.



FAQ:

Q1. Where is your factory located? How can I visit it?
A: Our factory is located in Xiamen city, Fujian province, China.
Q2. Are you produce the polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually, one machine has different molds and fixtures like a metal polishing machine, die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing that which client wants to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.
Q4. What is the MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
