Product Details:
|
|
Place of Origin: | CHINA |
---|---|
Brand Name: | DZ |
Certification: | CE ISO |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Packaging Details: | Packing in wooden cases suitable for sea transportation |
Delivery Time: | 30days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1 sets/month |
Detail Information |
|||
Channel Induction Furnace: | 1 Inductor With Two Channels In W-shape | Furnace Capacity: | 2800KG |
---|---|---|---|
Melting Capacity: | 700 KG/H | Inductors: | 2*80 KW |
Max. Speed Of Manipulator (S): | 35° / S | Total Weight: | 24T |
Total Power: | 180KW | Operating Voltage: | 380V |
High Light: | Sanitary Fittings Pressure Die Casting Machine,Brass Pressure Die Casting Machine,380V Sanitary Fittings Die Casting Machine |
Product Description

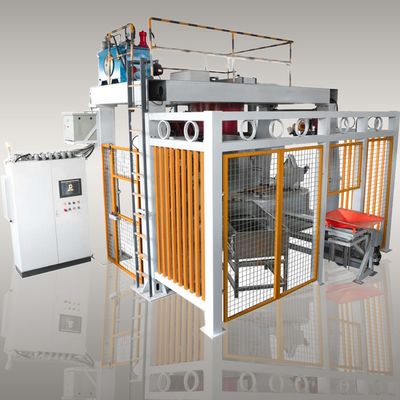

Factory Direct Sale Sanitary Fittings Brass Castings Low Pressure Die Casting Machine
I. ADVANTAGES
1. Cost-efficient production
1.1. Multiple dies
1.2. Reduced melting loss
1.3. Increased yield (less circulating material)
1.4. One-man operation
1.5. Cost savings in subsequent stages of manufacture
1.6. For robot grinding low pressure die casting is a must
2. Humanization of the workstation
2.1. Ergonomic design of the workstation
2.2. Minimizing of smoke, heat, noise and danger of accidents
3. High quality castings and high-precision repeatability
3.1. Automated casting
3.2. Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube
II. CHARACTERISTIC
Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.
1) Capacity per shift (8 hours): approx. 380 castings
2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.
3) Features
A. manipulator on a linear guiding device;
B. Manually setting of the cores;
C. Max die dimensions: 550 x400 mm;
D. Quick die change flanges;
E. Simple furnace control electrics;
F. Die cooling and coating in a blackwash bath;
III. EQUIPMENT STRUCTURE
The equipment consisting of main components:

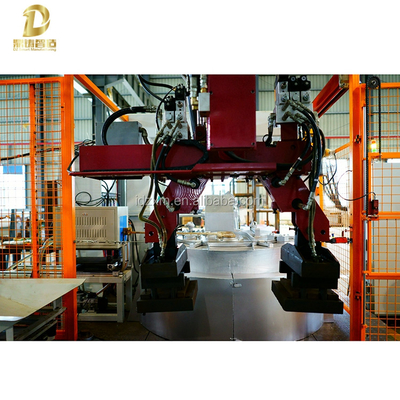

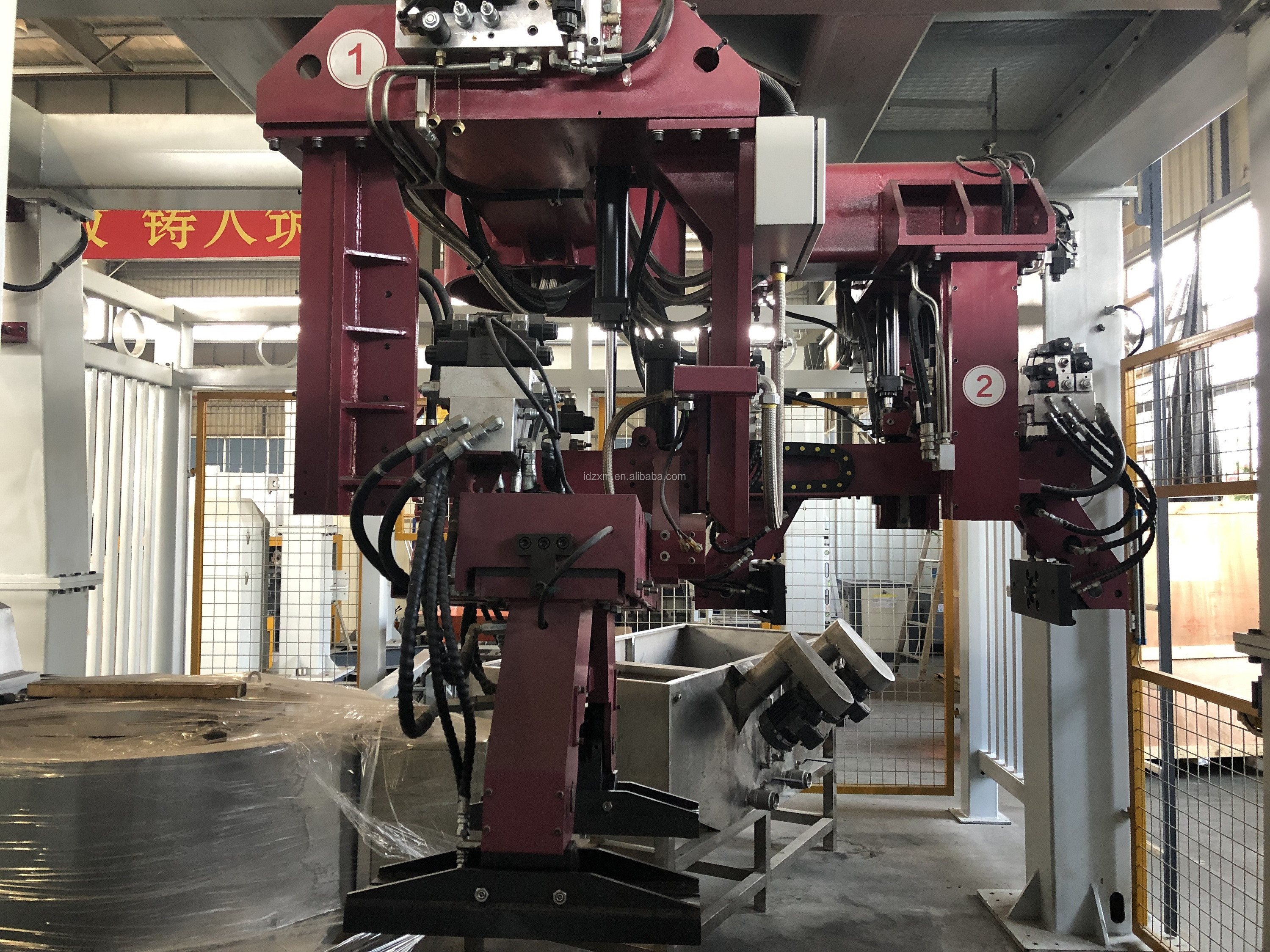

3.1 Manipulator
3.2 COMBINATION OF INGOT LOADER AND RECYCLING MATERIAL LOADER .
Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.
1) Capacity per shift (8 hours): approx. 380 castings
2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.
3) Features
A. manipulator on a linear guiding device;
B. Manually setting of the cores;
C. Max die dimensions: 550 x400 mm;
D. Quick die change flanges;
E. Simple furnace control electrics;
F. Die cooling and coating in a blackwash bath;
FAQ:
Q1. Where is your factory located? How can I visit it?
A: Our factory is located in Xiamen city, Fujian province, China.
Q2. Are you produce the polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually, one machine has different molds and fixtures like a metal polishing machine, die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing that which client wants to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.
Q4. What is the MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
