Foundry Application Rotor Sand Mixer Industrial Casting Sand Mixing Machine For Gravity Die Casting

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: LPDC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable

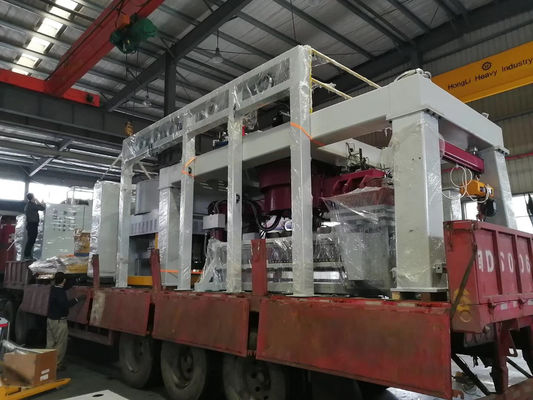

Packaging Details: international standard seaworthy package, wooden cases for low pressure die casting machine.
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets/per month

Detail Information

Condition: New Function: Die Casting Brass,aluminum,zinc Alloy Stainless Steel Etc.
Processing Types: Automatic Metal Casting After-sales Service: Field Installation, Commissioning And Training
Warranty: 1 Year
High Light:

Industrial Casting Sand Mixing Machine

,

Foundry Gravity Die Casting Machine

,

Gravity Die Casting Rotor Sand Mixer

Product Description

60 Ton 120 Ton Aluminium Die Casting Machine / Brass Die Casting Machine





The Low Pressure Die casting machine are mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories. To fulfill the different capacity requirement of customers, we have1-manipulator and 2-manipulators models for customer options.



Advanages:



1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;

2. High capacity ranges 400~450 castings per shift (8hrs);

3.Quick die change flange, 5 mins by munually ;

4. Furnace heating method: gas burner is standard and elctricity for option;

5. Max. die diemension 550*400mm;

6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;

7. Zinc Oxide dust cleaning unit for furnace cleaning;

8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;

9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);

10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)

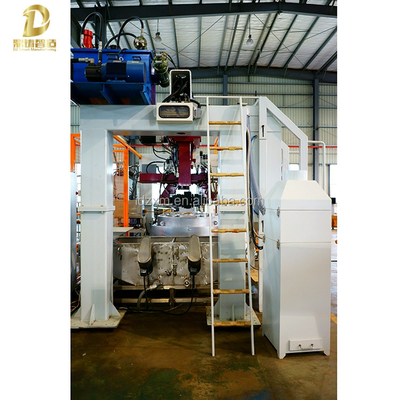

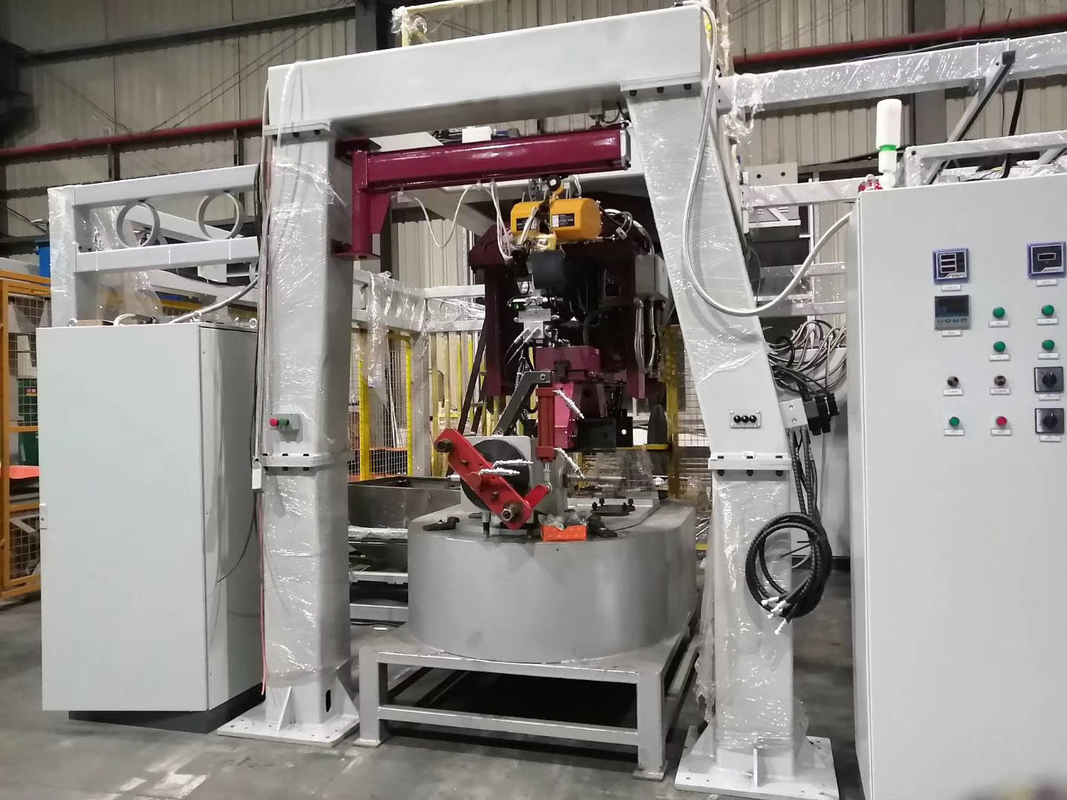

Low-pressure casting equipment is generally composed of main engine, hydraulic system, holding furnace, liquid pressure device, electrical control system and casting cooling system.

1.The low-pressure casting main machine is generally composed of mold closing mechanism, static mold core pulling mechanism, frame, casting ejection mechanism, parts taking mechanism, safety limit mechanism and other parts.

2.The heat preservation furnace mainly has the crucible type heat preservation furnace and the melting pool type heat preservation furnace two kinds.There are two types of crucible, graphite crucible and cast iron crucible.The melting pool type heat preservation furnace adopts the overall knotting process of refractory materials in the furnace chamber, and the silicon carbon rod radiation heating and heat preservation, which has the characteristics of large capacity, long service life and simple maintenance, and is extremely beneficial to the continuous production requirements, and is widely used by the modern low-pressure casting machine.

There are two kinds of connection between the heat preservation furnace and the main machine: fixed connection type and lifting and moving type.

3.The lifting pipe is a channel for diversion and shrinkage, which is sealed and connected with the crucible lid in a removable way to form a sealed container under pressure.Under the action of process pressure, the metal liquid is filled and solidified by the rising liquid pipe.When the pressure is relieved, the unsolidified alloy liquid falls back to the crucible through the riser, so it is very important to correctly design and use the low-pressure casting riser.

4.Low pressure casting, the key to obtain good casting is to correctly control the filling and pressurizing of the casting mold.According to the requirements of different castings, the liquid level pressure system should be able to be adjusted arbitrarily within the range of process parameters, the work should be stable and reliable, the structure should be convenient for maintenance.

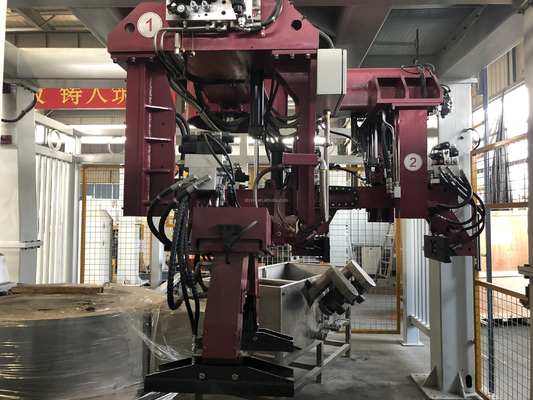

2- Manipulators Low Pressure Die Casting Machine Technical Parameters

Item

Specifications
Dimension ( L*W*H) 7000*7000*3680
Machine Power 180KW
Rated Voltage 380V
Manipulator Quantity 2
Maximum Weight of Die 180KG
Maximum Dimension of Die 500*400*250
Furnace Power 2*80KW
Furnace Melting Capacity 520Kg
Furnace Quantity 1
Die Cleaning Box Quantity 1
Feeder Quantity 1
Blackwash Tank Quantity 1
Hoist Quantity 1
Lift Tube Quantity 2
Pneumatic Pressure 6KG
Water Pressure 3KG
Maximum Furnace Temperature 1250℃
Cooling Water Temperature 20±2℃
Maximum Speed of Manipulator 9R/Min.
Maximum Die Clamping Stroke 370mm
Die Bath Angle 0-90º
Ejector Pin Pressure 540KG
Ejector Pin Stroke 40mm
Pouring Pressure 50-1200bar
Maximum Lift Weight of Hoist 500kg



Foundry Application Rotor Sand Mixer Industrial Casting Sand Mixing Machine For Gravity Die Casting 0
