Humanized Fully Automatic Pouring LPDC Machine For Plumbing Fittings

Product Description

ADVANTAGES

1. Cost-efficient production

• Multiple cavity dies
• Reduced melting loss
• Increased yield (less circulating material)
• One-man operation
• Cost savings in subsequent stages of manufacture
• For robotic grinding low pressure die casting is a must

2. Humanization of the workstation

• Ergonomic design of the workstation
• Minimizing of smoke, heat, noise and danger of accidents

3. High quality castings and high-precision repeatability

• Automated casting
• Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube

2-Manipulators

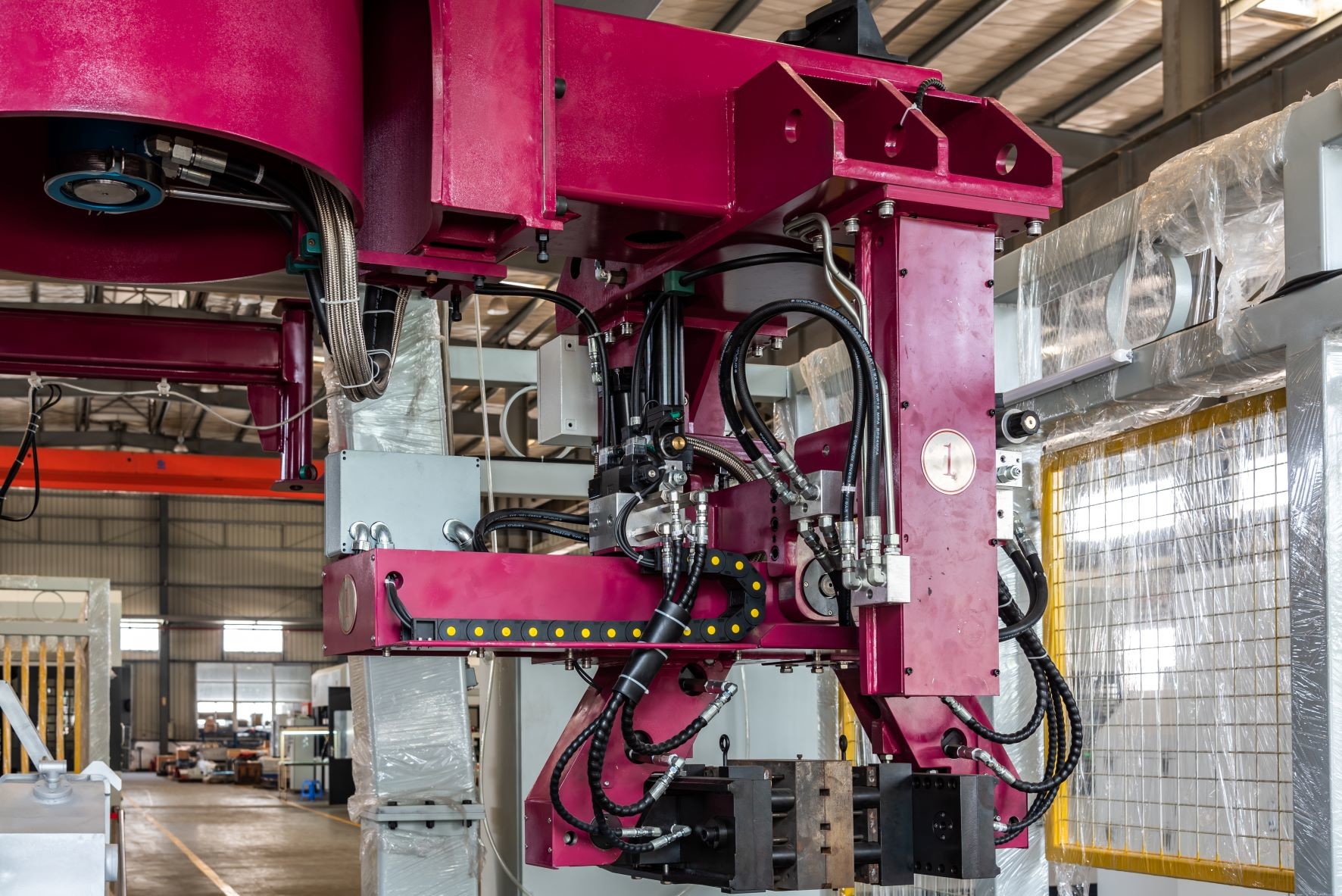

Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.

1) Capacity per shift (8 hours): approx. 760 castings

2) Fully automation of the low-pressure die-casting process, short mold change time and flexible application, which is very suitable for mass casting production;

3) Specifications

· 2 manipulators on a rotary device, operated independently. Operating Parameters can be edited independently. Two       manipulators either work at the same time; or one set changes the die, or the other set is under maintenance.

· Manually setting of the cores

· Max die dimensions: 600 x400x240 mm

· Quick die change flanges

· Simple furnace control electrics

· Die cooling and coating in a blackwash bath

· Different die castings are equipped with separated feeders, graphite baths and manipulators.

· Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.

· Drive by servo motor, with high precise, stable and efficiency performance.
