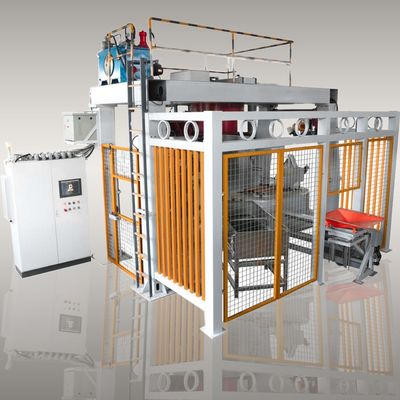

380V Servo Motor Driven Two Manipulators LPDC Machine

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Packing in wooden cases suitable for sea transportation
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 sets/month

Detail Information

Channel Induction Furnace: 1 Inductor With Two Channels In W-shape Furnace Capacity: 2800KG
Melting Capacity: 700 KG/H Inductors: 2*80 KW
Max. Speed Of Manipulator (S): 35° / S Total Weight: 24T
Total Power: 180KW Operating Voltage: 380V
High Light:

Two Manipulators LPDC Machine

,

380V LPDC Machine

,

380V Die Casting Machine

Product Description


2-Manipulators Die Casting Low Pressure Die Casting Machine Manufacture Template Cast Machine
Number of robots 1
Electric furnace power 3*35KW
Electric furnace melting rate 350KG
Air pressure 6KG
Water source pressure 3KG
Maximum furnace temperature 1250
Cooling water temperature 18-22
Robot's fastest moving speed 20m/min
Maximum lifting weight 500KG







CHARACTERISTIC

  • In low pressure casting process molten metal is filled directly from the holding or casting furnace into the dies and sand mould from below, with low turbulence and an absolutely controlled filled casting process.



  • Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.



  • To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver the machines with freely programmable siemens control.





ADVANTAGES



1. Cost-efficient production

  • Multiple cavity dies
  • Reduced melting loss
  • Increased yield (less circulating material)
  • One-man operation
  • Cost savings in subsequent stages of manufacture
  • For robotic grinding low pressure die casting is a must



2. Humanization of the workstation

  • Ergonomic design of the workstation
  • Minimizing of smoke, heat, noise and danger of accidents



3. High quality castings and high-precision repeatability

  • Automated casting
  • Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube



2-Manipulators

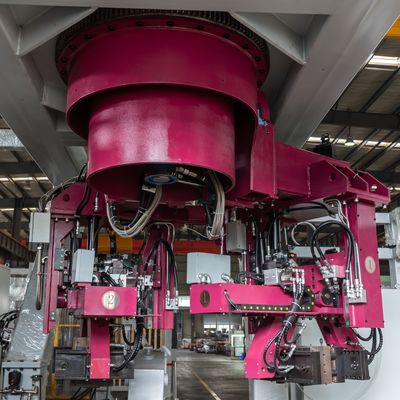

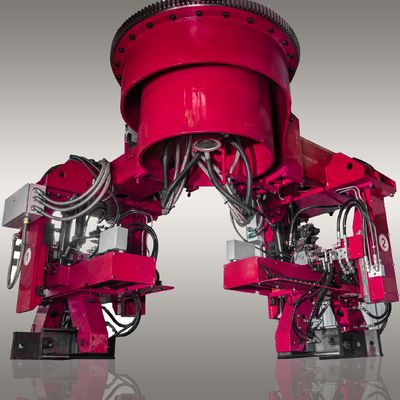

Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 760 castings



2) Fully automation of the low-pressure die-casting process, short mold change time and flexible application, which is very suitable for mass casting production;



3) Specifications



· 2 manipulators on a rotary device, operated independently. Operating Parameters can be edited independently. Two       manipulators either work at the same time; or one set changes the die, or the other set is under maintenance.

· Manually setting of the cores

· Max die dimensions: 600 x400x240 mm

· Quick die change flanges

· Simple furnace control electrics

· Die cooling and coating in a blackwash bath

· Different die castings are equipped with separated feeders, graphite baths and manipulators.

· Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.

· Drive by servo motor, with high precise, stable and efficiency performance.
