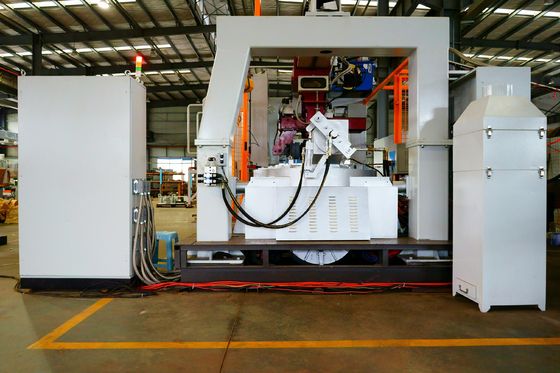

Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Packing in wooden cases suitable for sea transportation
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 sets/month

Detail Information

Channel Induction Furnace: 1 Inductor With Two Channels In W-shape Furnace Capacity: 2800KG
Melting Capacity: 700 KG/H Inductors: 2*80 KW
Max. Speed Of Manipulator (S): 35° / S Total Weight: 24T
Total Power: 180KW Operating Voltage: 380V
High Light:

Die Casting Machine 380V

,

Automatic Pouring Die Casting Machine

,

Die Casting Equipment 380V

Product Description

Low Pressure Die Casting Machine Automatic Pouring Casting With Melting Furnace Oven For Sand Casting



Low Pressure Die Casting Machine Same KWC INDUGA Machine In Lixil Group

Pneumatic Core Shooter Machine Core Blower For Sand Casting Gravity Die Casting Machine Low Pressure Die Casting Machine

380V 180KW Low Pressure Die Casting Machine For Brass Valve Body

Low Pressure Die Casting Machines For Brass For The Casting Of Sanitary Fittings, Faucets, Water Meter Or Valve Bodies.





I. ADVANTAGES

1. Cost-efficient production

1.1. Multiple dies

1.2. Reduced melting loss

1.3. Increased yield (less circulating material)

1.4. One-man operation

1.5. Cost savings in subsequent stages of manufacture

1.6. For robot grinding low pressure die casting is a must



2. Humanization of the workstation

2.1. Ergonomic design of the workstation

2.2. Minimizing of smoke, heat, noise and danger of accidents



3. High quality castings and high-precision repeatability

3.1. Automated casting

3.2. Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube

II. CHARACTERISTIC

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 380 castings



2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Features

A. manipulator on a linear guiding device;

B. Manually setting of the cores;

C. Max die dimensions: 550 x400 mm;

D. Quick die change flanges;

E. Simple furnace control electrics;

F. Die cooling and coating in a blackwash bath;







3.1 Manipulator

Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 0Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 1Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 2Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 3Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 4



3.2 COMBINATION OF INGOT LOADER AND RECYCLING MATERIAL LOADER .

Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 5Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 6Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 7Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 8Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 9Automatic Pouring Low Pressure Die Casting Machine 380V With Melting Furnace 10

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 380 castings



2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Features

A. manipulator on a linear guiding device;

B. Manually setting of the cores;

C. Max die dimensions: 550 x400 mm;

D. Quick die change flanges;

E. Simple furnace control electrics;

F. Die cooling and coating in a blackwash bath;
