| Brand Name: | DZ |
| Model Number: | NC-64 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

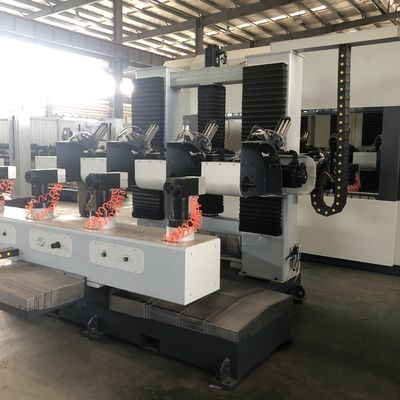

Sanitary fittings and accessories automatic Universal Polishing Machine
Rotary Automatic Polishing Machine Easy Operation No Need Edit Program No Need Dusting No Need Debug
Metals Brass Tube Fitting Grinding Polishing ROBOT Automatic Polishing Machine For Stainless Steel
Automatic Polishing Machine CNC 6 Axis Faucet Polishing Machine
Precision polishing.
- Uniform polishing quality without deformation of the processed parts.
- High production. Simultaneous polishing of two equal parts in each polishing cycle.
- Flexible production. Change of series in the minimum time. The time invested in the preparation of the machine for changing the type of part to polish is about 10 minutes.
- Quick replacement of the fixtures.
- Quick replacement of the polishing mops.
- Cost-reduction in the amount of fixtures.
- Important reduction in mops and polishing compounds consumption.
- Polishing system avoiding excessive temperature of the parts during the working process.
- Quick and easy programming. Interactive Teach System.
- High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.
TECHNICAL PARAMETERS
| No | Items | Specifications |
| 1 | Dimensions (L*W*H) | 3000*3100*2900mm |
| 2 | Machine Power | 17KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1100 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±60° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |
|
