Servo Motor Driven LPDC Machine ISO For Brass Faucet Mixer Bodies
| Brand Name: | DZ |
| Model Number: | RD-5040-S |
| MOQ: | 1 set |
| Packaging Details: | Packed in wooden cases marked for international transportation |
| Payment Terms: | L/C, , T/T, Western Union, MoneyGram |
Servo Motor Driven LPDC Machine
,Brass Faucet Mixer Bodies LPDC Machine
,brass die casting machine ISO

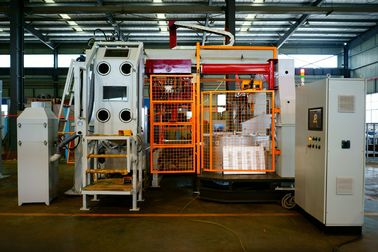

Automatic Low Pressure Die Casting Machine for Brass Faucet Mixer Bodies
Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.I.Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.
• Max die dimensions: 600 x400x240 mm
• Quick die change flanges
• Simple furnace control electrics
• Productivity per shift (8 hours): 700 castings
• Two dies can be used simultaneously, same or different

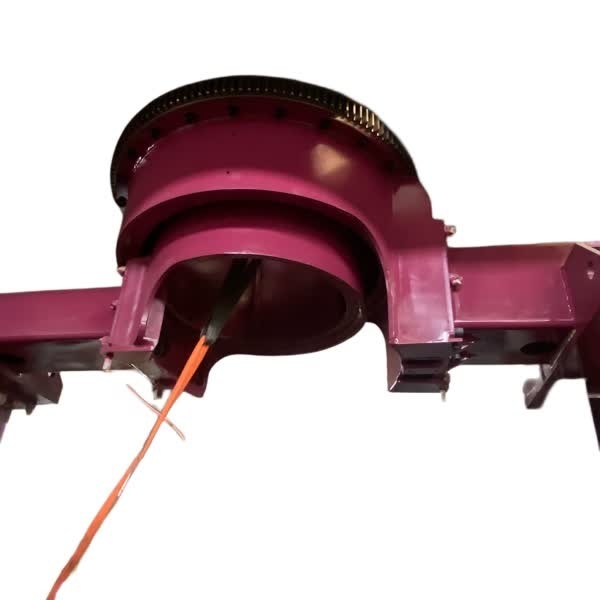

• Two independent rotary manipulators with electric and hydraulic driven movements
• One pressurized 160 kW furnace equipped with electro-mechanic lifting system
• Only one operator is required
• Maximum die diameter of 600 mm and weight of 200 Kg
• Two independent conveyors for casting unloading
• Stainless steel dipping tanks
• Drive by servo motor, with high precise, stable and efficiency performance.
• Two dies can be used simultaneously, same or different
• Pre-arrangement for Teleservice (technical remote assistance)
• Pre-arrangement for SPC (statistical process control - remote machine’s data collection)
• Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.
II.EQUIPMENT STRUCTURE
The equipment consisting of main components:
- Manipulator
- casting device
- induction furnace
- unloading device
- graphite bath
- die cleaning device
- crane
- manipulators
- hydraulic and drives system
- pneumatic system
- riser tube heating system
- control system
other options are available on request
