| Brand Name: | DZ |
| Model Number: | LD5540S-2 |
| MOQ: | 1Unit |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

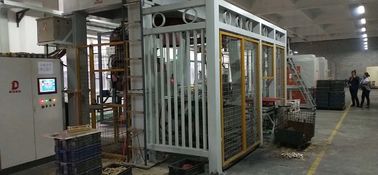

1. LD5540S-2 Manipulators (Fully automatic machine)
Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.
1) Capacity per shift (8 hours): approx. 760 castings
2) Specifications
A. 2 manipulators on a rotary device,operated independently. Operating Parameters can be edited independently.Two manipulators either work at the same time; or one set changes the die,or the other set is under maintenance.
B. Manually setting of the cores
C. Max die dimensions: 550 x400 mm
D. Quick die change flanges
E. Simple furnace control electrics
F. Die cooling and coating in a blackwash bath
G. Different die castings are equipped with separated feeders, graphite baths and manipulators.
H. Large furnace melting rate, capacity is up to 520 kg/h, for the operation with 2 manipulators working together.

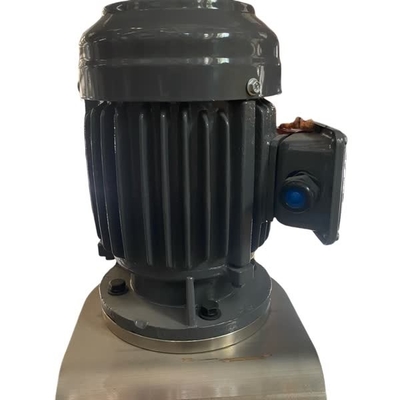

I. Drive by servo motor, with high precise, stable and efficiency performance.
2.EQUIPMENT STRUCTURE
Theequipment consisting of main components:
Video:https://www.youtube.com/watch?v=whYkgnMNCFw
|
|
