Automated Industrial Brass Low Pressure Die Casting Machine For Faucets

China Automated Industrial Brass Low Pressure Die Casting Machine For Faucets supplier
Automated Industrial Brass Low Pressure Die Casting Machine For Faucets supplier Automated Industrial Brass Low Pressure Die Casting Machine For Faucets supplier

Large Image :  Automated Industrial Brass Low Pressure Die Casting Machine For Faucets

Product Details:

Place of Origin: negotiable
Brand Name: DZ
Certification: CE
Model Number: LD5540-D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3sets
Contact Now
Detailed Product Description
Material: Carbon Steel Application: Industry
Dimensions: 6000X5250X3400 Process: Low Pressure Die Casting
Weight: 8000kg Quality Control: 100% Inspected Casting Parts



LOW PRESSURE DIE CASTING MACHINE



Applications:

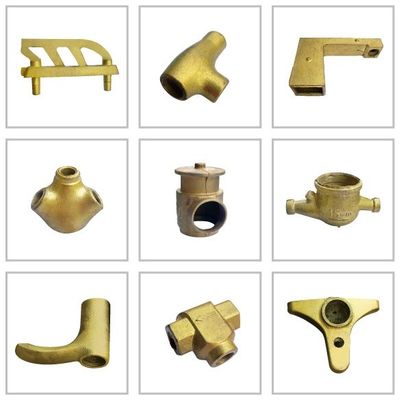

The Low Pressure Die casting machine are mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories. To fulfill the different capacity requirement of customers, we have 1-manipulator and 2-manipulators models for customer options.



Advanages:



1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;

2. High capacity ranges 400~450 castings per shift (8hrs);

3.Quick die change flange, 5 mins by munually ;

4. Furnace heating method: gas burner is standard and elctricity for option;

5. Max. die diemension 550*400mm;

6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;

7. Zinc Oxide dust cleaning unit for furnace cleaning;

8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;

9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);

10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)



Technical Parameters:



CodeTECHNICAL DESCRIPTIONModel: LD5540-D
1External Size: L*W*H (mm)5000*4600*3400
2Power Rate (KW)125
3Operating Voltage (V)380
4Qty. of Manipulator (sets)1
5Max. Die Mould Weight (KG)180
6Max. Die Mould Dimensions(mm)550*400*250
7Power of Electric Furnace(KW)3*35
8Furnace Melting Capacity (kg/hr)350
9Qty. of Furnace (set)1
10Qty. of Mould Cleaning Bin (set)1
11Qty. of Feeder (sets)1
12Qty. of Grahite Bath (set)1
13Qty. of Crane (set)1
14Max. Loading of Crane (KG)500
15Qty. of Tube (pieces)3
16Gas Pressure (KG)6
17Water Pressure(KG)3
18Max.Temp. of Furnace (℃)1250
19Temp.of Cooling Water(℃)20±2
20Max. Speed of Manipulator20 meters/min.
21Max. Clamping Stroke of Mould (mm)370
22Angle Range of Mould Soaking (°)0~90
23Pressure of Thimble (KG)540
24Stroke of Thimble (mm)50
25Pressure of Casting (Bar)50~1200

Please contact us for more specifications with your inquiry today! Our honor to sever you with our best service and highest quality.
