Brass / Zinc Alloy Lpdc Machine Rotary Moving Automated Industrial Equipment

China Brass / Zinc Alloy Lpdc Machine Rotary Moving Automated Industrial Equipment supplier
Brass / Zinc Alloy Lpdc Machine Rotary Moving Automated Industrial Equipment supplier Brass / Zinc Alloy Lpdc Machine Rotary Moving Automated Industrial Equipment supplier

Large Image :  Brass / Zinc Alloy Lpdc Machine Rotary Moving Automated Industrial Equipment

Product Details:

Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: NONE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2sets/per month
Contact Now
Detailed Product Description
Material: Carbon Steel Application: Industry
Dimensions: 6000x5250x3400 Service: Customized OEM,OEM/ODM Die Casting Mechanic Parts
Process: Low Pressure Die Casting,Die Casting+Machining,Die Casting-deburring- Machinery,Casting. Deburring .Drilling .Threading Product Name: Die Casting Zinc Alloy
Type: Type OEM Die/sand/gravity/Low Pressure Die Casting Item: Low Pressure Die Casting Zinc Alloy Die Casting Auto Parts Aluminum
Weight: 8000KG Quality Control: Professional Inspection

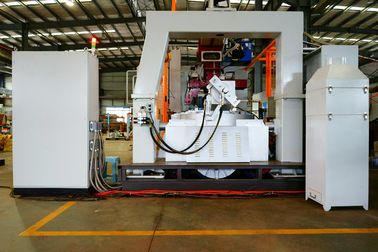

2-Manipulators Automatic LPDC Low Pressure Die Casting Machine

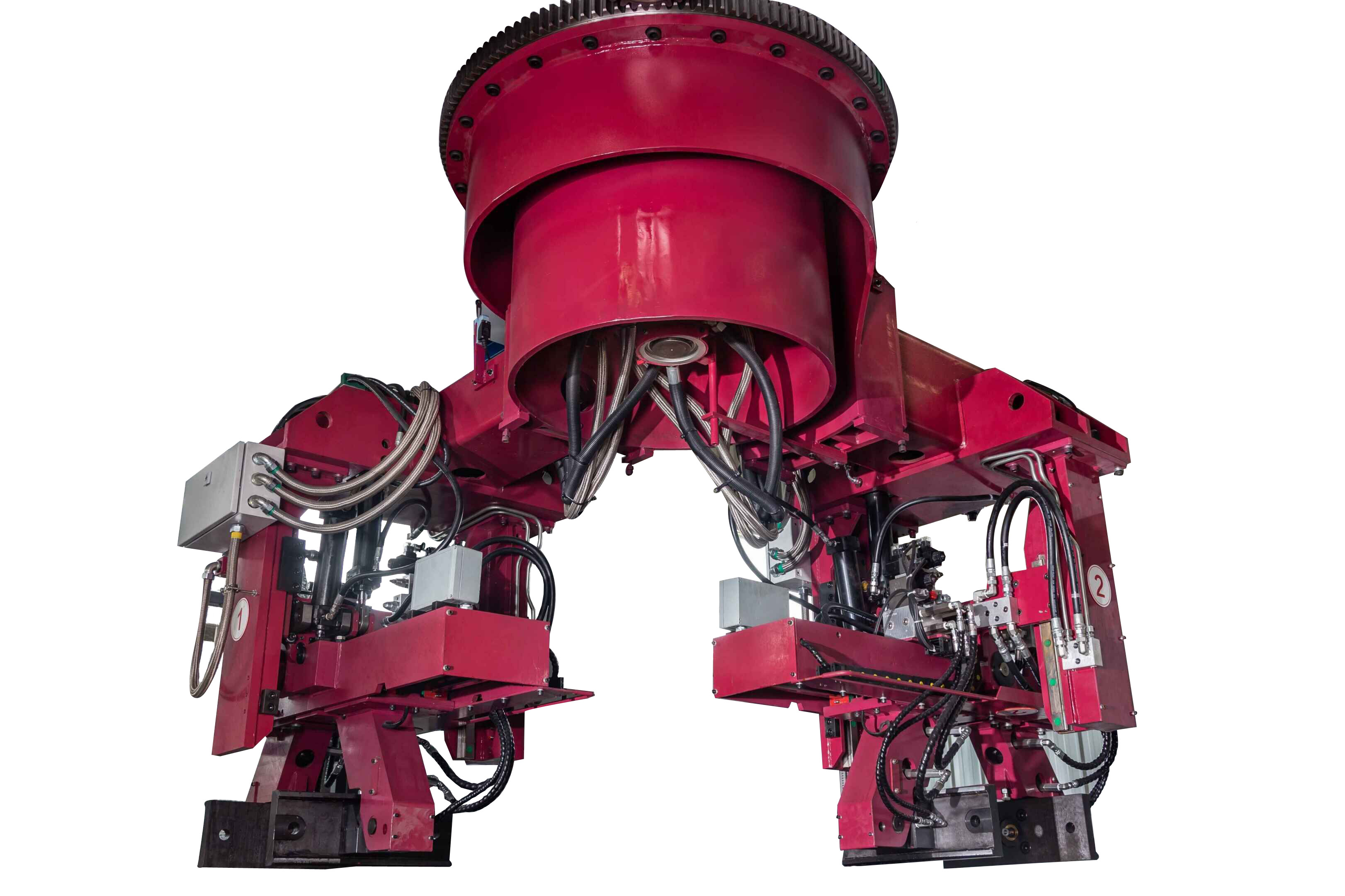

The LPDC5540-S equipment consisting of main components: casting device, induction furnace, receiving car, graphite bath, die cleaning device,crane, two manipulators, hydraulic and drives system, pneumatic system, riser tube heating system and control system etc.



Applications:



The Low Pressure Die casting machine are mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories.



Advanages:



1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;

2. High capacity ranges 400~450 castings per shift (8hrs);

3.Quick die change flange, 5 mins by munually ;

4. Furnace heating method: gas burner is standard and elctricity for option;

5. Max. die diemension 550*400mm;

6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;

7. Zinc Oxide dust cleaning unit for furnace cleaning;

8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;

9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);

10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)



Technical Parameters:



Code Item Model: LPDC5540-S
1 External Size: L*W*H (mm) 6000*6000*3400
2 Power Rate (KW) 180
3 Operating Voltage (V) 380
4 Qty. of Manipulator (sets) 2
5 Max. Die Mould Weight (KG) 180
6 Max. Die Mould Dimensions(mm) 550*400*250
7 Power of Electric Furnace(KW) 2*80
8 Furnace Melting Capacity (kg/hr) 520
9 Qty. of Furnace (set) 1
10 Qty. of Mould Cleaning Bin (set) 1
11 Qty. of Feeder (sets) 2
12 Qty. of Grahite Bath (set) 2
13 Qty. of Crane (set) 1
14 Max. Loading of Crane (KG) 500
15 Qty. of Tube (pieces) 3
16 Gas Pressure (KG) 6
17 Water Pressure(KG) 3
18 Max.Temp. of Furnace (℃) 1250
19 Temp.of Cooling Water(℃) 20±2
20 Max. Speed of Manipulator 35° / Sec.
21 Max. Clamping Stroke of Mould (mm) 370
22 Angle Range of Mould Soaking (°) 0~90
23 Pressure of Thimble (KG) 540
24 Stroke of Thimble (mm) 50
25 Pressure of Casting (Bar) 50~1200





Equipment Size: L*W*H

LD5540-D

6500*6000*3400mm

LD5540-S

7000*7000*3687mm

Total Weight 13T
Total Power 125KW 180KW
Operating Voltage 380V 380V
