Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products

China Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products supplier
Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products supplier Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products supplier Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products supplier

Large Image :  Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products

Product Details:

Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: LPDC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets/per month
Contact Now
Detailed Product Description
Dimensions: 6000X5250X3400(H) Power: 125KW
Voltage: 380V Manipulator Qty: 2
Max. Weight Of Die: 180KG Max. Dimension Of Die: 500X400X250mm
Furnace Power: 3X35KW Furnace Qty: 1
Name: Copper Die Casting Machine

Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products

Advantages of LPDC DZ

CODE BASIC EQUIPMENT LPDC1-Manipulator LPDC2-Manipulator
1 Manipulator Light weight,hight running speed
2 Furnace 1.The electric furnace remains stationary;Die automatic falling and smooth running,Casting quality is guaranteed. 2.Large melt content up to 1800kg;There's very little change in temperature after feed the stove
3.The furnace is round and does not deform easily,It is effectual to keep warm, energy conservation.90KW was bable to satisfy 1-Manipulator
1.The electric furnace remains stationary;Die automatic falling and smooth running,Casting quality is guaranteed. 2.Large melt content up to 2000kg;There's very little change in temperature after feed the stove.No need for frequent feeding. 3. Energy conservation:Two manipulator share an electric furnace can save the cost of electric furnace insulation. can save about 800 yuan one day

3 operating system One person operates a equipment One person operates 2-manipulators like One person operates 2 equipments and Can produce two different products at the same time
4 Riser tube 3 riser tubes,be Able to meet different product process requirements.
5 Riser Tube heating method 1. The riser tube on furance cover are with ceramic sealings; 2. Riser Tube heating method: Medium frequency electricity heating, power 60KW; average power consumption: 7KW; 3. Heating time till 900℃ ≈ 90 seconds 4. Contains water cooling system.
6 hydraulic system 1.Components supplies with internationa high quality brands: SUN,REXROTH,YUKEN etc. 2.The components are special used, with performances of high stability, strong protection from contamination, suitable for water-based hydraulic oil operation etc. 3.The hydraulic oil ( Ethylene glycol ) works at low temperature, stable quality, not get deteriorated. 4.Servo motor driving, no vibration. saves 40% of the electricity.
7 Die Cleaning Chamber 1.Die Cleaning Chamber: shot blasting device (copper powder blasting) for the cleaning of the dies. 2.The dies can be moved to cleaning chamber automatically for cleaning process @ heavy oxidized contaminations condition.
8 Automatic picking 1.Receiving car: with performances of moving up-down; forward & backward; 2.Transport the casting products to storage vehicles directly.
9 Change the mould Quick die change flange, 2 mins by munually ,There is a dedicated mold change station
10 Function It has the function of low-pressure casting of copper alloy and zinc alloy.

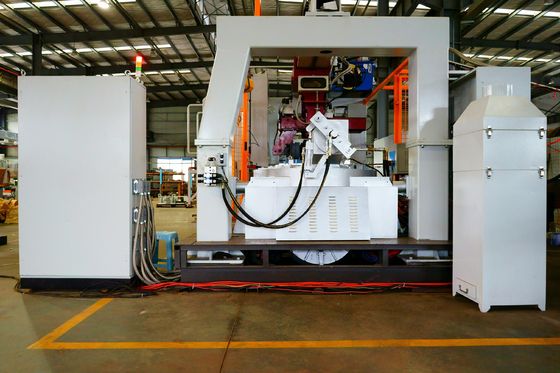

Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products

Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products

Copper / Zinc Alloy Low Pressure Die Casting Machine For Hardware Products
