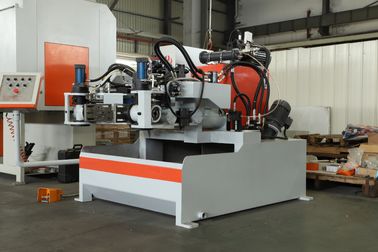

Semi Automatic Gravity Die Casting Machine / Aluminum Alloy Gravity Casting Pouring Machine
| Brand Name: | DZ |
| Model Number: | HZ-450 |
| MOQ: | 1Set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Detail Information
Place of Origin:
China(Mainland)
Certification:
CE
Material:
Carbon Steel
Condition:
New
After-sales Service:
Engineers Can Serve Overseas
Name:
Aluminium Die Casting Machine
Voltage:
380V
Type:
Casting Machine
Delivery Time:
2weeks
Supply Ability:
30sets/per month
Highlight:
automatic die casting machine
,brass die casting machine
Product Description
Semi Automatic Gravity Die Casting Machine / Aluminum Alloy Gravity Casting Pouring Machine
1. Machine Overview
With the vigorous development and diversification of copper processing industry, the production technology of copper processing industry has been constantly updating and improving. In order to meet the production needs, our company specially designed HZ-450 gravity die casting machine according to the principle of gravity casting. It is suitable for Brass gravity casting, with simple operation, novel design and reasonable price.
This machine features:
- the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
- it is suitable for gravity die casting of brass and ferroalloy.
- it can be direct casting, side casting, twice casting and mixed casting.
- it is possible to individually adjust the cooling time of the die.
- it facilitates the decomposition, combination and cleaning of dies.
- It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.
- there is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
- the machine can store the die casting operation program and set the password accordingly.
2. Main Technical Specifications
| # | Name | Specification |
| 1 | Max. Die size | Φ450mm |
| 2 | Max. Die working distance | 450mm |
| 3 | Max. Die Weight | 130kg |
| 4 | Max. Clamping distance | ≦250mm |
| 5 | Hydraulic Motor | 5Hp,6 degree |
| 6 | Hydraulic Pressure | 4～6Kpa |
| 7 | Side Casting Angle | 0°～90° |
| 8 | Direct Casting Angle | 0°～110° |
| 9 | Stirring motor | 0.75kw,6 degree ×2 |
| 10 | Cooling tank | 850kg |
| 11 | Hydraulic oil volume | 163L |
| 12 | Machine Power | 5.5kw |
| 13 | Machine Weight | 1750kg |
| 14 | Dimension(LXWXH) | 2250mm×2160mm×1560mm |
