Brand Name: | DZ |
Model Number: | 2-Manipulator |
MOQ: | 1Set |
Price: | Negotiable |
Packaging Details: | wood |
Payment Terms: | L/C, T/T, Western Union |

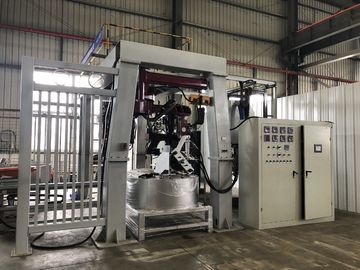

Fully Automatic Brass Die Casting Machine With Rotary Portal Two Manipulators / Furnace
I. Feature

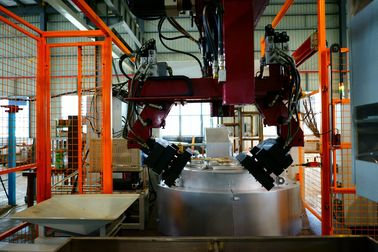

1. Fully automatic machine with rotary portal, two manipulators and one furnace.
2. Stands out for its two independent drive units for each manipulator. During the stop of one of the two manipulators for cleaning or die charging, the second manipulator continues its work.
II.Technical Parameters
2- Manipulators Low Pressure Die Casting Machine Technical Parameters |
||
Code |
Item |
Specifications |
1 | Dimension ( L*W*H) | 7000*7000*3680 |
2 | Machine Power | 180KW |
3 | Rated Voltage | 380V |
4 | Manipulator Quantity | 2 |
5 | Maximum Weight of Die | 180KG |
6 | Maximum Dimension of Die | 500*400*250 |
7 | Furnace Power | 2*80KW |
8 | Furnace Melting Capacity | 520Kg |
9 | Furnace Quantity | 1 |
10 | Die Cleaning Box Quantity | 1 |
11 | Feeder Quantity | 1 |
12 | Blackwash Tank Quantity | 1 |
13 | Hoist Quantity | 1 |
14 | Lift Tube Quantity | 2 |
15 | Pneumatic Pressure | 6KG |
16 | Water Pressure | 3KG |
17 | Maximum Furnace Temperature | 1250℃ |
18 | Cooling Water Temperature | 20±2℃ |
19 | Maximum Speed of Manipulator | 9R/Min. |
20 | Maximum Die Clamping Stroke | 370mm |
21 | Die Bath Angle | 0-90º |
22 | Ejector Pin Pressure | 540KG |
23 | Ejector Pin Stroke | 40mm |
24 | Pouring Pressure | 50-1200bar |
25 | Maximum Lift Weight of Hoist | 500kg |
Click the link to view video:
https://www.youtube.com/watch?v=zmWTnfFq-mM
