High Productivity Low Pressure Die Casting Process For Metal ISO Approved

Brand Name: DZ
Model Number: LPDC5540
MOQ: 1Set
Price: Negotiable
Packaging Details: wood
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China(Mainland)
Certification:
CE ISO
Conditio:
New
Function:
Die Casting Brass,aluminum,zinc Alloy Stainless Steel Etc.
Processing Types:
Automatic Metal Casting
Warranty:
1 Year
Application:
Metal
After-sales Service Provided:
Field Installation, Commissioning And Training, Video Technical
Supply Ability:
10 Set/Sets per Month
Highlight:

aluminium pressure die casting machine

,

low pressure die casting process

Product Description

low pressure die casting process is the most economical solution for the production of high-quality brass parts

EQUIPMENT STRUCTURE

The low-pressure die casting process is the most economical solution for the production of high-quality brass parts, e.g. sanitary fittings, valve housings, water meter housings and building hardware.

Thelow-pressure die casting consisting of main components: casting device, induction furnace, receiving car, graphite bath, die cleaning device,crane, manipulators, hydraulic and drives system, pneumatic system, riser tube heating system and control system etc.

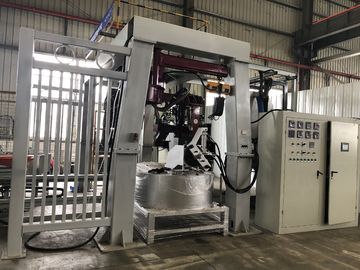

High Productivity Low Pressure Die Casting Process For Metal ISO Approved 0

 High Productivity Low Pressure Die Casting Process For Metal ISO Approved 1

High Productivity Low Pressure Die Casting Process For Metal ISO Approved 2



Technical Parameters
Code Item 1- Manipulator 2- Manipulators
1 Dimensions ( L*W*H) 5000*4600* 3400 7000*7000*3680
2 Machine Power 125KW 180KW
3 Rated Voltage 380V 380V
4 Manipulator Quantity 1 2
5 Maximum Weight of Die 180KG 180KG
6 Maximum Dimension of Die 500*400*250 500*400*250
7 Furnace Power 3*35KW 2*80KW
8 Furnace Melting Capacity 350Kg 520Kg
9 Furnace Quantity 1 1
10 Die Cleaning Box Quantity 1 1
11 Feeder Quantity 1 1
12 Blackwash Tank Quantity 1 1
13 Hoist Quantity 1 1
14 Lift Tube Quantity 3 2
15 Pneumatic Pressure 6KG 6KG
16 Water Pressure 3KG 3KG
17 Maximum Furnace Temperature 1250℃ 1250℃
18 Cooling Water Temperature 20±2℃ 20±2℃
19 Maximum Speed of Manipulator 20m/ Min. 9R/Min.
20 Maximum Die Clamping Stroke 370mm 370mm
21 Die Bath Angle 0-90º 0-90º
22 Ejector Pin Pressure 540KG 540KG
23 Ejector Pin Stroke 40mm 40mm
24 Pouring Pressure 50-1200bar 50-1200bar
25 Maximum Lift Weight of Hoist 500kg 500kg



Click the link to view video:

https://www.youtube.com/watch?v=zmWTnfFq-mM
