|Place of Origin:||China(Mainland)|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set|
|Delivery Time:||30 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10 Set/Sets per Month|
|Mahine Power:||125KW||Rated Voltage:||380V|
|Function:||Die Casting Brass,aluminum,zinc Alloy Stainless Steel Etc.||Processing Types:||Automatic Metal Casting|
Low Pressure Automatic Sand Casting Machine,
125KW Automatic Sand Casting Machine,
LPDC5540 Metal Die Casting Machine
125KW 380V Automatic Sand Casting Machine Low Pressure Metal Die Casting
Automatic Sand Casting Machine , Metal Die Casting Machine 6000*5250*3400 Dimensions

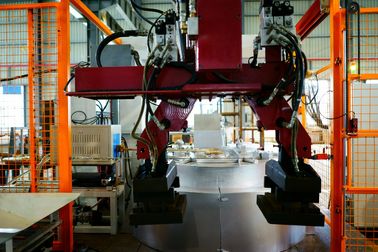

The LPDC5540 equipment consisting of main components: casting device, induction furnace, receiving car, graphite bath, die cleaning device,crane, manipulators, hydraulic and drives system, pneumatic system, riser tube heating system and control system etc.
1. The function and parameters of the touch panel are set by Chinese/ English
1.1.Operation Control System: With Siemens PLC control device;
1.2 Program Verstions: CN and EN
1.3 Touch screen panel + Team Viewer and Industrial PC control.
1.4 Alarm and troubles shooting codes presentation, for problems fixing quickly and maintenance works.
2.1 Manipulator is with servo motor driving unit, linear guilding rail system, to move the manipulator in horizontal and vertical direction: faster, more stable and high precision control performances.
3.1 Induction furance power is 105KW;
3.2 Large melt content up to 1800kg,
3.3 Melting capacity is 350KG/H, stepless power adjustment;
3.4 With 3*35KW inductors, each inductor is water cooling, water flow detection device on water jackets;
3.5 Induction furnace heating methods: standard with gas burner, electricity heating for option ( extra cost)
3.6 Hydraulic opening device mounted on furnace cover.
3.7 With material feeding cover and desert cleaning cover, automatically control;
3.8 Furnace Temperature history recording and inspection control progr.
3.9 Furnace opening methods: manually / automatically program
4.1with performances of moving up-down; forward & backward;
4.2 Transport the casting products to storage vehicles directly.
5.Crane with electric hoist
5.1 Effective lifting weight 500kg;
5.2 Crane is used to lift the furnace cover for furnace cleaning, maintenance etc.
6.1 With performances of Constant temperature and graphite agitation.
6.2 With 2 sperated tanks, tubes and agitators made of stainless steel material( SUS 316L).
6.3 Used for die cooling and coating;
6.4 Graphite coating is for easier pieces removal and die's temperature control.
6.5 Effective using space: 1124*896mm

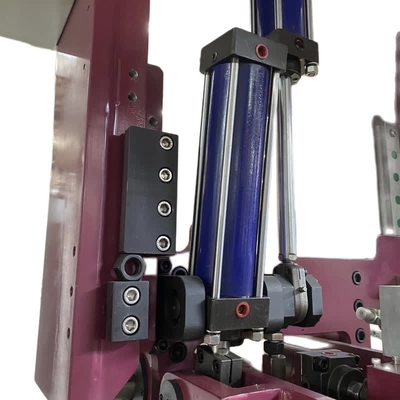

7.Hydraulic and drives system
7.1 Components supplies with internationa high quality brands: SUN,REXROTH,YUKEN etc.
7.2 The components are special used, with performances of high stability, strong protection from contamination, suitable for water-based hydraulic oil operation etc.
7.3 The hydraulic oil ( Ethylene glycol ) works at low temperature, stable quality, not get deteriorated.
7.4 Servo motor driving, no vibration.
8.Furnace casting system
8.1 The pneumatic components supplied with NORGREN,FESTO brands;
8.2 Pressure is with proportional control device;
8.3 With 2- security valves protection design for guarantee high quality of casting and safety.
9.1 The riser tube on furance cover are with ceramic sealings;
9.2 Riser Tube heating method: Medium frequency electricity heating, power 60KW; average power consumption: 7KW;
9.3 Heating time till 900℃ ≈ 90 seconds
9.4Contains water cooling system.
10.Die Cleaning Chamber
10.1shot blasting device (copper powder blasting) for the cleaning of the dies.
10.2 The dies can be moved to cleaning chamber automatically for cleaning process @ heavy oxidized contaminations condition.
