| Brand Name: | DZ |
| Model Number: | 1-Manipulator |
| MOQ: | 1Set |
| Price: | Negotiable |
| Packaging Details: | international standard seaworthy package, wooden cases for low pressure die casting machine. |
| Payment Terms: | L/C, T/T, Western Union |
1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;
2. High capacity ranges 400~450 castings per shift (8hrs);
3.Quick die change flange, 5 mins by munually ;
4. Furnace heating method: gas burner is standard and elctricity for option;
5. Max. die diemension 550*400mm;
6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;
7. Zinc Oxide dust cleaning unit for furnace cleaning;
8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;
9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);
10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)
| 1-Manipulator Low Pressure Die Casting Machine Technical Parameters | ||
| Code | Item | Specifications |
| 1 | Dimensions ( L*W*H) | 5000*4600* 3400 |
| 2 | Machine Power | 125KW |
| 3 | Rated Voltage | 380V |
| 4 | Manipulator Quantity | 1 |
| 5 | Maximum Weight of Die | 180KG |
| 6 | Maximum Dimension of Die | 500*400*250 |
| 7 | Furnace Power | 3*35KW |
| 8 | Furnace Melting Capacity | 350Kg |
| 9 | Furnace Quantity | 1 |
| 10 | Die Cleaning Box Quantity | 1 |
| 11 | Feeder Quantity | 1 |
| 12 | Blackwash Tank Quantity | 1 |
| 13 | Hoist Quantity | 1 |
| 14 | Lift Tube Quantity | 3 |
| 15 | Pneumatic Pressure | 6KG |
| 16 | Water Pressure | 3KG |
| 17 | Maximum Furnace Temperature | 1250℃ |
| 18 | Cooling Water Temperature | 20±2℃ |
| 19 | Maximum Speed of Manipulator | 20m/ Min. |
| 20 | Maximum Die Clamping Stroke | 370mm |
| 21 | Die Bath Angle | 0-90º |
| 22 | Ejector Pin Pressure | 540KG |
| 23 | Ejector Pin Stroke | 40mm |
| 24 | Pouring Pressure | 50-1200bar |
| 25 | Maximum Lift Weight of Hoist | 500kg |

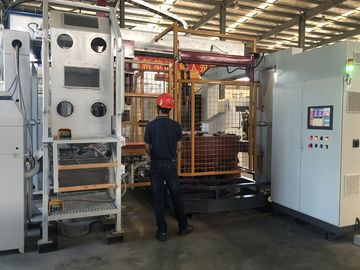

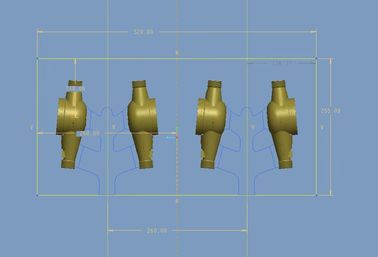

Sample pictures
|
|
