High Precision Low Pressure Die Casting Machine For Brass ISO Approved
| Brand Name: | DZ |
| Model Number: | 1-Manipulators |
| MOQ: | 1unit |
| Price: | Negotiable |
| Packaging Details: | Standard wooden export packing and thermal film cover will be take or as your requirement . |
| Payment Terms: | L/C, T/T, Western Union |
Ergonomic Brass Pressure Die Casting Machine
,125KW Brass Pressure Die Casting Machine
,ISO Approved Brass Die Casting Machine
High Precision Low Pressure Die Casting Machine For Brass ISO Approved
The low-pressure die casting process is the most economical solution for the production of high-quality brass parts, e.g. sanitary fittings, valve housings, water meter housings and building hardware.
Advanages:
1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;
2. High capacity ranges 400~450 castings per shift (8hrs);
3.Quick die change flange, 5 mins by munually ;
4. Furnace heating method: gas burner is standard and elctricity for option;
5. Max. die diemension 550*400mm;
6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;
7. Zinc Oxide dust cleaning unit for furnace cleaning;
8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;
9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);
10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)
Technical Parameters of Brass Die Casting Machine
|
1-Manipulator Low Pressure Die Casting Machine Technical Parameters |
||
|
Code |
Item |
Specifications |
|
1 |
Dimensions ( L*W*H) |
5000*4600* 3400 |
|
2 |
Machine Power |
125KW |
|
3 |
Rated Voltage |
380V |
|
4 |
Manipulator Quantity |
1 |
|
5 |
Maximum Weight of Die |
180KG |
|
6 |
Maximum Dimension of Die |
500*400*250 |
|
7 |
Furnace Power |
3*35KW |
|
8 |
Furnace Melting Capacity |
350Kg |
|
9 |
Furnace Quantity |
1 |
|
10 |
Die Cleaning Box Quantity |
1 |
|
11 |
Feeder Quantity |
1 |
|
12 |
Blackwash Tank Quantity |
1 |
|
13 |
Hoist Quantity |
1 |
|
14 |
Lift Tube Quantity |
3 |
|
15 |
Pneumatic Pressure |
6KG |
|
16 |
Water Pressure |
3KG |
|
17 |
Maximum Furnace Temperature |
1250℃ |
|
18 |
Cooling Water Temperature |
20±2℃ |
|
19 |
Maximum Speed of Manipulator |
20m/ Min. |
|
20 |
Maximum Die Clamping Stroke |
370mm |
|
21 |
Die Bath Angle |
0-90º |
|
22 |
Ejector Pin Pressure |
540KG |
|
23 |
Ejector Pin Stroke |
40mm |
|
24 |
Pouring Pressure |
50-1200bar |
|
25 |
Maximum Lift Weight of Hoist |
500kg |

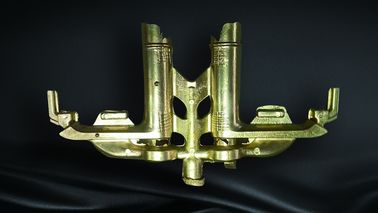

Application
Click the link to view video:
