Name: Metal Plumbing Fittings Gravity Casting Machine
Brand: Xiamen DingZhu Intelligent Equipment Co.,Ltd
SKU: HZ-450
Availability: InStock

Brand Name:	DZ
Model Number:	HZ-450
MOQ:	1set
Price:	Negotiable
Packaging Details:	wood
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China(Mainland)

Certification:

Supply Ability:

30 Set/Sets per Month

Highlight:

Plumbing Fittings Gravity Casting Machine

Metal Plumbing Fittings Casting Machine

Metal Gravity Casting Machine

Product Description

Detail Information
Condition:	New	Warranty:	1year
Name:	Brass Die Casting Machine	Technology:	Gravity Die Casting Technology
Usage:	Foundry Pieces Production	Raw Material:	Brass Copper Zinc Aluminum Steel Iron Alloy
High Light:	Plumbing Fittings Gravity Casting Machine,Mechanical Structure Brass Die Casting Machine ,5.5kw Brass Die Casting Machine

Product Description

Metal Plumbing Fittings Gravity Pouring Casting Machine

This machine is used for the casting of brass and other coppe ralloys poured by gravity into the die, to obtain medium/large size pieces or small size piecesby using multi-cavity dies.
The machine, being a new generation gravity casting machine, is designed taking into consideration operatorsafety and ergonomics.
The main characteristics of this newconcept machine are as follows:
Mechanical structure,which is far morerobust,with all vital parts mounted inaccessible and protected positions.

The dipping tank is an independent unit and can be easily removed ifnecessary. Furthermore during operation they are protected fromsand, grease and oil accidentally falling into them.

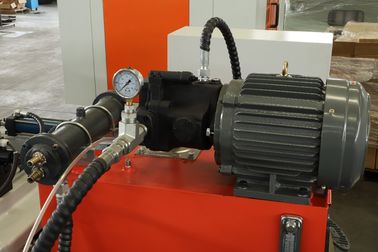

The machine is supplied with avariable displacementpump, allowingto extend the life of the pump and tobe much more silent.
Hydraulic and electric components,cylinders, and valves are also standardfor easy replacemen

Main Technical Specifications

#	Name	Specification
1	Max. Die size	Φ450mm
2	Max. Die working distance	450mm
3	Max. Die Weight	130kg
4	Max. Clamping distance	≦250mm
5	Hydraulic Motor	5Hp,6 degree
6	Hydraulic Pressure	4～6Kpa
7	Side Casting Angle	0°～90°
8	Direct Casting Angle	0°～110°
9	Stirring motor	0.75kw,6 degree ×2
10	Cooling tank	850kg
11	Hydraulic oil volume	163L
12	Machine Power	5.5kw
13	Machine Weight	1750kg
14	Dimension(LXWXH)	2250mm×2160mm×1560mm

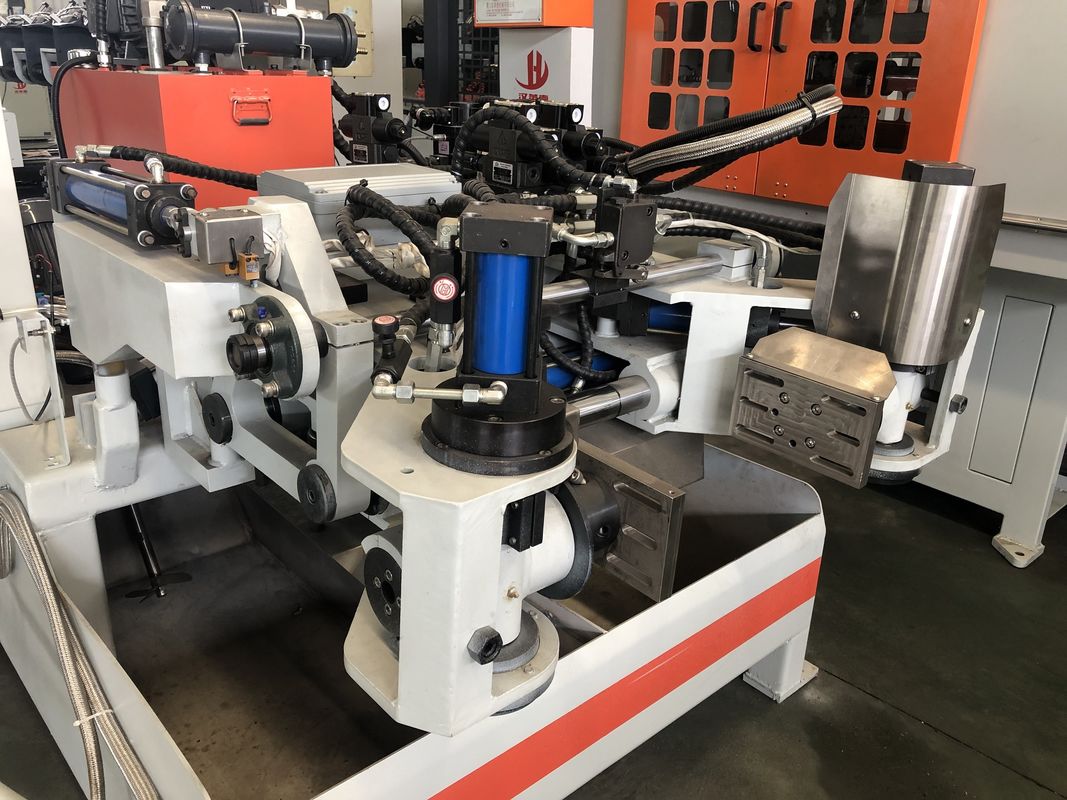

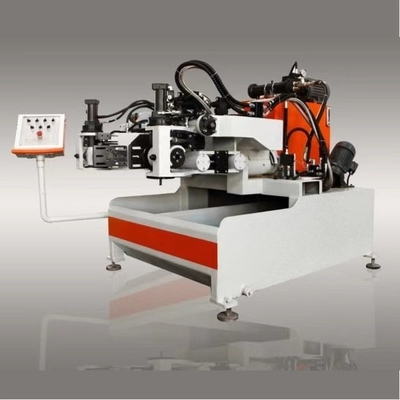

Metal Plumbing Fittings Gravity Casting Machine 0

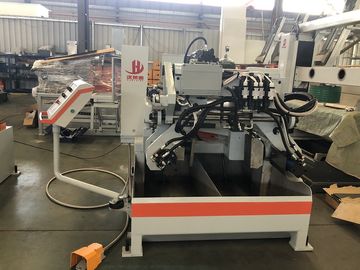

Metal Plumbing Fittings Gravity Casting Machine 3

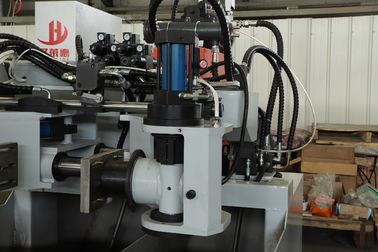

Metal Plumbing Fittings Gravity Casting Machine 4

Click the link to view video:

https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
