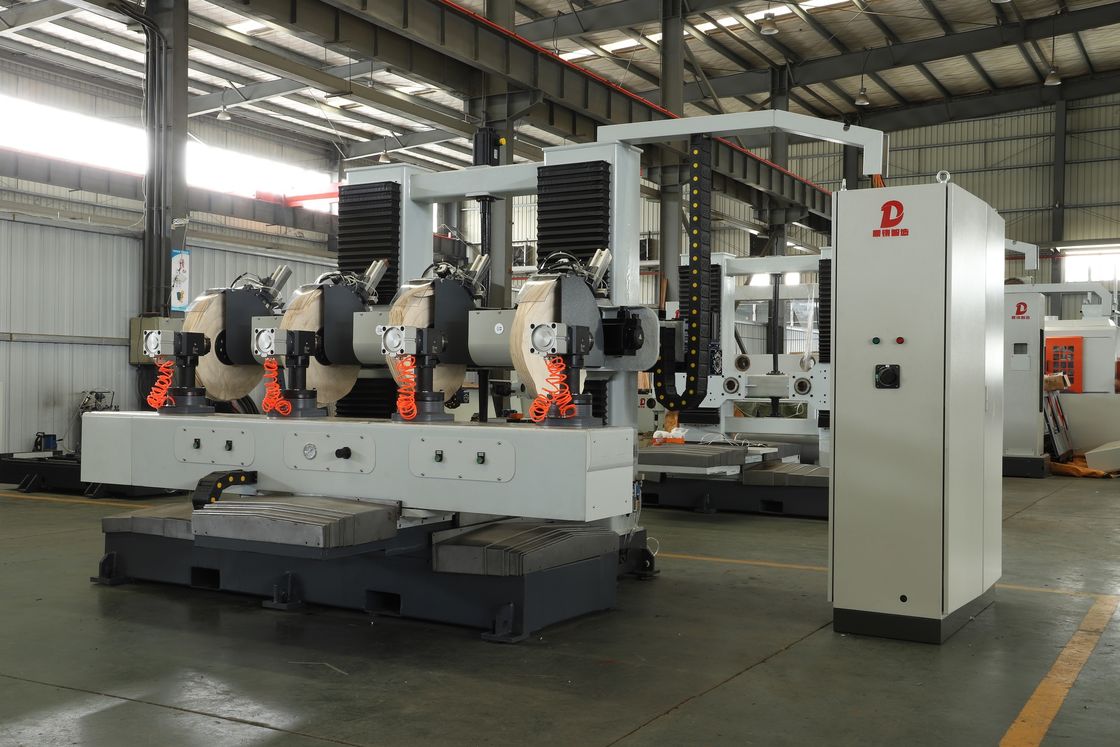

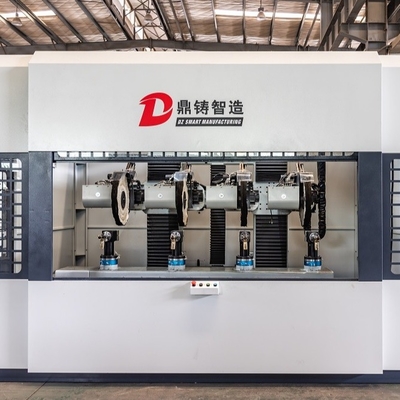

High Speed Metal Surface Polishing Machine Precision Polishing
| Brand Name: | DZ |
| Model Number: | NC64 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Metal Surface Polishing Machine 380V
,600mm Wheel Surface Polishing Machine
|
Detail Information |
|||
| Z-axis Travel: | 700mm | Max. Diameter Of Polishing Wheel: | 600mm |
|---|---|---|---|
| Z-axis Max. Speed: | 20m/min | Y-axis Max. Speed: | 20m/min |
| U-axis Travel: | +90°~-60° | U-axis Max. Speed: | 30°/sec. |
| V-axis Travel: | ±720° | X-axis Travel: | 1000mm |
| High Light: |
High Speed CNC Polishing Machine, ISO Metal Surface Polishing Machine |
||
Product Description:
The CNC Polishing Machine is designed to provide high precision and quality aluminum polishing. It is equipped with advanced processing and control systems which allow for fast and efficient polishing of aluminum surfaces. The machine can be used for a variety of applications, from grinding to polishing of aluminum parts. It is also suitable for a wide range of industries, such as aerospace, automotive, electronics, and medical.
Features:
- Product Name: CNC Polishing Machine
- Uniform polishing quality without deformation of the processed parts
- Full auto waxing system
- Quick replacement of the fixtures
- Quick and easy programming.
Technical Parameters:
| code | Item | Specifications |
| 1 | Dimensions (L*W*H) | 4400*3400*2900mm |
| 2 | Machine Power | 35KW |
| 3 | Rated Voltage | 380V 50Hz |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1000 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±90° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |
Applications:
DZ NC64 CNC Polishing Machine is a high quality industrial polishing machine with CE and ISO certification. It is an automatic polishing machine, capable of polishing aluminum and other materials. It is equipped with a W-axis travel of ±720°, a min. diameter of 400mm and a max. diameter of 600mm. Its X-axis max. speed is 20m/min and U-axis max. speed is 30°/sec. It is an ideal choice for aluminum polishing and other industrial applications.
Packing and Shipping:
Packaging and Shipping of the CNC Polishing Machine:
The CNC Polishing Machine will be securely packed in a cardboard box, and reinforced with bubble wrap for additional protection. It will then be shipped with registered mail, with a tracking code provided for customers to track the progress of their order.
FAQ:
- Q1: What is the Brand Name of this CNC Polishing Machine?
A1: The Brand Name for this CNC Polishing Machine is DZ. - Q2: What is the Model Number of this CNC Polishing Machine?
A2: The Model Number of this CNC Polishing Machine is NC64. - Q3: Where is this CNC Polishing Machine made?
A3: This CNC Polishing Machine is made in China. - Q4: Does this CNC Polishing Machine have a Certification?
A4: Yes, this CNC Polishing Machine has a CE ISO Certification. - Q5: What is the purpose of this CNC Polishing Machine?
A5: This CNC Polishing Machine is used for polishing and finishing the surface of various materials.
