Industrial Surface Grinder Processing Automatic Grinding And Polishing Machine For Mobile Case Knife
| Brand Name: | DZ |
| Model Number: | NC-62 |
| MOQ: | 1 set |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Surface Grinder Polishing Machine
,Mobile Case CNC Polishing Machine
,Industrial CNC Surface Grinder
| Detail Information | |||
| Weight: | 6000KG | Voltage: | 380V/50Hz |
|---|---|---|---|
| Condition: | 100%New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation |
| Application: | Machining, Deburring, Grinding, Polishing | Control System: | PLC |
| Warranty: | 1 Year | Function: | Finishing ,buffing |
| High Light: |
PLC Control Sheet Metal Polishing Machine,380V Sheet Metal Polishing Machine,Stainless Steel Sink Polishing Machine |
||
Product Description:

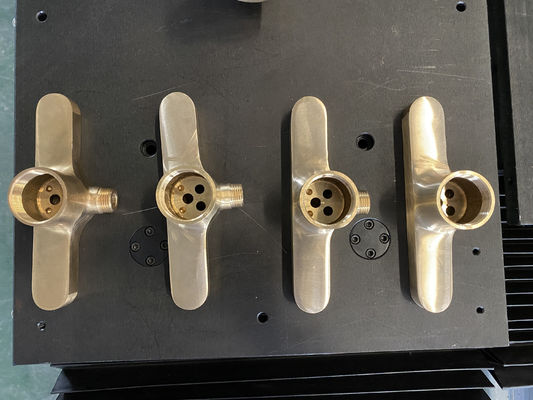

Stainless Steel Sink Industrial Dish Head Automatic Sheet Metal Polish Machine Brass
| Spindle motor power | 4*5.5KW |
| Polishing wheel size | 400mm-600mm |
| Dimensions | 5300*3400*3000mm |
| Polishing wheel maximum size | 600mm |
| Polishing wheel minimum size | 400mm |
| X-axis travel | 1000 |
| Y-axis travel | 700 |
| Z-axis travel | 700 |
| Maximum speed of the XYZ axis | 20m/min |
CHARACTERISTIC

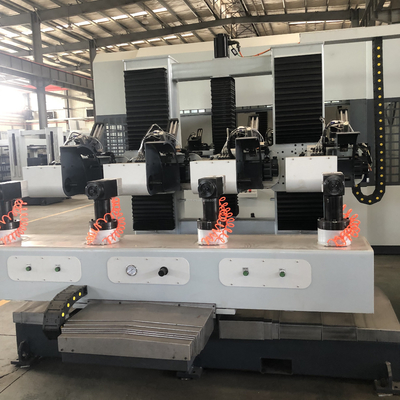

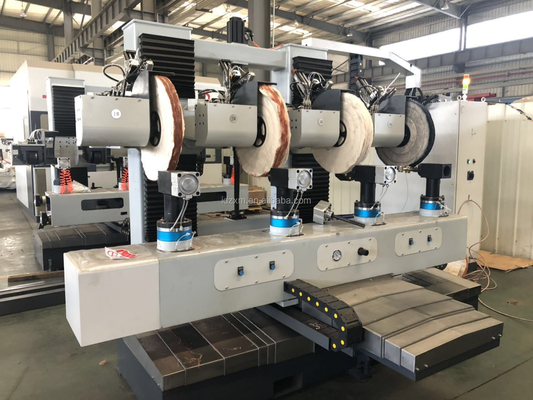

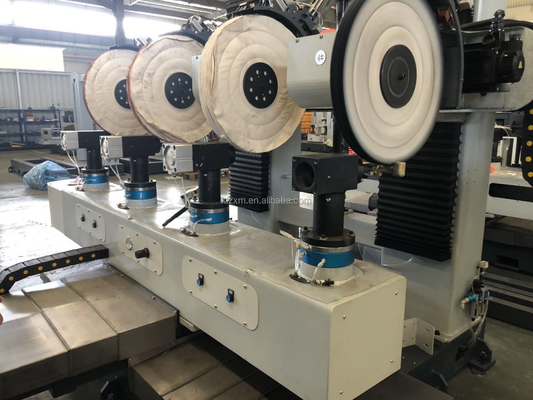

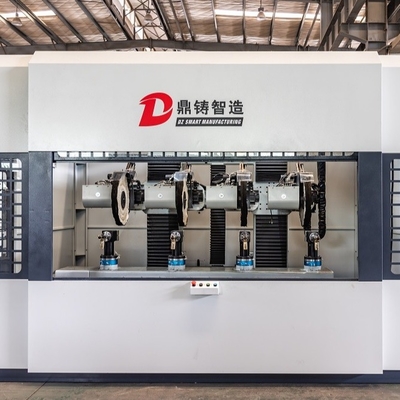

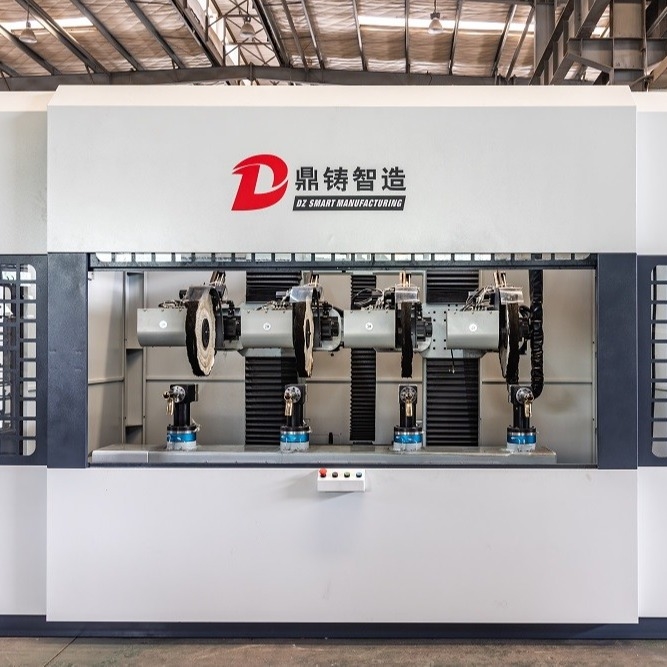

The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 Axis rotary system; Multiple stations simultaneous operation ensures high flexibility and high product efficiency.
The control system adopts PROMAX motion control technology from Italy, with stable performance and high control accuracy.
Programming method: teaching programming, with portable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-set parameters program.
Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque has become smaller and automatically the compensation in all directions.
Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation.
Program setting of add polishing wax: free setting of wax spraying time and frequency according to the characteristics of product choice of slid compound or liquid compound.
Fully digital control, it can store 50 programs. Programs can be saved and recalled at any time.
CN/EN language display on Touch Panel. It is to set all parameters for an easy operation; fault codes display and alarm pages for quick troubles shooting and repair.
ADVANTAGES

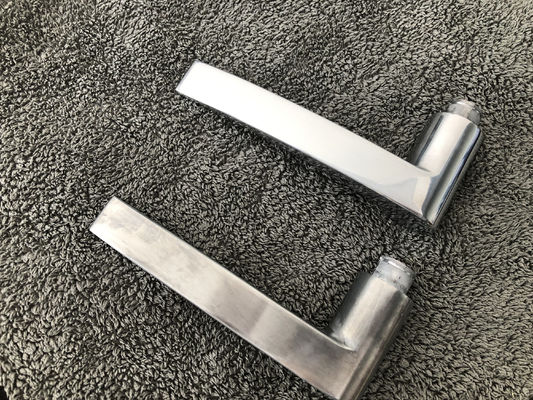

- Uniform polishing quality without deformation of the processed parts.
- High production. Simultaneous polishing of two equal parts in each polishing cycle.
- Flexible production. Change of series in the minimum time. The time invested in the preparation of the machine for changing the type of part to polish is about 10 minutes.
- Quick replacement of the fixtures.
- Quick replacement of the polishing mops.
- Cost-reduction in the amount of fixtures.
- Important reduction in mops and polishing compounds consumption.
- Polishing system avoiding excessive temperature of the parts during the working process.
- Quick and easy programming. Interactive Teach System.
- High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.
-
Packing and Shipping:
Packaging and Shipping for Automatic Polishing MachineThe Automatic Polishing Machine is carefully packaged in a durable cardboard box to ensure it is delivered in perfect condition.
The box is then taped shut and labeled with the necessary shipping details, such as the shipping address, product weight, and dimensions.
Once the package is prepared, it is shipped via a reliable carrier, such as UPS or FedEx, to the destination.
