High Precision CNC Polishing Machine for Perfect Surface Finishing

Brand Name:	DZ
Model Number:	NC64
MOQ:	1 set
Price:	Negotiable
Packaging Details:	wood
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ISO

V-axis Travel:

±720°

Z-axis Max. Speed:

20m/min

X-axis Travel:

1000mm

Y-axis Travel:

900mm

X-axis Max. Speed:

20m/min

Machine Power:

V-axis Max. Speed:

30°/sec.

Z-axis Travel:

700mm

Supply Ability:

3 sets per month

Highlight:

Surface Finishing CNC Polishing Machine

50Hz CNC Polishing Machine

35KW Surface Polishing Machine

Product Description

Product Description:

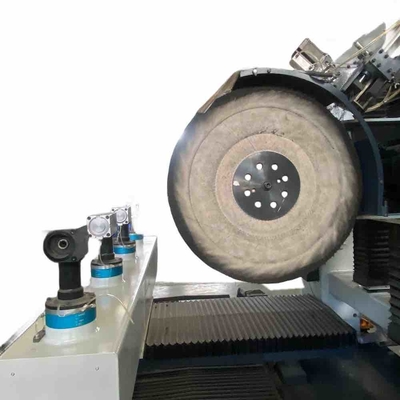

High Precision CNC Polishing Machine for Perfect Surface Finishing 0

Features:

Product Name: CNC Polishing Machine
Dimensions(L*W*H): 4400*3400*2900mm
Specialized for Aluminum Polishing
Highly efficient Surface Polishing
Excellent Quality for Metal Surface Polishing

Technical Parameters:

Code	Item	Specifications
1	Dimensions (LWH)	440034002900mm
2	Machine Power	35KW
3	Rated Voltage	380V 50Hz
4	Max. Diameter of polishing wheel	600mm
5	Min. Diameter of polishing wheel	400mm
6	X-Axis travel (mm)	1000
7	Y-Axis travel (mm)	900
8	Z-Axis travel (mm)	700
9	U-Axis travel (mm)	±90°
10	V-Axis travel (mm)	±360°
11	W-Axis travel (mm)	±360°
12	Max.speed X axis	20m/min
13	Max.speed Y axis	20m/min
14	Max.speed Z axis	20m/min
15	Max.speed U axis	30°/sec.
16	Max.speed V axis	30°/sec.
17	Max.speed W axis	30°/sec.

Applications:

The DZ NC64 CNC Polishing Machine is a highly advanced automatic polishing machine designed for industrial purposes. It is CE and ISO certified and has a Z-axis travel of 700mm, a V-axis travel of ±720°, and an X-axis max speed of 20m/min. The machine is equipped with a minimum diameter of 400mm and a maximum diameter of 600mm for the polishing wheel.

Packing and Shipping:

Packaging and Shipping of the CNC Polishing Machine:

To ensure the safe and damage-free arrival of the CNC Polishing Machine, we will package the machine in a wooden crate, with foam and other protective materials inside. The machine will also be secured to the crate with straps.

We will use a reliable shipping company to ensure the safe and timely arrival of the machine. We will also provide customers with a tracking number and regular updates on the shipping status.

FAQ:

Q: What is the brand name of the CNC Polishing Machine?: A: The brand name of the CNC Polishing Machine is DZ.
Q: What is the model number of the CNC Polishing Machine?: A: The model number of the CNC Polishing Machine is NC64.
Q: Where is the CNC Polishing Machine manufactured?: A: The CNC Polishing Machine is manufactured in China.
Q: Does the CNC Polishing Machine have any certifications?: A: Yes, the CNC Polishing Machine has CE and ISO certifications.
Q: What kind of materials can be processed with the CNC Polishing Machine?: A: The CNC Polishing Machine can process various materials.
